Web Page Item
Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
Play tone during DTMF Activation
Activate Relay During Ring
Activate Relay During Night Ring
Activate Relay While Call Active
Activate Relay on Button Press
Relay on Button Press Duration
Clock Settings
Set Time with NTP Server on boot
NTP Server
Posix Timezone String
Periodically sync time with server
Time update period (in hours)
Current Time
Operations Guide

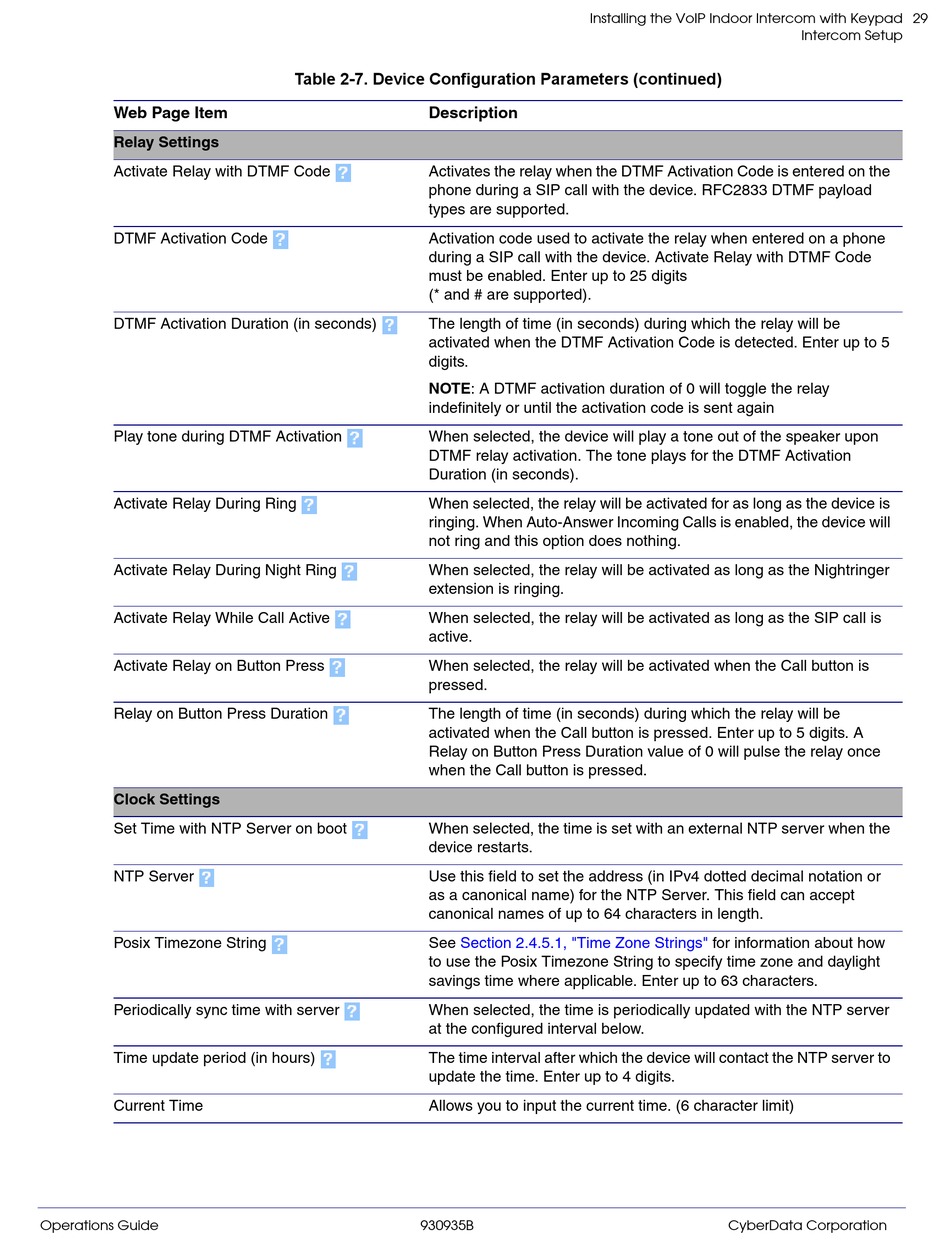

Table 2-7. Device Configuration Parameters (continued)
Description
Activates the relay when the DTMF Activation Code is entered on the
phone during a SIP call with the device. RFC2833 DTMF payload
types are supported.
Activation code used to activate the relay when entered on a phone
during a SIP call with the device. Activate Relay with DTMF Code
must be enabled. Enter up to 25 digits 
(* and # are supported).
The length of time (in seconds) during which the relay will be
activated when the DTMF Activation Code is detected. Enter up to 5
digits.
NOTE: A DTMF activation duration of 0 will toggle the relay
indefinitely or until the activation code is sent again
When selected, the device will play a tone out of the speaker upon
DTMF relay activation. The tone plays for the DTMF Activation
Duration (in seconds).
When selected, the relay will be activated for as long as the device is
ringing. When Auto-Answer Incoming Calls is enabled, the device will
not ring and this option does nothing.
When selected, the relay will be activated as long as the Nightringer
extension is ringing.
When selected, the relay will be activated as long as the SIP call is
active.
When selected, the relay will be activated when the Call button is
pressed.
The length of time (in seconds) during which the relay will be
activated when the Call button is pressed. Enter up to 5 digits. A
Relay on Button Press Duration value of 0 will pulse the relay once
when the Call button is pressed.
When selected, the time is set with an external NTP server when the
device restarts.
Use this field to set the address (in IPv4 dotted decimal notation or
as a canonical name) for the NTP Server. This field can accept
canonical names of up to 64 characters in length.
See Section 2.4.5.1, "Time Zone Strings"
to use the Posix Timezone String to specify time zone and daylight
savings time where applicable. Enter up to 63 characters.
When selected, the time is periodically updated with the NTP server
at the configured interval below.
The time interval after which the device will contact the NTP server to
update the time. Enter up to 4 digits.
Allows you to input the current time. (6 character limit)
