Relay Status
Door
Relay
Note
Operations Guide
Table 2-21. DSR Configuration Parameters (continued)
You must click on the Save button and then the Reboot button for the changes to take
effect.

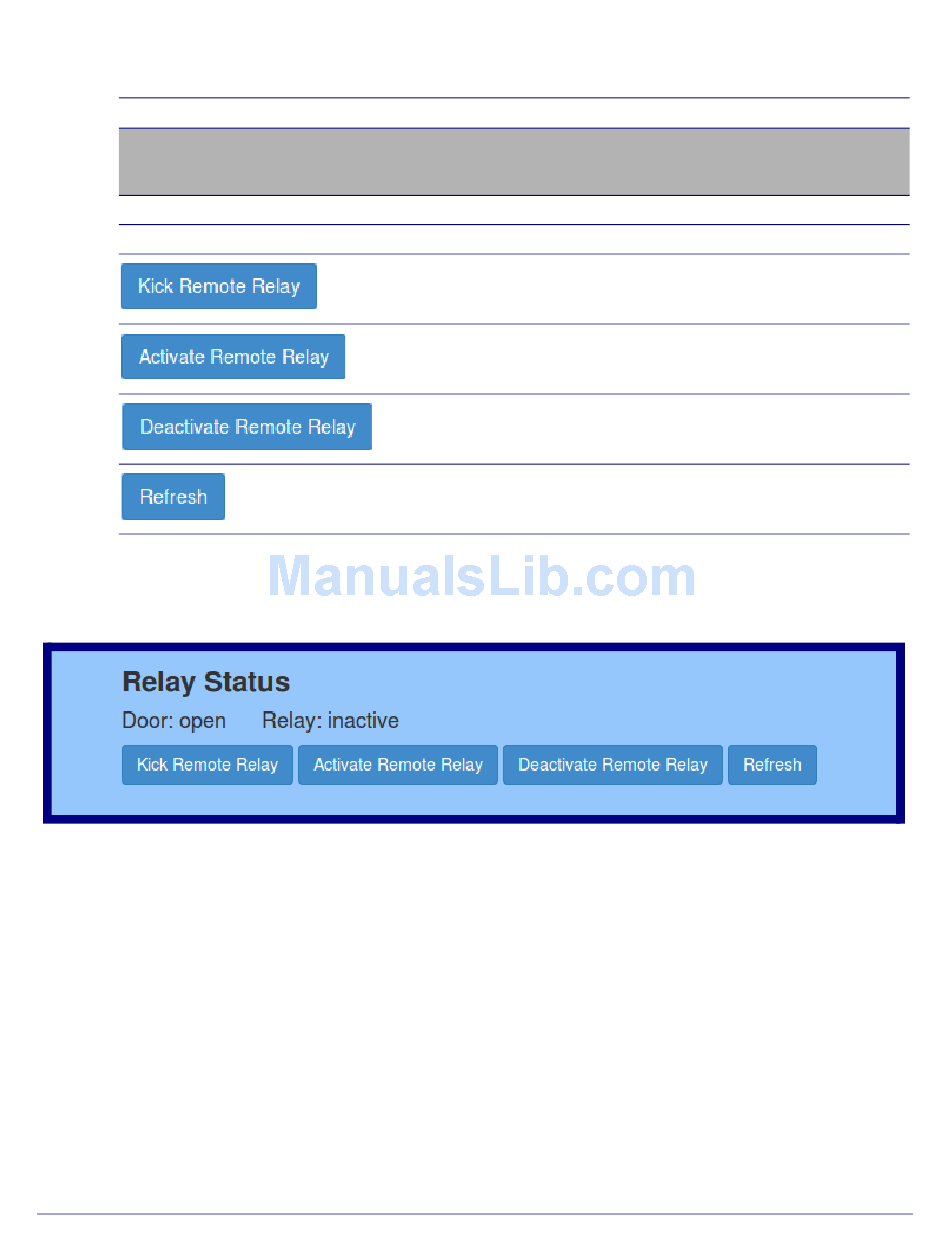

Figure 2-34. Relay Status Section
930935B
Installing the VoIP Indoor Intercom with Keypad
Description
Note: The Relay Status section and settings
appear on the webpage when there is an associated door strike
relay.
Shows the status of the door.
Shows the status of the remote relay.
Click on the Kick Remote Relay button to activate the remote
relay for a specified time. The time is equal to the DTMF
timeout.
Click on the Activate Remote Relay button to activate the
remote relay until the Deactivate Remote Relay button is
pressed.
Click on the Deactivate Remote Relay button to deactivate the
remote relay.
Click on the Refresh button to refresh the web page and
accurately display the status of the remote relay (active/inactive)
and door (open/closed).
Intercom Setup
(Figure 2-34) only
