2.3.4 Identifying the Connector Locations and Functions

See the following figures and tables to identify the board connector locations and functions.
J1
Operations Guide

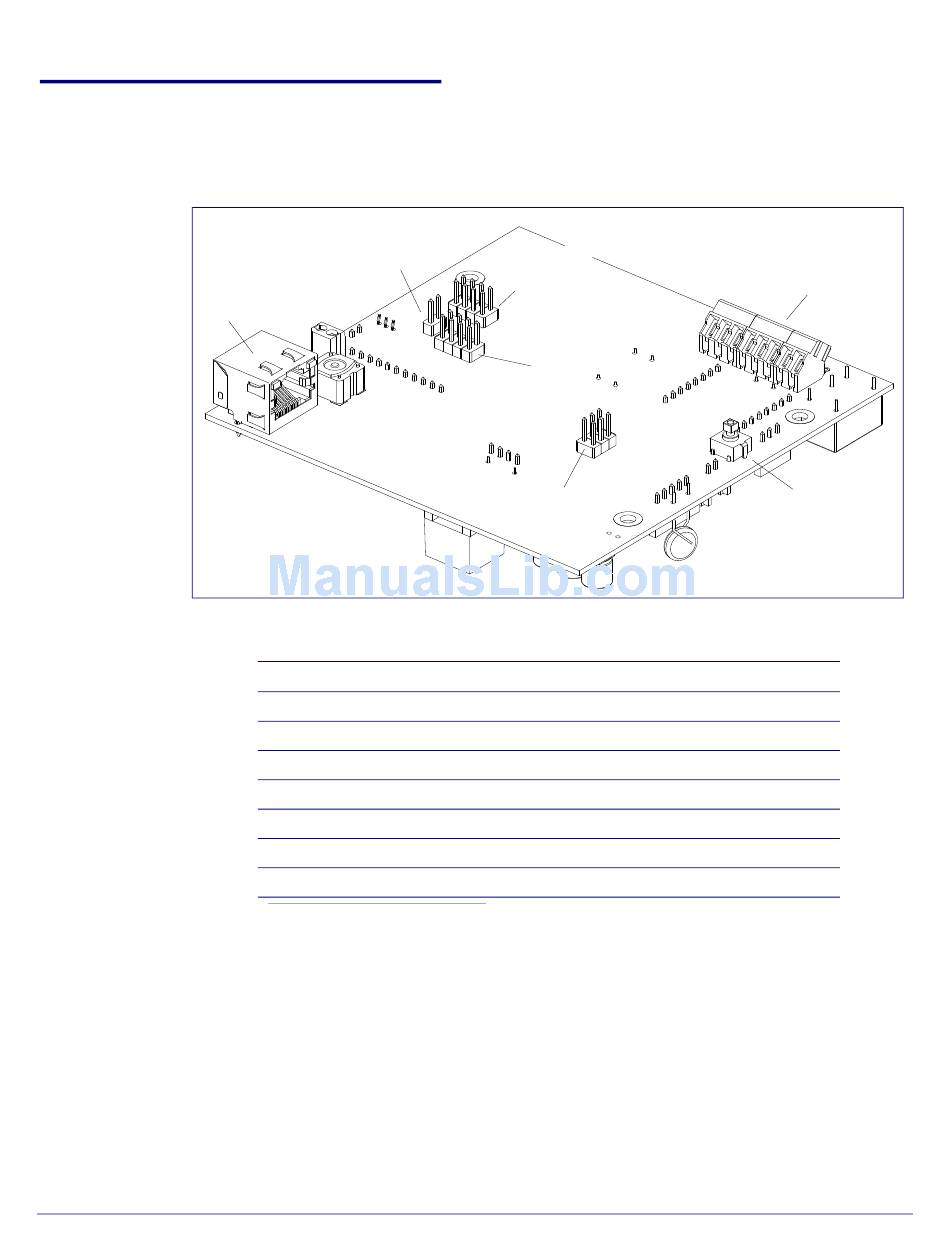

Figure 2-10. Connector Locations
JP1
Table 2-2. Connector Functions
Connector Function
J1 PoE Network Connection (RJ-45 ethernet)
J3 Terminal Block (see
J4 Console Port (Factory Use Only)
J5 JTAG (Factory Use Only)
J12 Reserved (Factory Use Only)
JP1 Reset jumper
SW1 See Section 2.3.6, "RTFM Button"
a.Do not install a jumper. Momentary short to reset. Permanent installation
of a jumper would prevent the board from running all together.
