Web Page Item
Security Code 7
Security Code 8
Security Code 9
Activate DSR
Relay Activation Timeout
Play Tone While Relay Active
Allow Telephone Dialout
Call Button
ID
Security Code (0 through 9)
Speed Dial Settings
Speed Dial Timeout
Keypad 1
Keypad 2
Keypad 3
Keypad 4
Keypad 5
Keypad 6
Keypad 7
Keypad 8
Keypad 9
Keypad 0
Keypad *
Keypad #
Call Button
Operations Guide

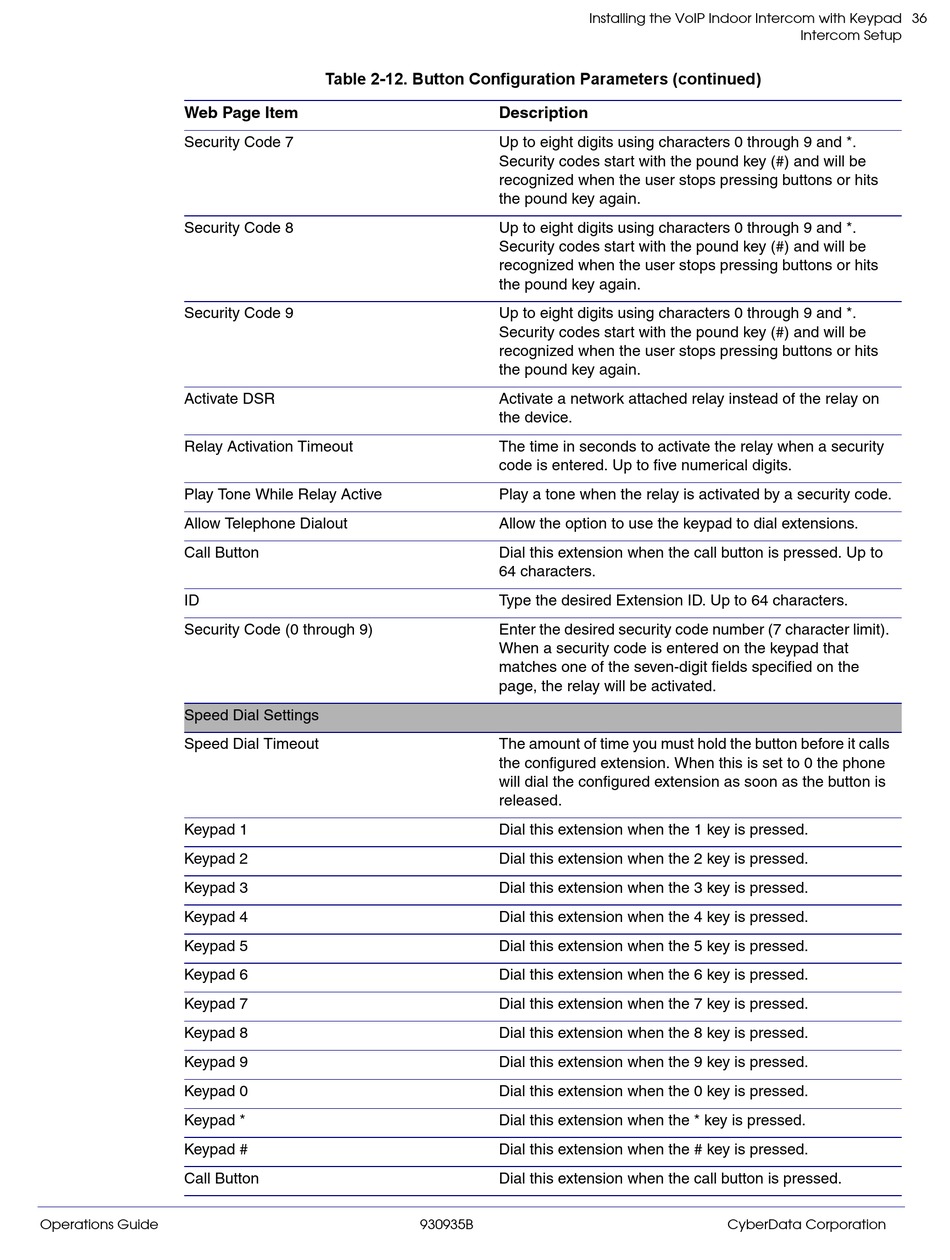

Table 2-12. Button Configuration Parameters (continued)
Description
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Activate a network attached relay instead of the relay on
the device.
The time in seconds to activate the relay when a security
code is entered. Up to five numerical digits.
Play a tone when the relay is activated by a security code.
Allow the option to use the keypad to dial extensions.
Dial this extension when the call button is pressed. Up to
64 characters.
Type the desired Extension ID. Up to 64 characters.
Enter the desired security code number (7 character limit).
When a security code is entered on the keypad that
matches one of the seven-digit fields specified on the
page, the relay will be activated.
The amount of time you must hold the button before it calls
the configured extension. When this is set to 0 the phone
will dial the configured extension as soon as the button is
released.
Dial this extension when the 1 key is pressed.
Dial this extension when the 2 key is pressed.
Dial this extension when the 3 key is pressed.
Dial this extension when the 4 key is pressed.
Dial this extension when the 5 key is pressed.
Dial this extension when the 6 key is pressed.
Dial this extension when the 7 key is pressed.
Dial this extension when the 8 key is pressed.
Dial this extension when the 9 key is pressed.
Dial this extension when the 0 key is pressed.
Dial this extension when the * key is pressed.
Dial this extension when the # key is pressed.
Dial this extension when the call button is pressed.
930935B
Installing the VoIP Indoor Intercom with Keypad
CyberData Corporation
36
Intercom Setup
