2. On the DSR page, enter values for the parameters indicated in
Note
Web Page Item
Remote Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
Activate Remote Relay During Ring
Activate Remote Relay During Night Ring
Activate Remote Relay While Call Active
Activate Remote Relay on Button Press
Remote Relay on Button Press Duration
(in seconds)
Listen Port for Remote Relay Status
Remote Door Sensor Settings
Door Open Timeout (in seconds)
Flash Button LED
Activate Local Relay
Play Audio Locally
Operations Guide
The question mark icon (
after the Toggle Help button is pressed

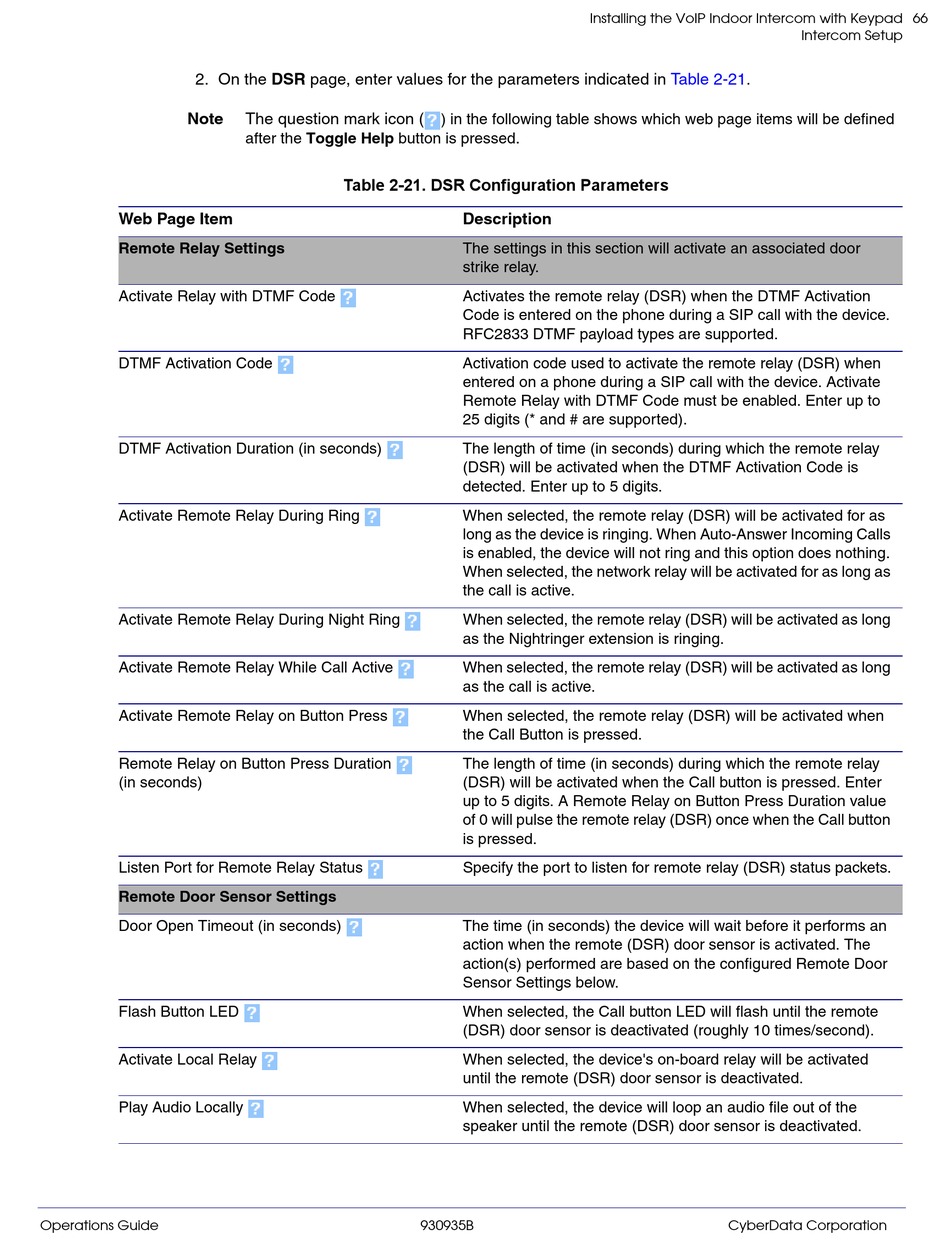

Table 2-21. DSR Configuration Parameters

930935B
Installing the VoIP Indoor Intercom with Keypad
) in the following table shows which web page items will be defined
.
Description
The settings in this section will activate an associated door
strike relay.
Activates the remote relay (DSR) when the DTMF Activation
Code is entered on the phone during a SIP call with the device.
RFC2833 DTMF payload types are supported.
Activation code used to activate the remote relay (DSR) when
entered on a phone during a SIP call with the device. Activate
Remote Relay with DTMF Code must be enabled. Enter up to
25 digits (* and # are supported).
The length of time (in seconds) during which the remote relay
(DSR) will be activated when the DTMF Activation Code is
detected. Enter up to 5 digits.
When selected, the remote relay (DSR) will be activated for as
long as the device is ringing. When Auto-Answer Incoming Calls
is enabled, the device will not ring and this option does nothing.
When selected, the network relay will be activated for as long as
the call is active.
When selected, the remote relay (DSR) will be activated as long
as the Nightringer extension is ringing.
When selected, the remote relay (DSR) will be activated as long
as the call is active.
When selected, the remote relay (DSR) will be activated when
the Call Button is pressed.
The length of time (in seconds) during which the remote relay
(DSR) will be activated when the Call button is pressed. Enter
up to 5 digits. A Remote Relay on Button Press Duration value
of 0 will pulse the remote relay (DSR) once when the Call button
is pressed.
Specify the port to listen for remote relay (DSR) status packets.
The time (in seconds) the device will wait before it performs an
action when the remote (DSR) door sensor is activated. The
action(s) performed are based on the configured Remote Door
Sensor Settings below.
When selected, the Call button LED will flash until the remote
(DSR) door sensor is deactivated (roughly 10 times/second).
When selected, the device's on-board relay will be activated
until the remote (DSR) door sensor is deactivated.
When selected, the device will loop an audio file out of the
speaker until the remote (DSR) door sensor is deactivated.
