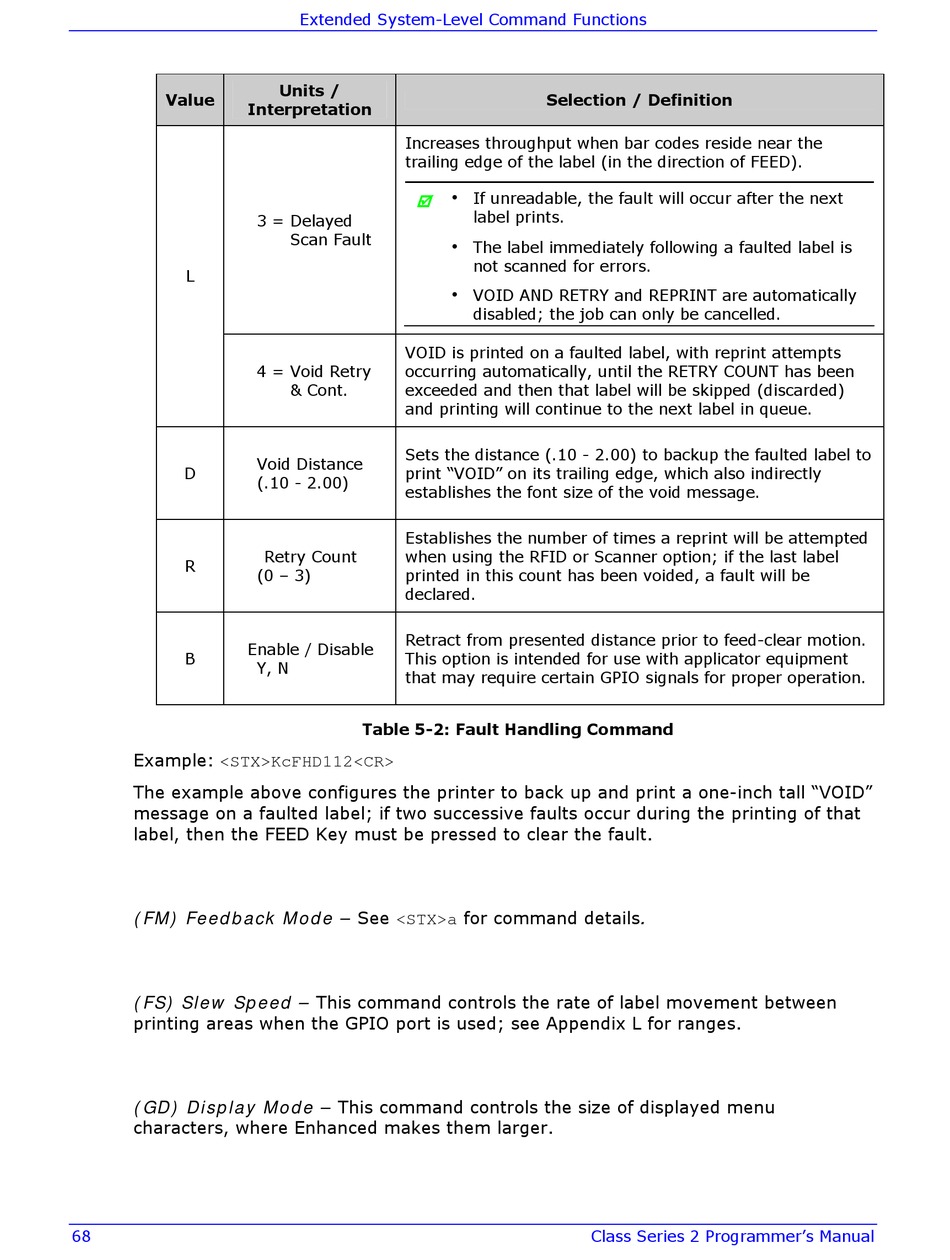

Datamax E-Class Mark II Programmer's Manual page 80

Value
Interpretation
L
D
R
Enable / Disable
B
Example: <STX>KcFHD112<CR>
The example above configures the printer to back up and print a one-inch tall "VOID"
message on a faulted label; if two successive faults occur during the printing of that
label, then the FEED Key must be pressed to clear the fault.
(FM) Feedback Mode – See <STX>a for command details.
(FS) Slew Speed – This command controls the rate of label movement between
printing areas when the GPIO port is used; see Appendix L for ranges.
(GD) Display Mode – This command controls the size of displayed menu
characters, where Enhanced makes them larger.
68
Extended System-Level Command Functions
Units /
Increases throughput when bar codes reside near the
trailing edge of the label (in the direction of FEED).

3 = Delayed
Scan Fault
VOID is printed on a faulted label, with reprint attempts
4 = Void Retry occurring automatically, until the RETRY COUNT has been
& Cont. exceeded and then that label will be skipped (discarded)
and printing will continue to the next label in queue.
Sets the distance (.10 - 2.00) to backup the faulted label to
Void Distance
print "VOID" on its trailing edge, which also indirectly
(.10 - 2.00)
establishes the font size of the void message.
Establishes the number of times a reprint will be attempted
Retry Count when using the RFID or Scanner option; if the last label
(0 – 3) printed in this count has been voided, a fault will be
declared.
Retract from presented distance prior to feed-clear motion.
This option is intended for use with applicator equipment
Y, N
that may require certain GPIO signals for proper operation.
Table 5-2: Fault Handling Command
Selection / Definition
•
If unreadable, the fault will occur after the next
label prints.
•
The label immediately following a faulted label is
not scanned for errors.
•
VOID AND RETRY and REPRINT are automatically
disabled; the job can only be cancelled.
Class Series 2 Programmer's Manual
