Rotation (must be 1)
1
Graphic field
X
Multiplier (must be 1)
1
Multiplier (must be 1)
1
Fill pattern number
fff
Row of the center point
rrrr
Pattern Number
Class Series 2 Programmer's Manual
Generating Label Formats

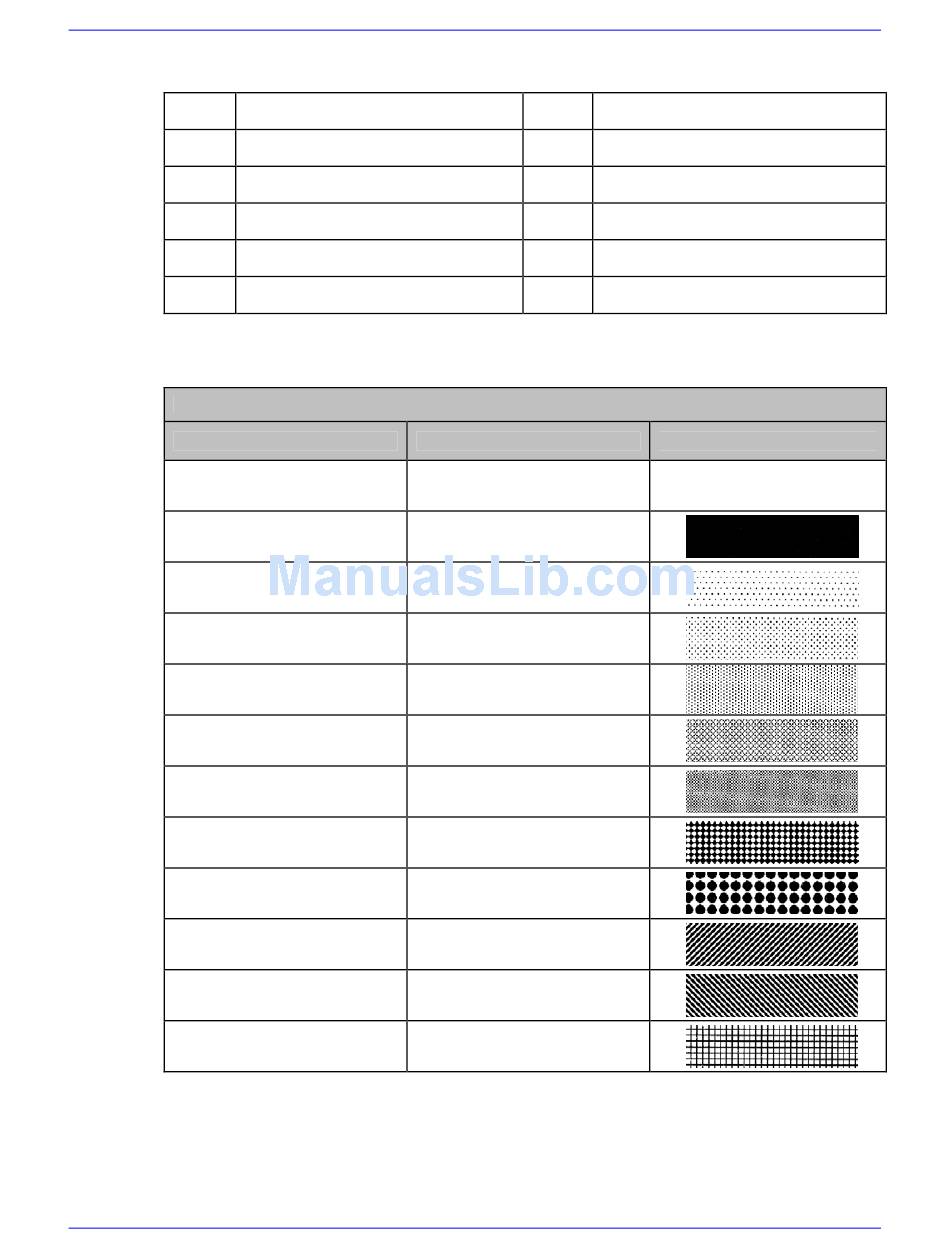

Table 8-14: Circle Record Structure
0
1
2
3
4
5
6
7
8
Right Diagonal Lines
9
Left Diagonal Lines
10
11
Table 8-15: Fill Patterns
Column of the center point
cccc
Circle ID (Fixed Value)
C
Fixed Value (001)
ppp
Fixed Value (0001)
bbbb
Radius of the circle
rrrr
Termination character
<CR>
Fill Patterns
Description
No Pattern
Solid Black
6% Black
12% Black
25% Black
38% Black
50% Black
Diamonds
Circles
Grid
Example
