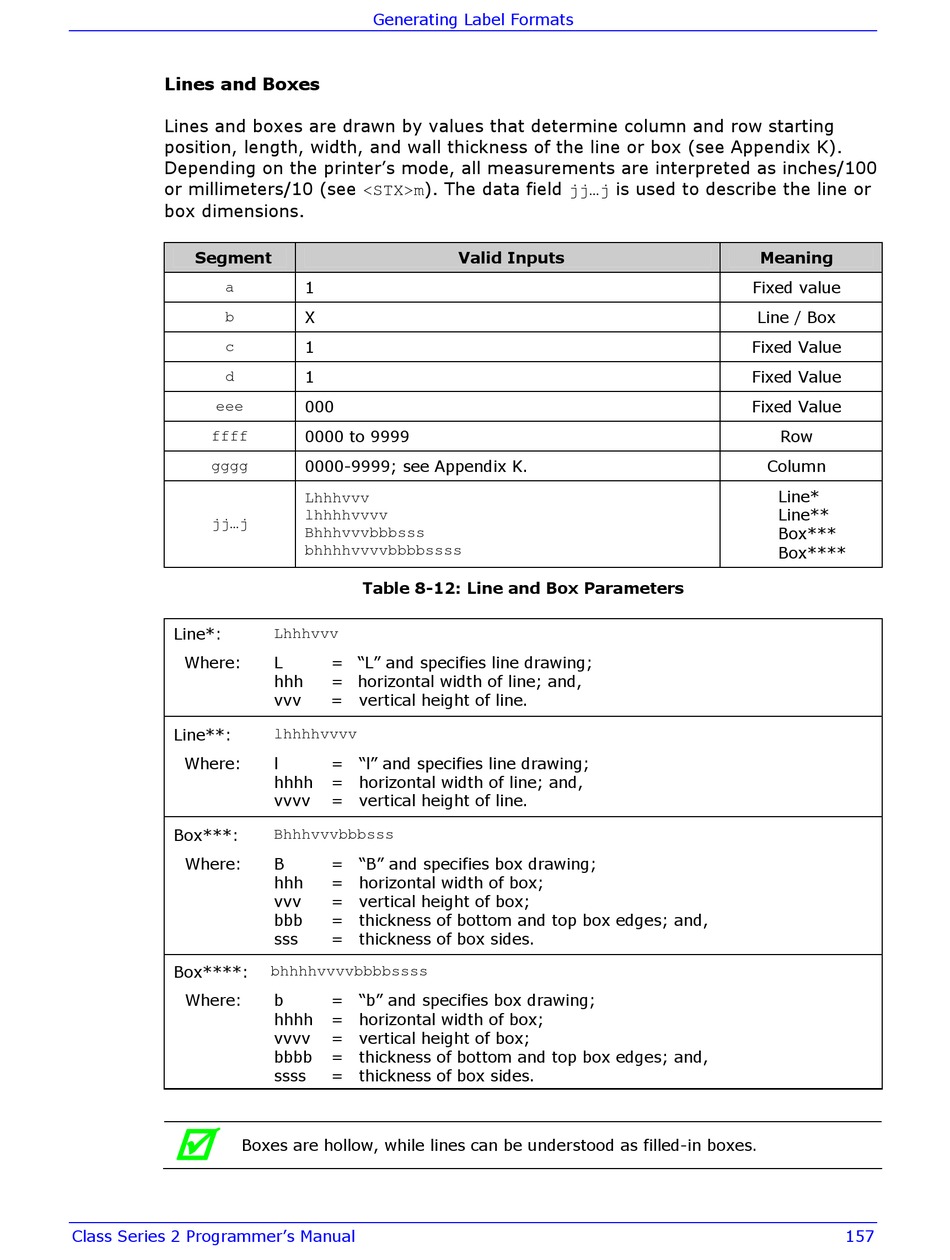

Datamax E-Class Mark II Programmer's Manual page 169

Lines and Boxes
Lines and boxes are drawn by values that determine column and row starting
position, length, width, and wall thickness of the line or box (see Appendix K).
Depending on the printer's mode, all measurements are interpreted as inches/100
or millimeters/10 (see <STX>m). The data field jj...j is used to describe the line or
box dimensions.
Segment
a
b
c
d
eee
ffff
gggg
jj...j
Line*:
Where:
Line**:
Where:
Box***:
Where:
Box****:
Where:

Boxes are hollow, while lines can be understood as filled-in boxes.
Class Series 2 Programmer's Manual
Generating Label Formats
1
X
1
1
000
0000 to 9999
0000-9999; see Appendix K.
Lhhhvvv
lhhhhvvvv
Bhhhvvvbbbsss
bhhhhvvvvbbbbssss
Table 8-12: Line and Box Parameters
Lhhhvvv
L = "L" and specifies line drawing;
hhh = horizontal width of line; and,
vvv = vertical height of line.
lhhhhvvvv
l = "l" and specifies line drawing;
hhhh = horizontal width of line; and,
vvvv = vertical height of line.
Bhhhvvvbbbsss
B = "B" and specifies box drawing;
hhh = horizontal width of box;
vvv = vertical height of box;
bbb = thickness of bottom and top box edges; and,
sss = thickness of box sides.
bhhhhvvvvbbbbssss
b = "b" and specifies box drawing;
hhhh = horizontal width of box;
vvvv = vertical height of box;
bbbb = thickness of bottom and top box edges; and,
ssss = thickness of box sides.
Valid Inputs Meaning
Fixed value
Line / Box
Fixed Value
Fixed Value
Fixed Value
Row
Column
Line*
Line**
Box***
Box****
157
