Operation, cont'd

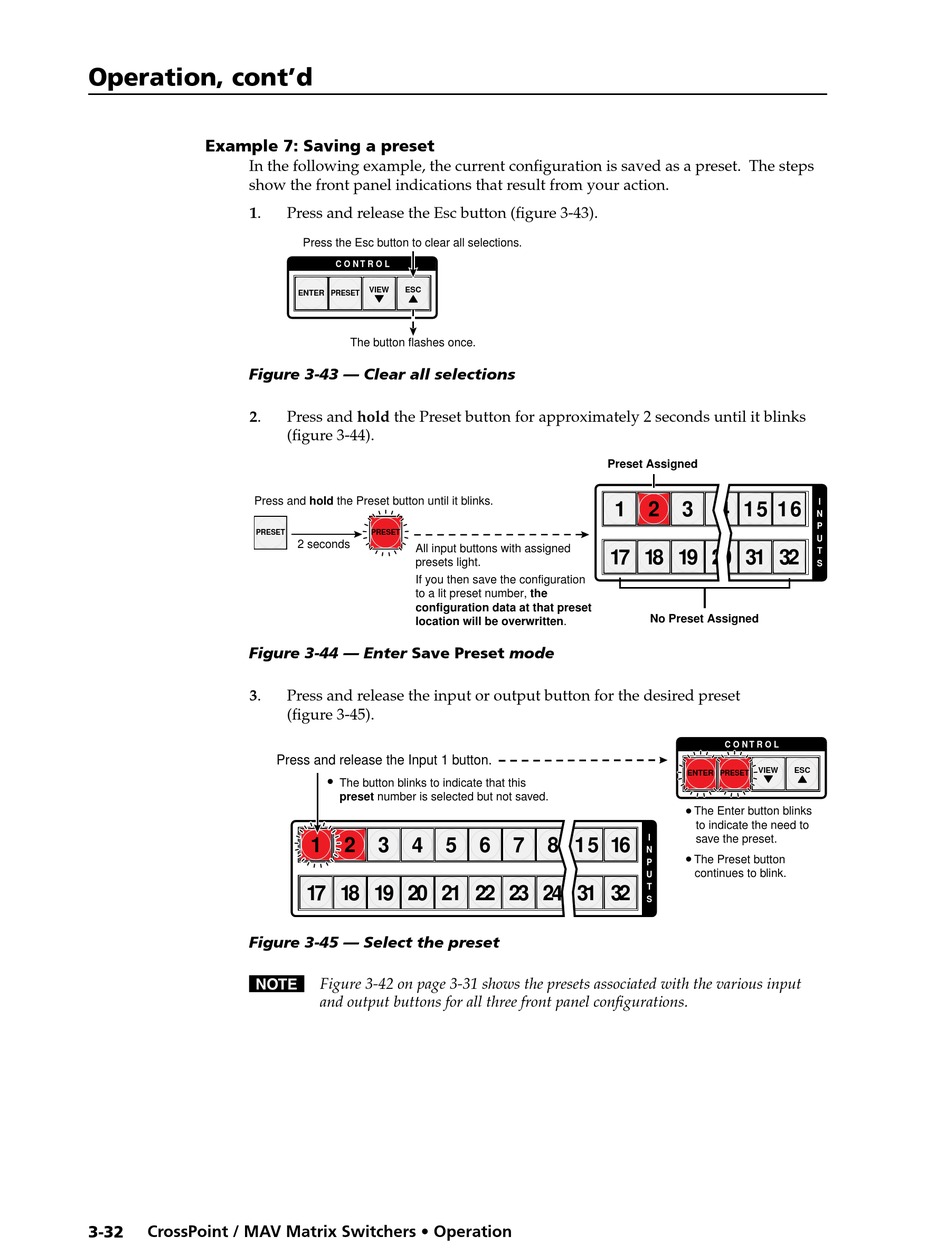

Example 7: Saving a preset
In the following example, the current configuration is saved as a preset. The steps
show the front panel indications that result from your action.
1.
Figure 3-43 — Clear all selections
2.
Press and hold the Preset button until it blinks.
PRESET
Figure 3-44 — Enter Save Preset mode
3.
Figure 3-45 — Select the preset
N Figure 3-42 on page 3-31 shows the presets associated with the various input
3-32 CrossPoint / MAV Matrix Switchers • Operation
Press and release the Esc button (figure 3-43).
Press the Esc button to clear all selections.
C O N T R O L
VIEW ESC
ENTER PRESET
The button flashes once.
Press and hold the Preset button for approximately 2 seconds until it blinks
(figure 3-44).
PRESET
2 seconds
All input buttons with assigned
presets light.
If you then save the configuration
to a lit preset number, the
configuration data at that preset
location will be overwritten.
Press and release the input or output button for the desired preset
(figure 3-45).
Press and release the Input 1 button.
•
The button blinks to indicate that this
preset number is selected but not saved.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
and output buttons for all three front panel configurations.
Preset Assigned
1 2
17 18 19 20 31 32
No Preset Assigned
I
6 7 8 15 16
N
P
U
T
S
I
3 4 15 16
N
P
U
T
S
C O N T R O L
VIEW ESC
ENTER PRESET
•
The Enter button blinks
to indicate the need to
save the preset.
•
The Preset button
continues to blink.
