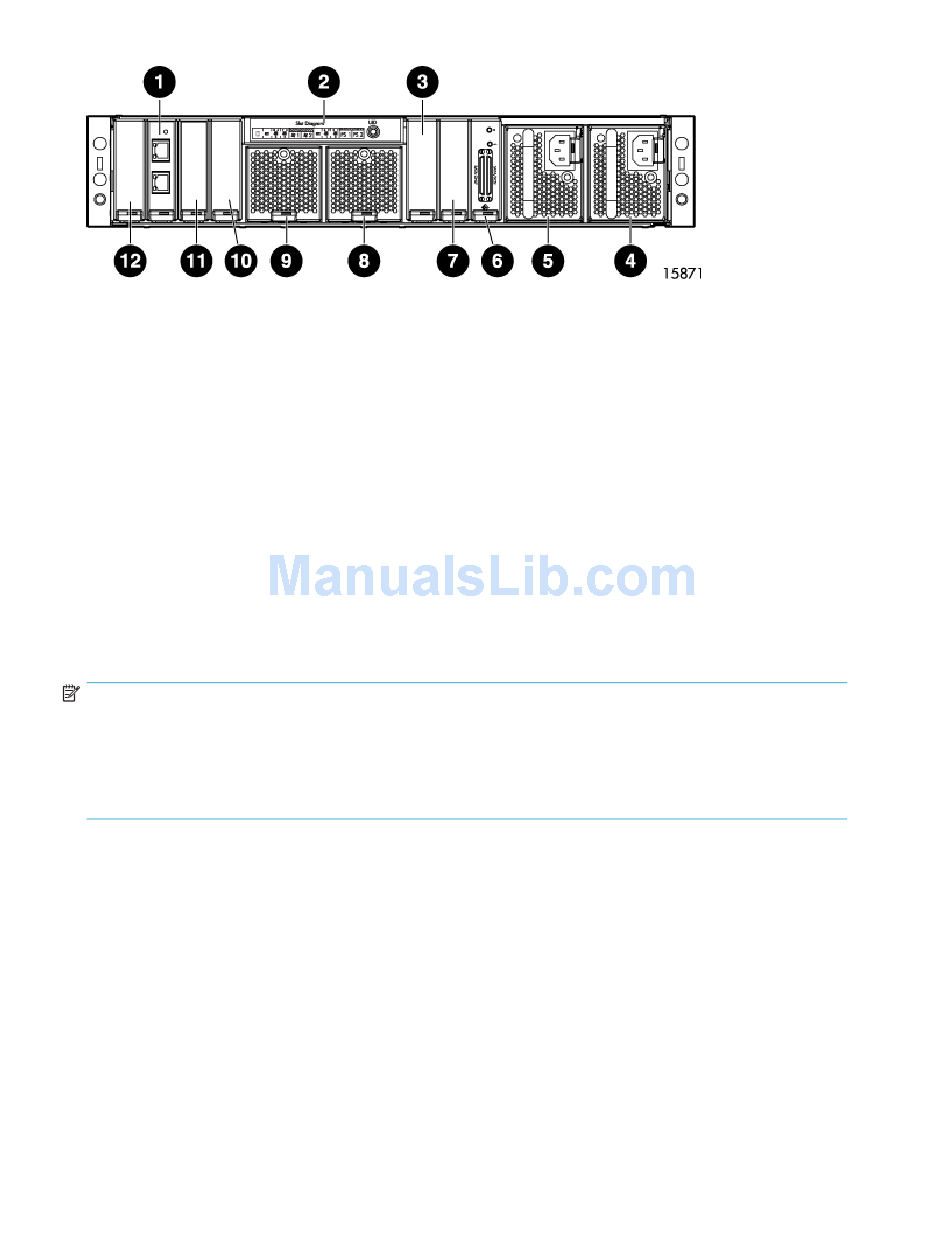

Rear view

1. 2–Port Ethernet iSCSI module (for the controller in slot 1)
2. Chassis slot diagram
3. Blank for additional 2-Port Ethernet iSCSI module (for the controller in slot 2)
4. Power supply module 2
5. Power supply module 1
6. SCSI I/O module (bus 0)
7. Blank for additional SCSI I/O module (bus 1)
8. Fan module 2
9. Fan module 1
10. Blank for additional SCSI I/O module (bus 2)
1 1. Blank for additional SCSI I/O module (bus 3)
12. Unused slot
NOTE:
Each MSA SCSI I/O module has two ports. Depending on the type of external hard drive storage
enclosure, one or both of the ports may be used.
• When connecting SATA enclosures, both ports may be used.
• When connecting SCSI enclosures, only the right port may be used.
