4.

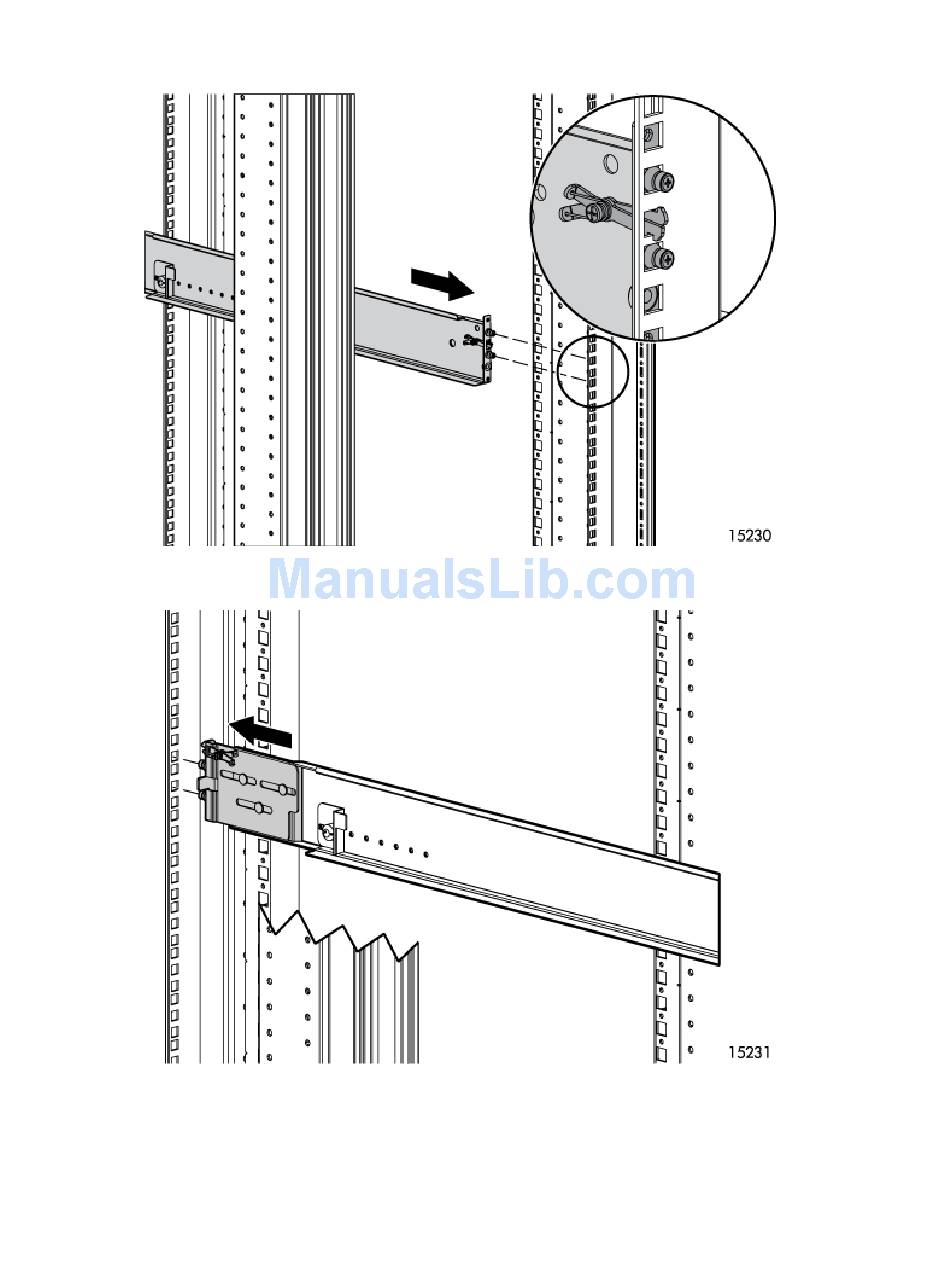

From the front of the rack, align the front end of the rail with the marked holes on the rack. Disengage
the scissor-pin locking latch by pulling the bottom of the latch towards the front of the rack and, at the
same time, insert the end of the rail into the inside-front of the rack, making sure that the scissor-pin
clicks into place. Release the locking latch and verify that it engages the scissor-pin.
5. From the rear of the rack, extend the opposite end of the rail toward the inside rear of the rack until
the pins extend through the marked holes and the scissor-pin clicks into place.
