4.

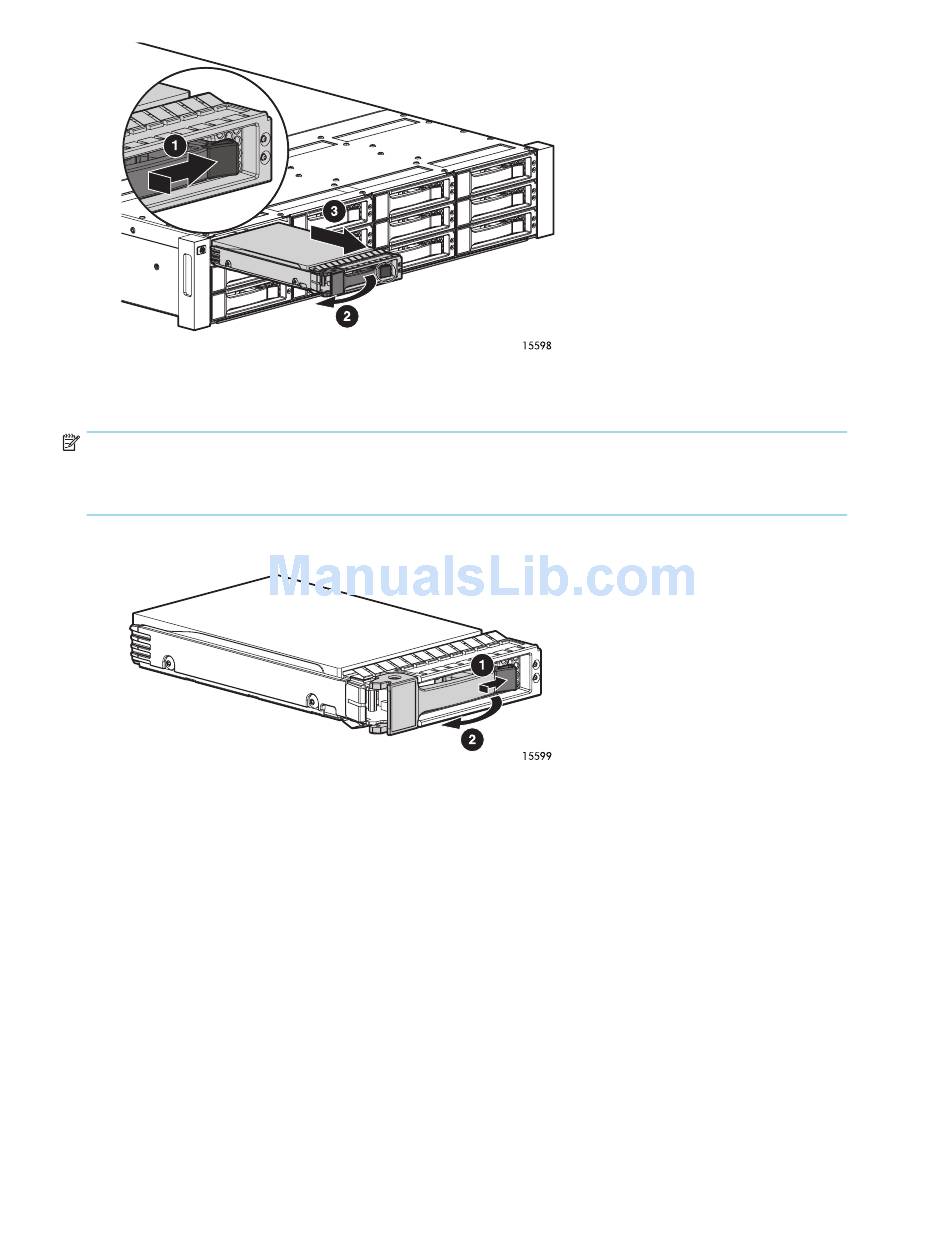

Pull the hard drive out of the storage enclosure bay (3).
Installing the hard drive
NOTE:
Illustrations in this section demonstrate installing a hard drive in an MSA20 storage enclosure. The
procedure for installing a hard drive in an MSA30 or other storage enclosure is similar.
1.
Press the hard drive ejector button (1) and pull the release lever to the full open position (2).
98
Operation and management
