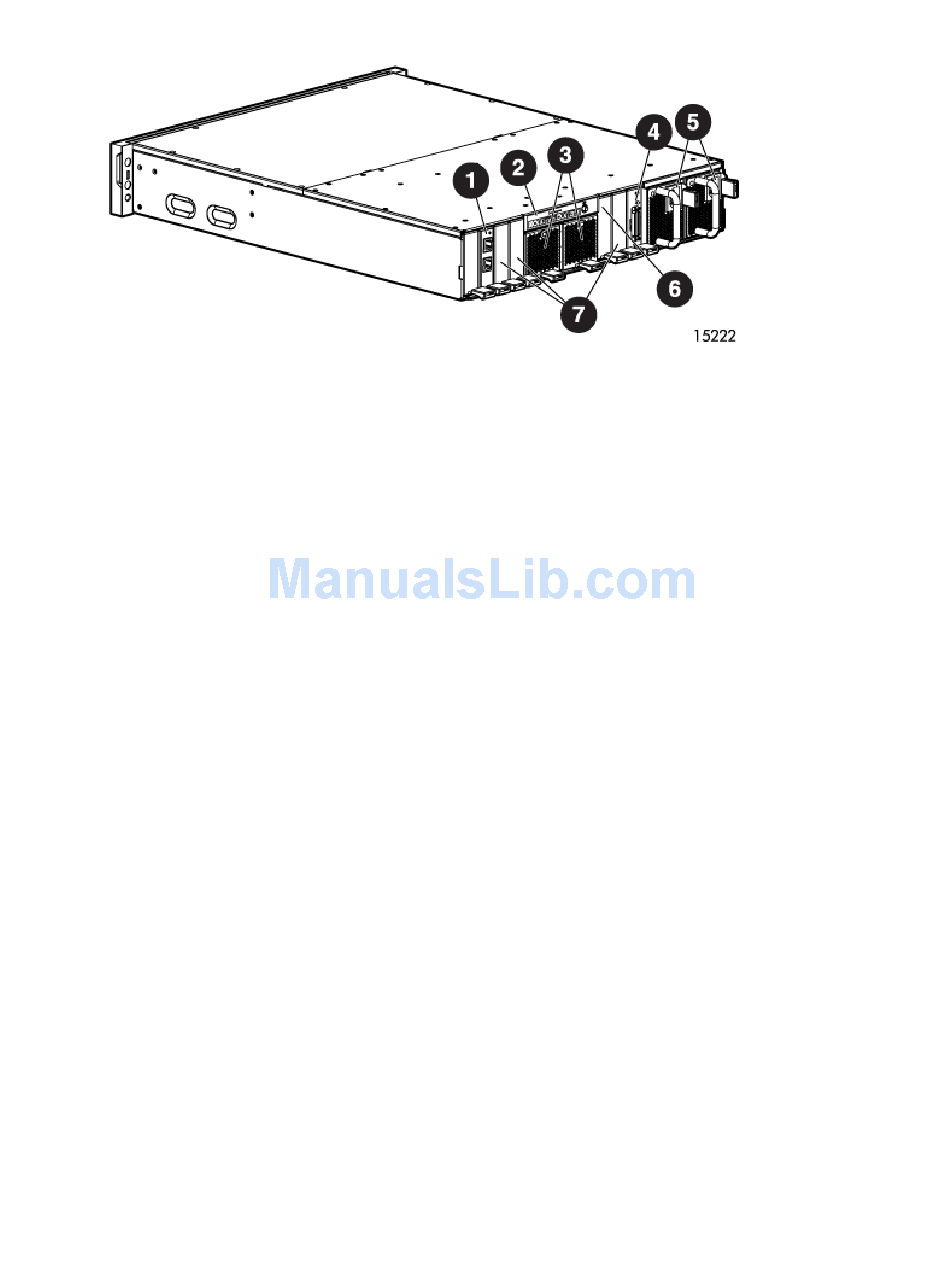

Rear features
1. 2–Port Ethernet iSCSI module (for the controller in slot 1)
2. Chassis slot diagram
3. Fan modules
4. SCSI I/O module (bus 0)
5. Power supply modules
6. Blank for additional 2-Port Ethernet iSCSI module (for the controller in slot 2)
7. Blanks for additional SCSI I/O modules (buses 1, 2, and 3)
15
1510i Modular Smart Array installation and user guide
