10.

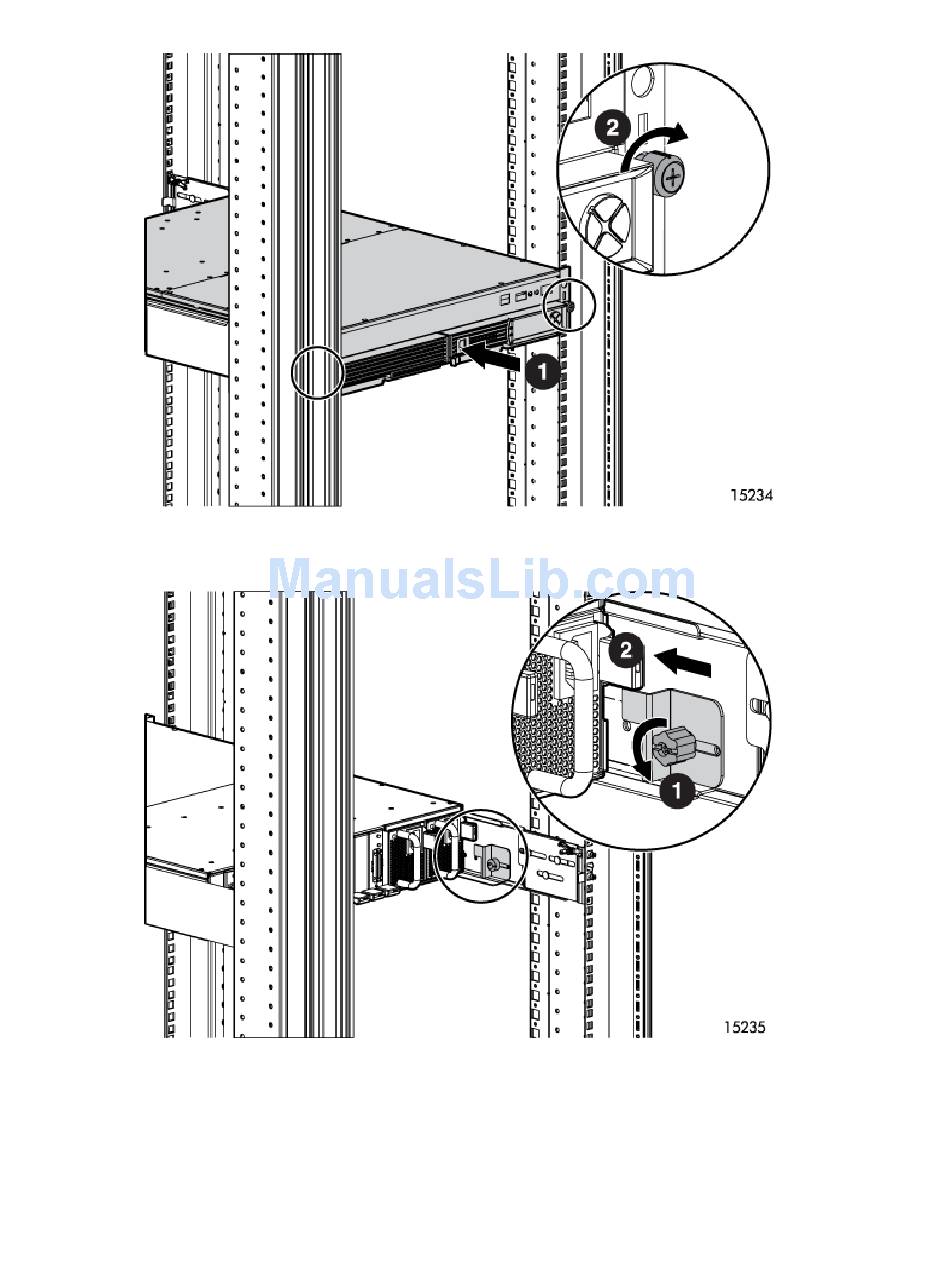

Slide the MSA1510i into the rack until the front edge is flush with the front of the rack. Then, secure
the MSA1510i to the front of the rack by tightening the thumbscrews on the front of the MSA1510i.
1 1. From the rear of the rack, secure the rear of the MSA by sliding the retaining bracket toward the
MSA1510i, until the tab engages the slot in the MSA chassis. Then, tighten the thumbscrew on
the bracket.
12. Replace the front bezel by aligning the pins and retaining clips on the back of the bezel with the
corresponding locations on the front of the chassis. Then, with even pressure, push firmly on the
bezel until the retaining clips engage.
