HP StorageWorks 1510i - Modular Smart Array User Manual page 44

6.

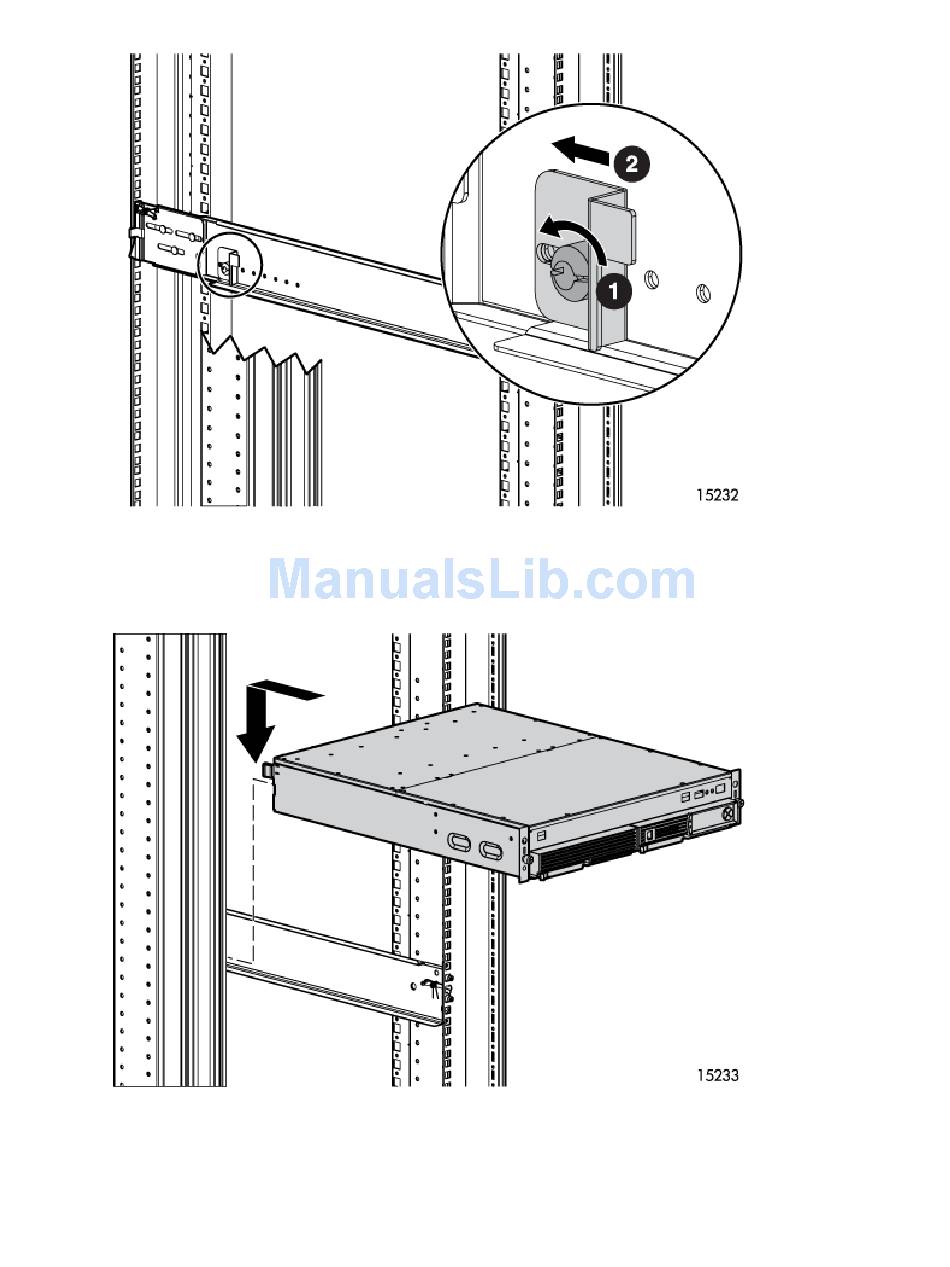

If necessary, loosen the locking nut on the device retaining bracket and slide the bracket to the
farthest position near the rear of the rack.
7.
Repeat through to install the other rail.
8. Remove the bezel from the front of the MSA1510i by grasping the bezel by its left and right outside
edges, and then, with even pressure, pulling toward you until the retaining clips disengage.
9.
From the front of the rack, place the MSA1510i on the rails and slide it into the rack.
44
Installation
