• SCSI and SATA hard drive firmware flashing is supported directly from the SMU using HP
Firmware Maintenance CD 7.90 and later. For more information, see the SMU user guide.

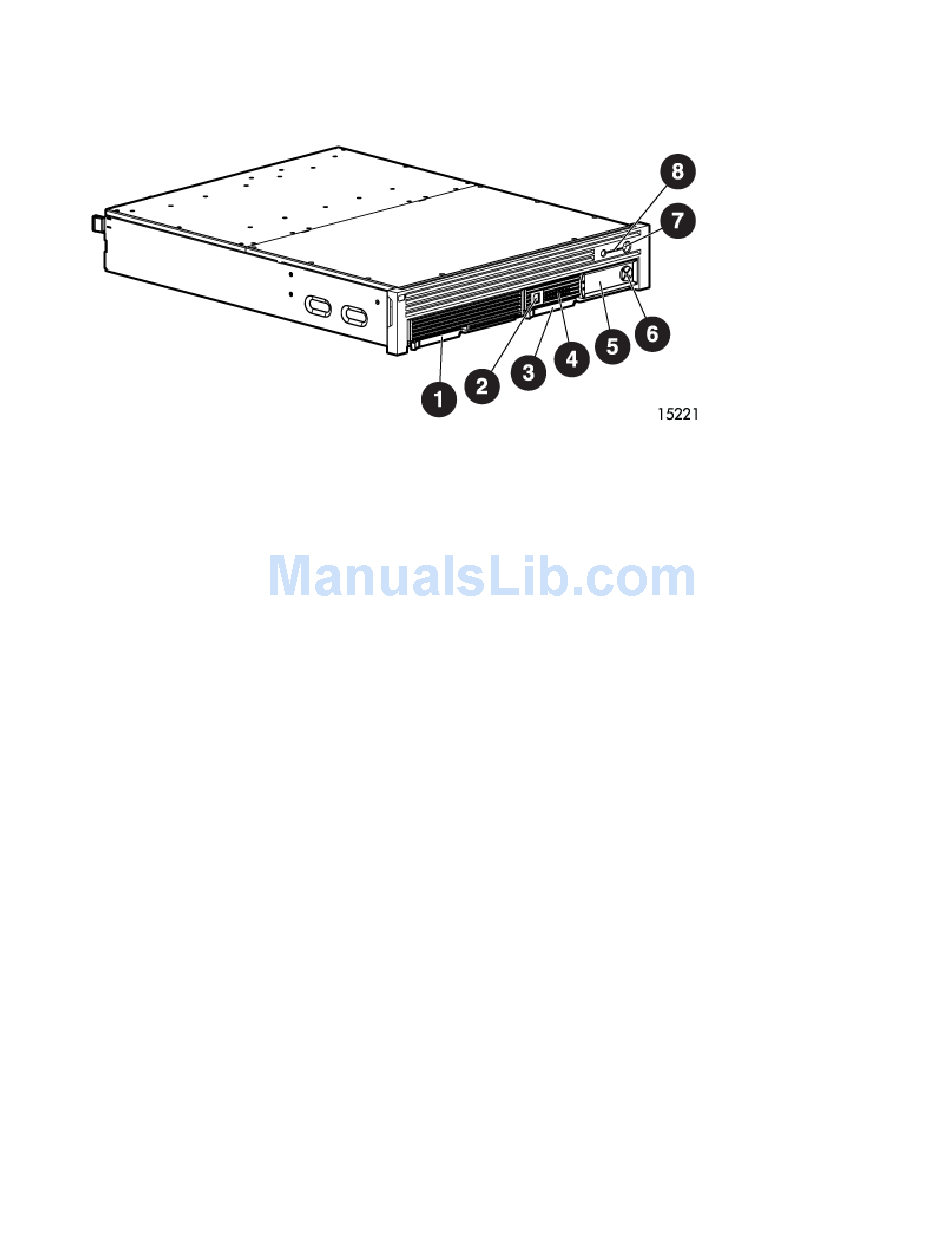

Front features

1. Blank for an additional controller (controller slot 2)
2. Serial port for a CLI connection
3. MSA1510i controller (controller slot 1)
4. Controller status lights
5. Controller LCD message display panel
6. Controller LCD panel push buttons
7. Chassis Power On/Standby button
8. Chassis status lights
14 Overview
