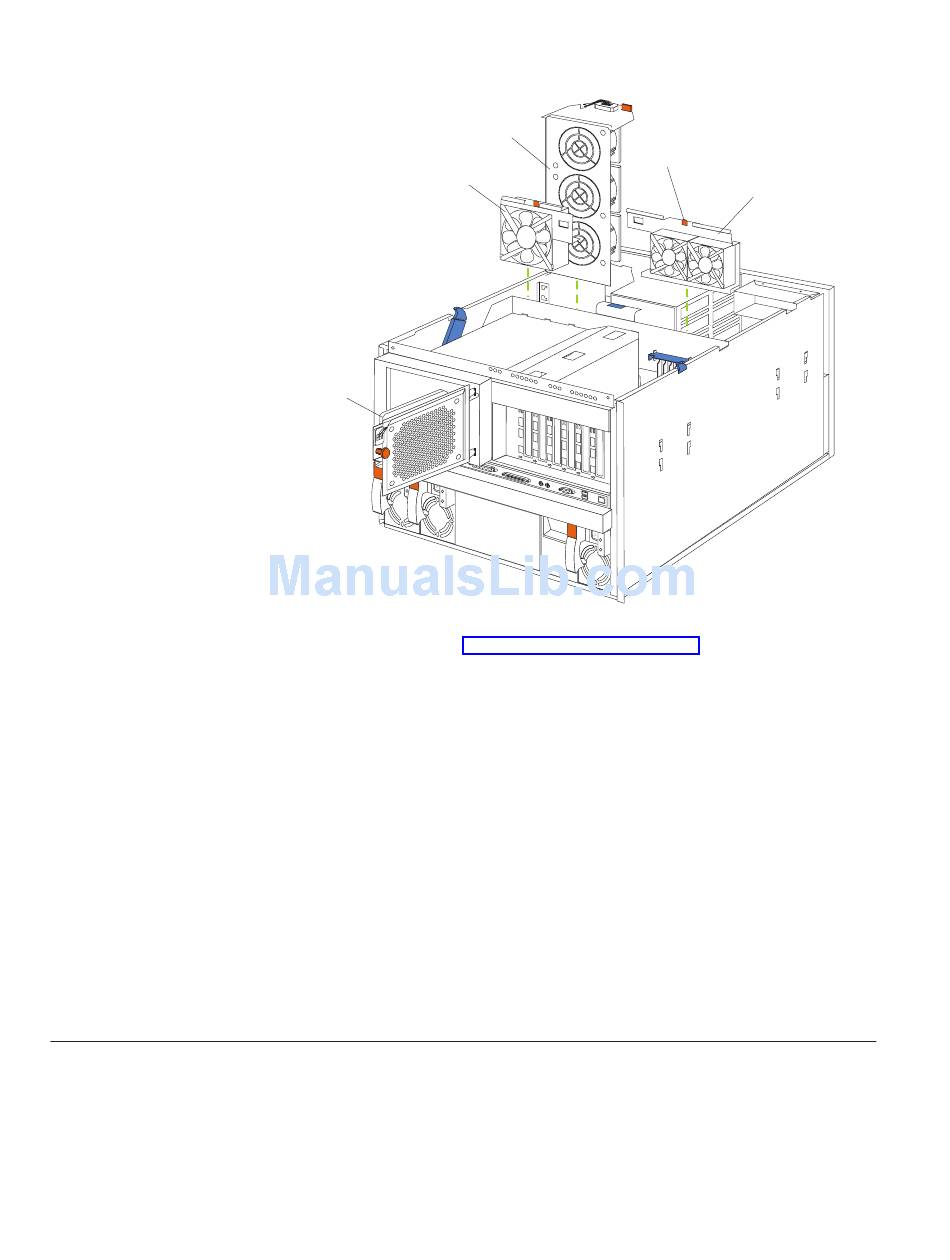

Refer to the following illustration to replace a hot-swap fan.
To replace a hot-swap fan assembly:
1. Review the information in "Before you begin" on page 43.
2. If you are replacing fan assembly 1, 2, or 3:
3. If you are replacing fan assembly 4:

Completing the installation

To complete the installation, you must reinstall the media bay bezel, reinstall the
front door, reinstall the top cover, and reconnect all the cables that you
disconnected, and for certain options, run the Configuration/Setup Utility
program. Follow the instructions in this section.
62
Hardware Maintenance Manual: Netfinity 7100 – Type 8666
Hot-swap fan
assembly 1
Hot-swap fan
assembly 3
Hot-swap fan
assembly 4
a. Remove the top cover.
Attention: To ensure proper system cooling, keep the cover removed for
no more than 30 minutes during this procedure.
b. Press the fan release latch and lift the fan assembly out of the server.
c. Slide the replacement fan assembly into the server. The latch will snap into
place and secure the fan in the server.
d. Replace the top cover
a. Pull out on the orange pop rivet on the rear fan bracket; then, lift the fan
assembly up and out of the hinge cutouts.
b. Slide the replacement fan assembly into the server. (Make sure that the fan
assembly fits correctly into the hinge cutouts on the rear of the shuttle.)
c. When you have the fan assembly properly seated, push on the pop rivet
until it clicks into place.
Latch
Hot-swap fan
assembly 2
