2. Turn off the server and all attached devices. Disconnect all external cables and
power cords and remove the top cover.
3. Pull up the two pop rivets on the processor housing cover and remove the
cover from the processor housing.
4. Determine the slots where you will install the microprocessor and VRM.
5. Remove the terminator card from the microprocessor connector.
6. Install the microprocessor:
a. Touch the static-protective package containing the new microprocessor to
any unpainted metal surface on the server; then, remove the microprocessor
from the package.
b. Hold the microprocessor by the open latches, and center the microprocessor
over the microprocessor connector.
Attention: Make sure the microprocessor is oriented and aligned correctly
before you try to close the latches.
c. Carefully close the latches to seat the microprocessor in the connector.
Store the terminator card in a safe place in the static-protective package
d.
that the new microprocessor comes in; you will need to install it again if
you ever remove the microprocessor.
7. Install the voltage regulator module (VRM):
a. Center the VRM over the connector. Make sure that the VRM is oriented
and aligned correctly.
Note: If you remove the microprocessor later, remember to install the
terminator card in the appropriate microprocessor connector and to
remove the VRM for that microprocessor.
b. Carefully close the latches to seat the VRM in the connector.
8. Install the processor housing cover and push down on the two pop rivets.
9. If you have other options to install or remove, do so now; otherwise, go to
"Completing the installation" on page 62.

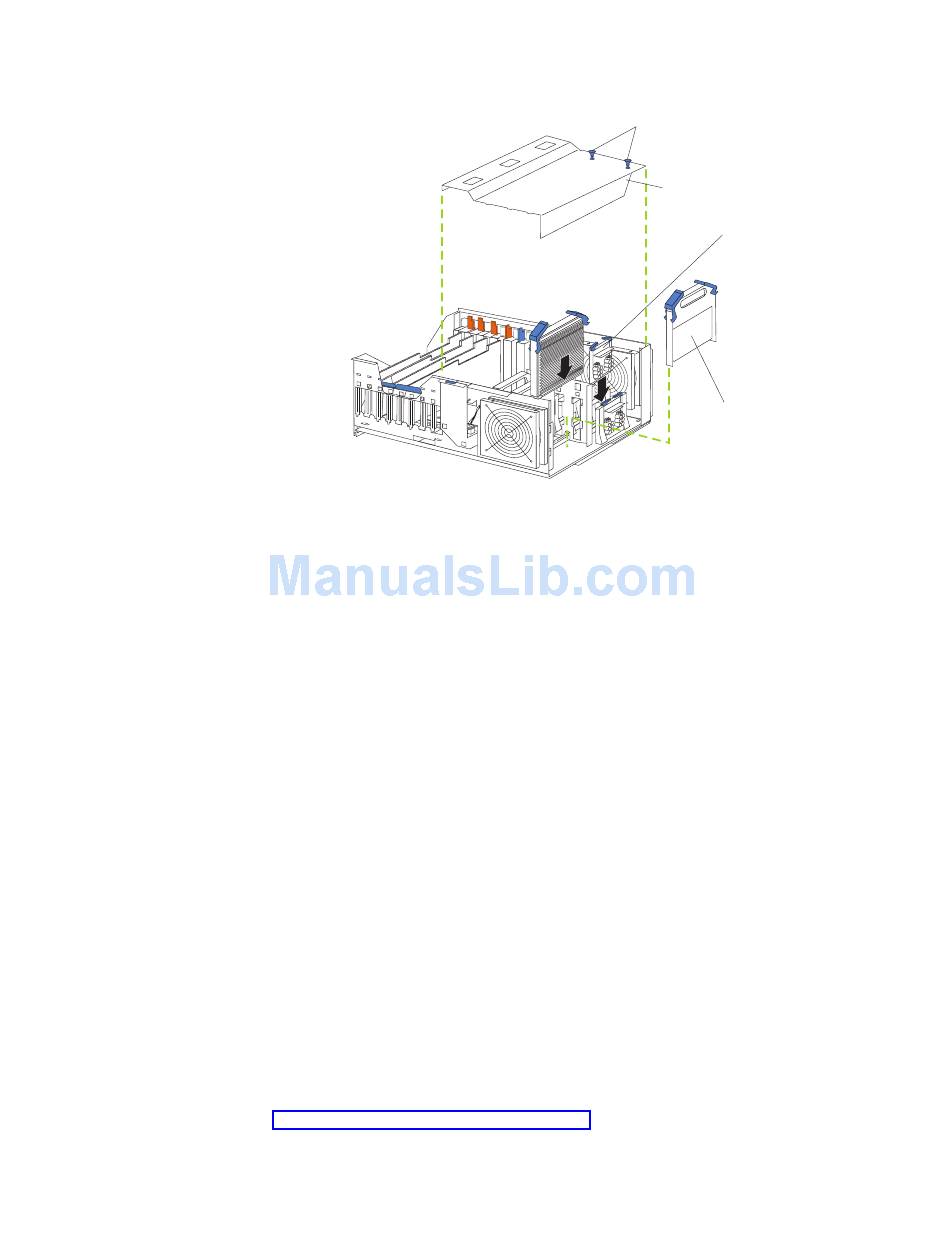

Pop rivets
Processor housing
cover
VRM
Terminator card
Installing options
59
