To replace the memory card assembly:
1. Power-off the server and all attached devices. Disconnect external cables and
power cords and remove the top cover.
2. Pull up the two pop rivets on the processor housing cover and remove the
cover from the processor housing.
3. Lift up on the memory card assembly and remove it from the server.
Note: When setting down the memory card assembly, be sure to place the
assembly only on a static-protective surface, such as a static-protective
package.
4. Remove the memory modules (DIMMs) from the memory card assembly and
seat them in the new memory card assembly. See "Installing memory-module
kits" on page 54.
Note: Be sure to put the memory modules in the same positions on the
replacement assembly as they occupied on the assembly that has been
removed from the server.
5. Install the memory card assembly:
a. Hold the memory card assembly and align it over the memory card
connector.
b. Insert the memory card assembly into the connector.
6. Install the processor housing cover and push the two pop rivets down to secure
the cover.

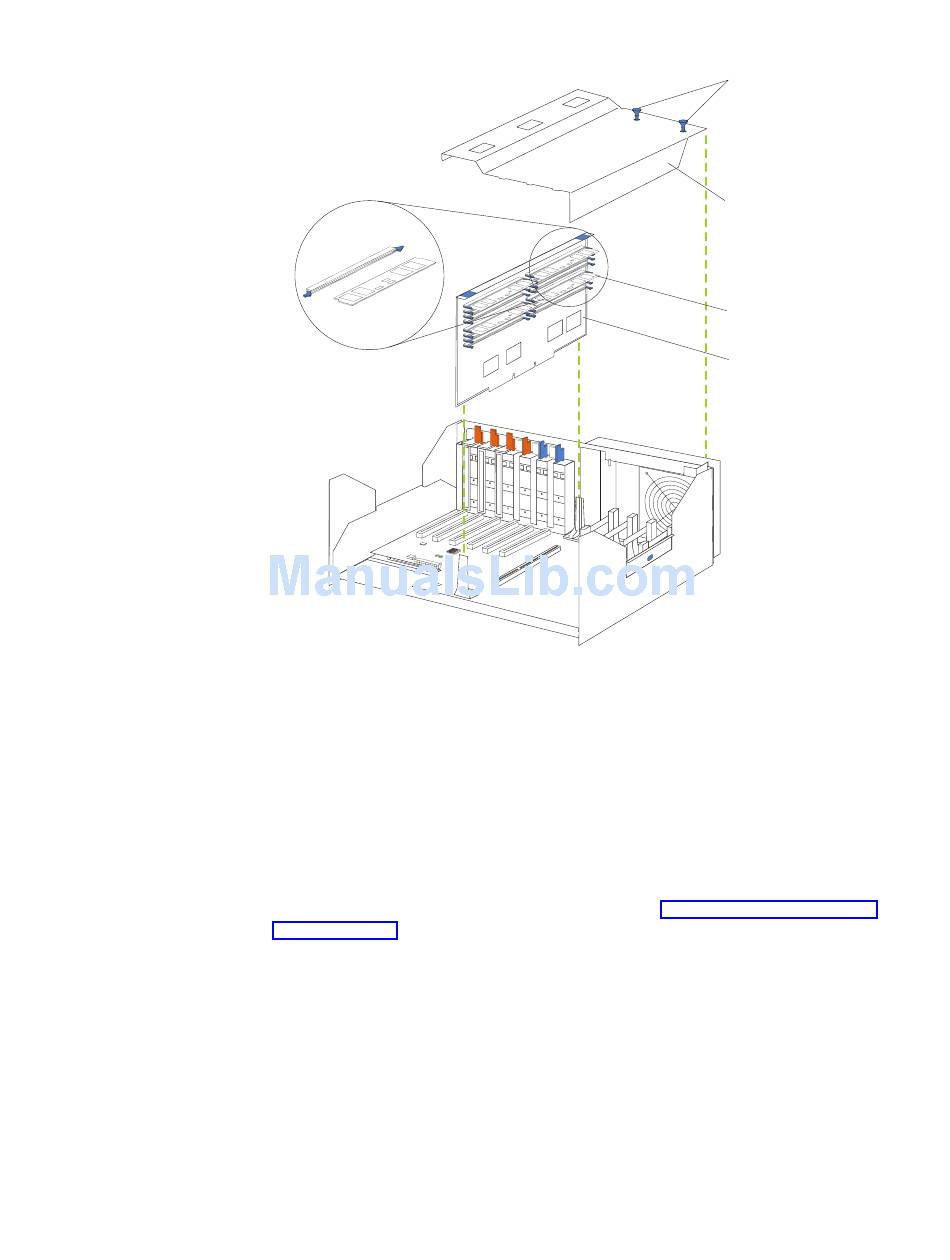

Pop rivets
Processor housing
cover
DIMM
Memory board
FRU information (service only)
