11. Connect the power supply cables to the server board and peripherals. See
— A: 2x4 power connector
— B: 2x12 main power connector
— C: Daisy chain cable to:
.
12. Install the server system cover. For instructions, see
Cover".
13. Plug all peripheral devices and the AC power cable into the server.
®
Intel
Server System SR1530SH/SR1530HSH User's Guide
HDD1 power connector, if a hard drive is installed here. Use the connector on
cable that is closest to power supply.
HDD0 power connector, if a hard drive is installed here. Use the center
connector on the cable.
Optical drive power, if an optical drive is installed. Use the end connector on
the power supply.
C

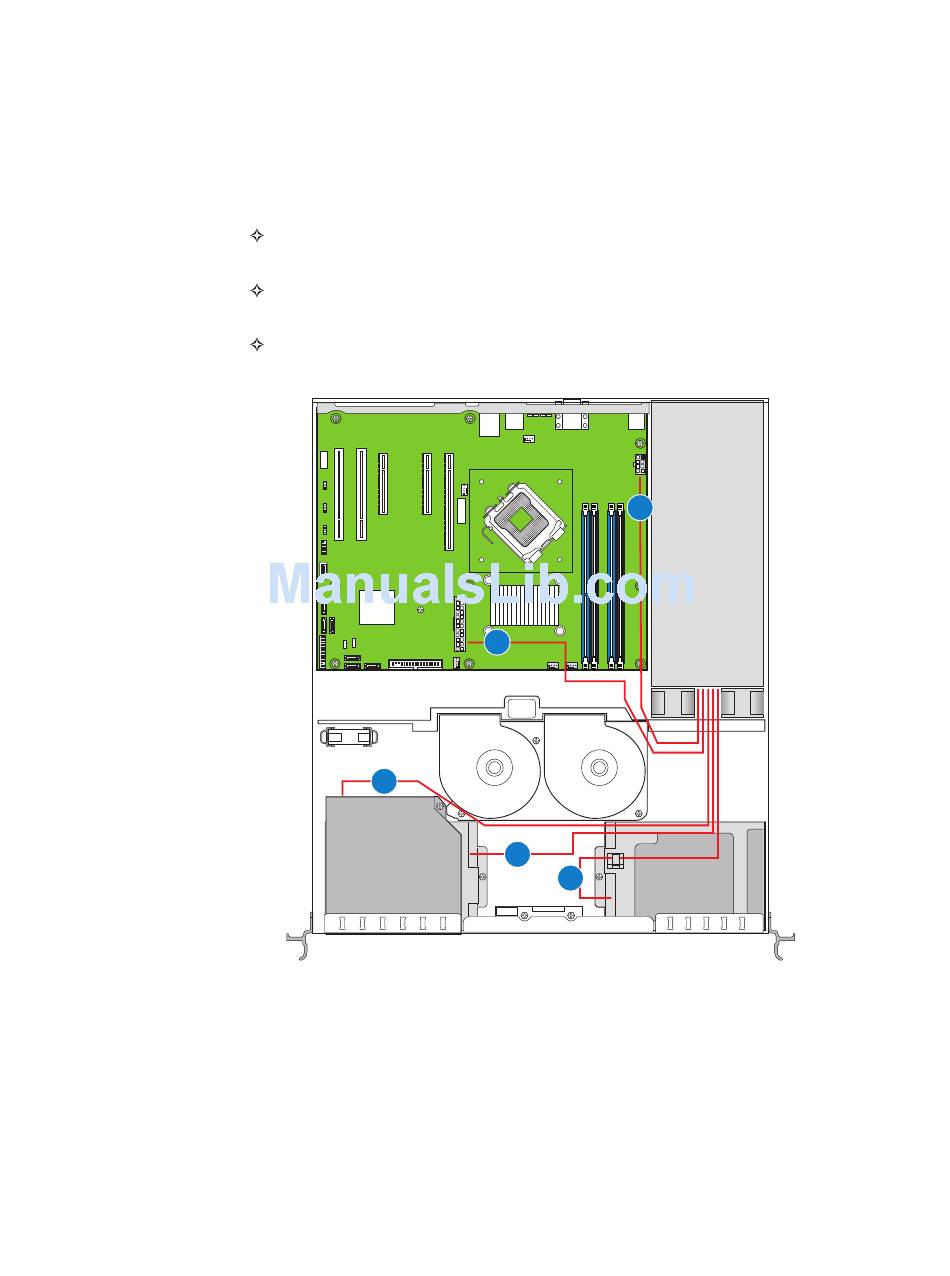

Figure 63. Connecting Power Cables (SR1530SH)
A
B
D
E
"Installing the Server System
Figure
62.
AF002476
71
