8. Slide the optical drive assembly in through the front of the chassis, as shown by
letter "A in
9. Reinstall the screw that you removed in Step 6.
10. Connect the mini SATA power connector on the optical drive.
11. Connect the data cable to the optical drive and to the SATA connector on the server
board.
48

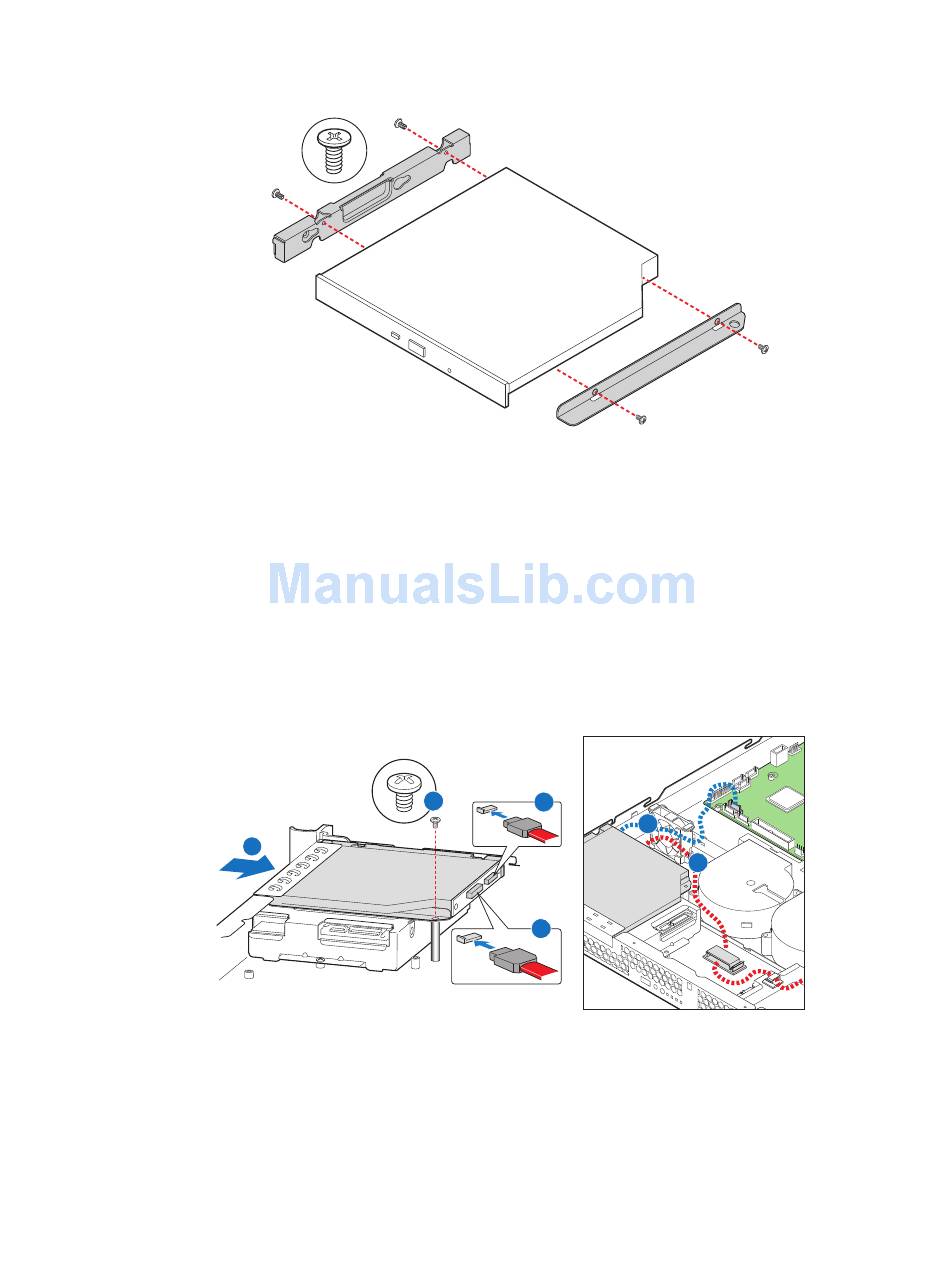

Figure 40. Attaching the Optical Drive to the Brackets

Figure 41.
A

Figure 41. Installing the Optical Drive into the System

B
C
D
®
Intel Server System SR1530SH/SR1530HSH User's Guide
AF000672
C
D
AF003095
