Internal Components (SR1530SH)

A
L
A. Rack Handles (two)
B. PCI Cooling Fan
C. Server Board
D. Processor Air Duct
E. PCIe* Riser Assembly
F. Processor and Heat Sink
10
E
D
C
B
K
J

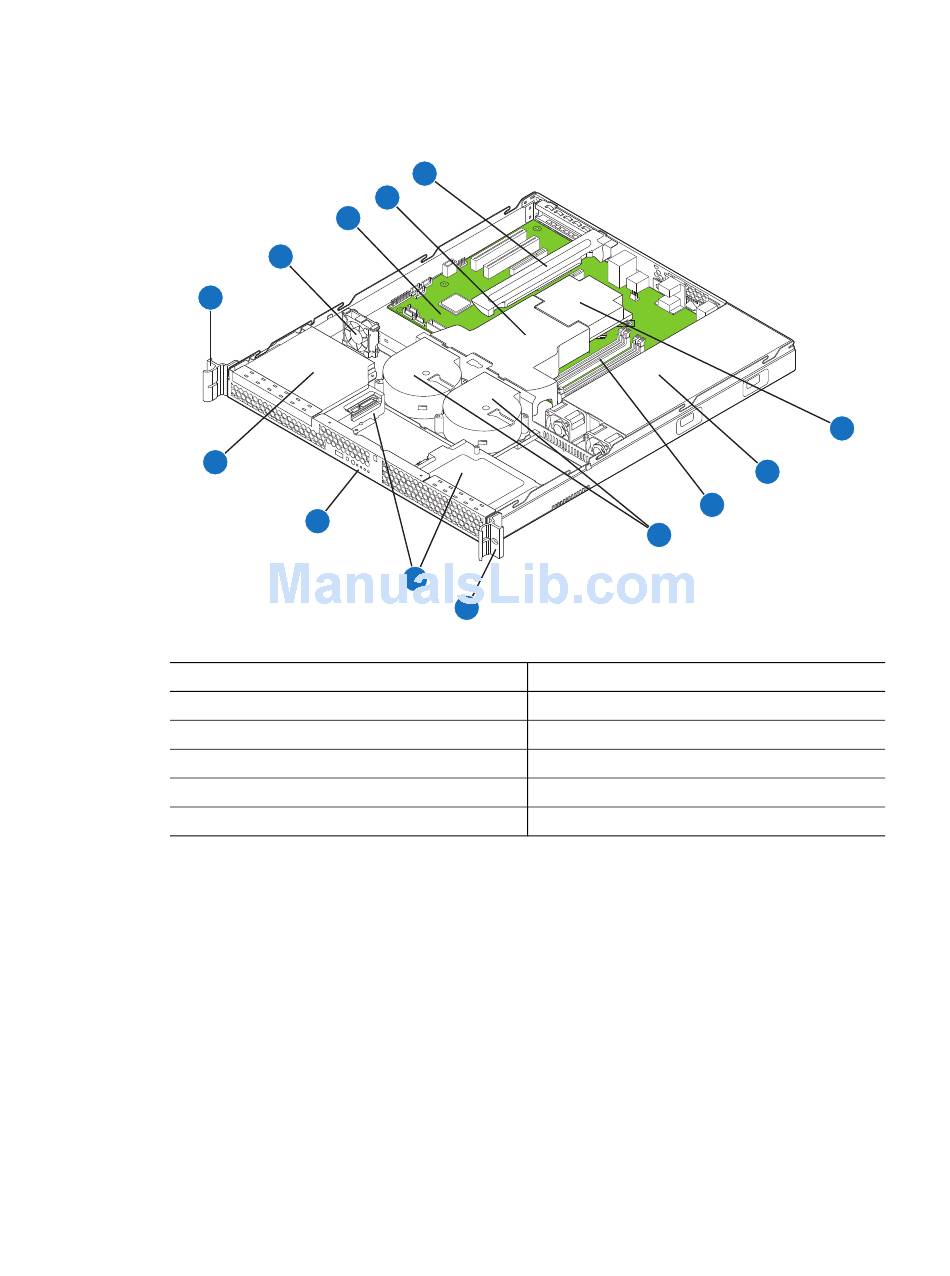

Figure 6. System Components (SR1530SH)

Intel
A
G. Power Supply
H. System Memory DIMM Sockets
I. System Blower Fans (two)
J. Hard Drive Bays
K. Front Panel
L. Slimline Optical Drive Bay
®
Server System SR1530SH/SR1530HSH User's Guide
