PART 2: CX-Server PLC Tools
CHAPTER 3 – IO Table Component

Displaying an I/O Table

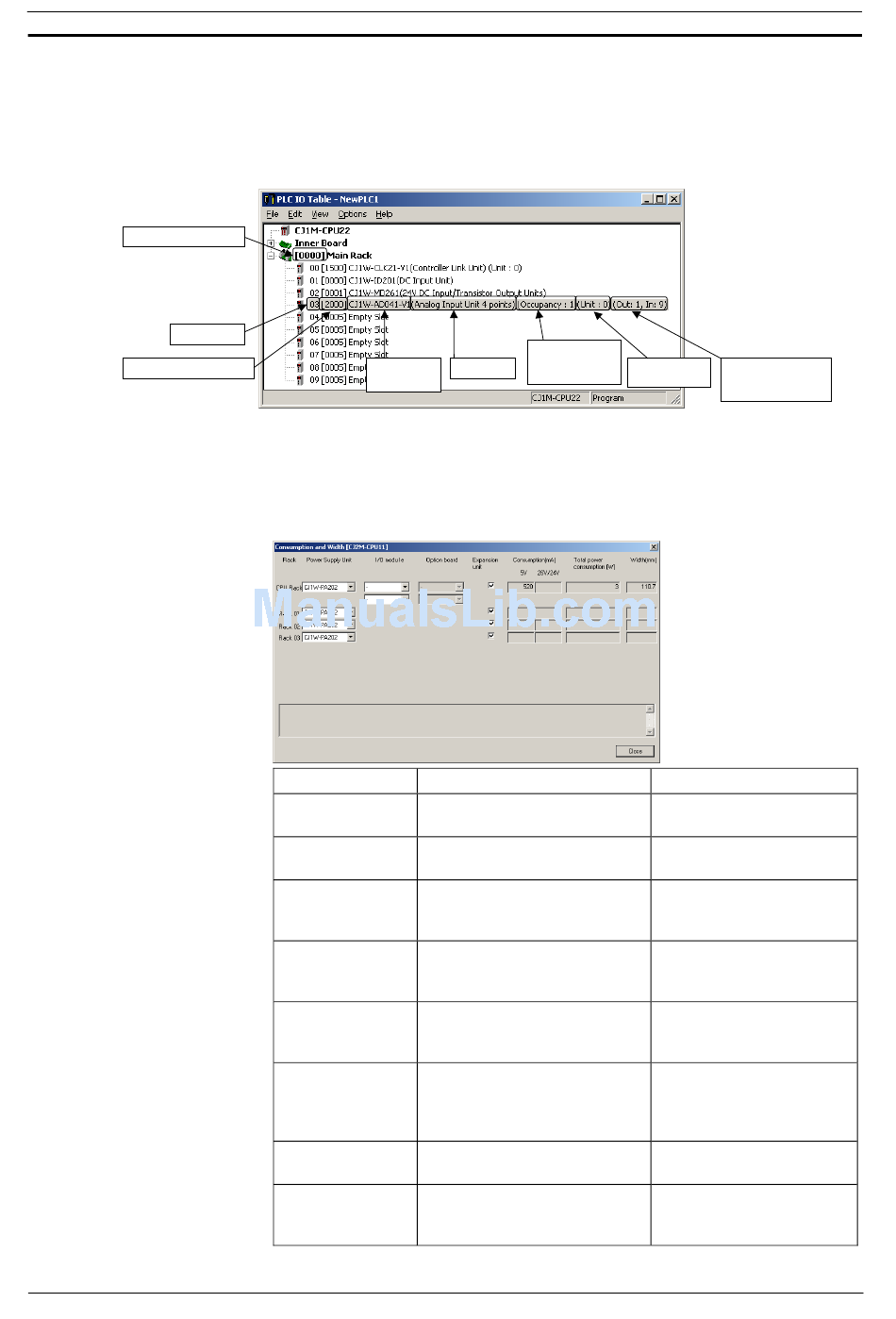

Displaying the CS/CJ/CP I/O Table Window

The CS/CJ/CP I/O Table Window is displayed when the PLC is a CS/CJ/CP-series PLC.
Rack's starting CIO address
Slot number
Unit's starting CIO address
CX-Server PLC Tools_Page 22
Note: In the CS/CJ I/O Table Window, the current consumption and width for each PLC
Rack can be displayed as shown below by selecting Options - Consumption and Width
offline.
Item
Rack
Power Supply Unit
I/O module
Option board
Expansion unit
Consumption
(mA)
Total power
consumption (W)
Width (mm)
Number of Unit
resources occupied
Unit model Unit name
by Special I/O Unit
(See note.)
Note: The Unit model will be blank if there is no CPS file.
The Unit model will also be blank when data for C200H Special I/O
Units has been uploaded from the PLC (Transfer from PLC).
Description
Select the CPU Rack and
Expansion Racks.
Select the model of power
supply units to use.
Select the model of Pulse I/O
Modules to use.
Select the model of option
boards to use.
Tick the corresponding check
box when an expansion unit is
used.
Indicates the total current
consumption of the units
registered in the I/O table by
racks.
Indicates the total power
consumption by racks.
Indicates the total width of the
units registered in the I/O table
by racks.
Special I/O Unit's
Number of output words
unit number
and number of input
words
Remarks
This item can be specified
only for the CJ2M CPU Unit
with unit version 2.0 or later.
This item can be specified
only for the CJ2M and
CP1H Units.
This item is indicated only
for the CJ/CP Series.
