Setting Rack Start Addresses; Units Profile Information - Omron CX-PROGRAMMER V9 Operation Manual

PART 2: CX-Server PLC Tools
CHAPTER 3 – IO Table Component

Setting Rack Start Addresses

This option is only available to CV-series PLCs and CS1-series PLCs. Use the following procedure to set Rack
Start Addresses.
1, 2, 3...

Units Profile Information

For CS1-series PLCs, SIOU's, CPU SIOU's and other units, unit manufacturing information can be retrieved, the
data read and comments saved against each unit to a Compact Flash disk when fitted. Use the following procedure
to view the unit manufacturing details:
1, 2, 3...
CX-Server PLC Tools_Page 36
1. Select Rack Start Addresses from the Option menu. The Rack Start Addresses dialog box is
displayed.
2. Enter the addresses for each rack as required. Select the OK pushbutton to accept the
settings or select the Cancel pushbutton to abort the operation.
Note:
1. For CS1-H, CJ1-H, CJ1M, and CS1D CPU Units in the CS- and CJ-series PLCs,

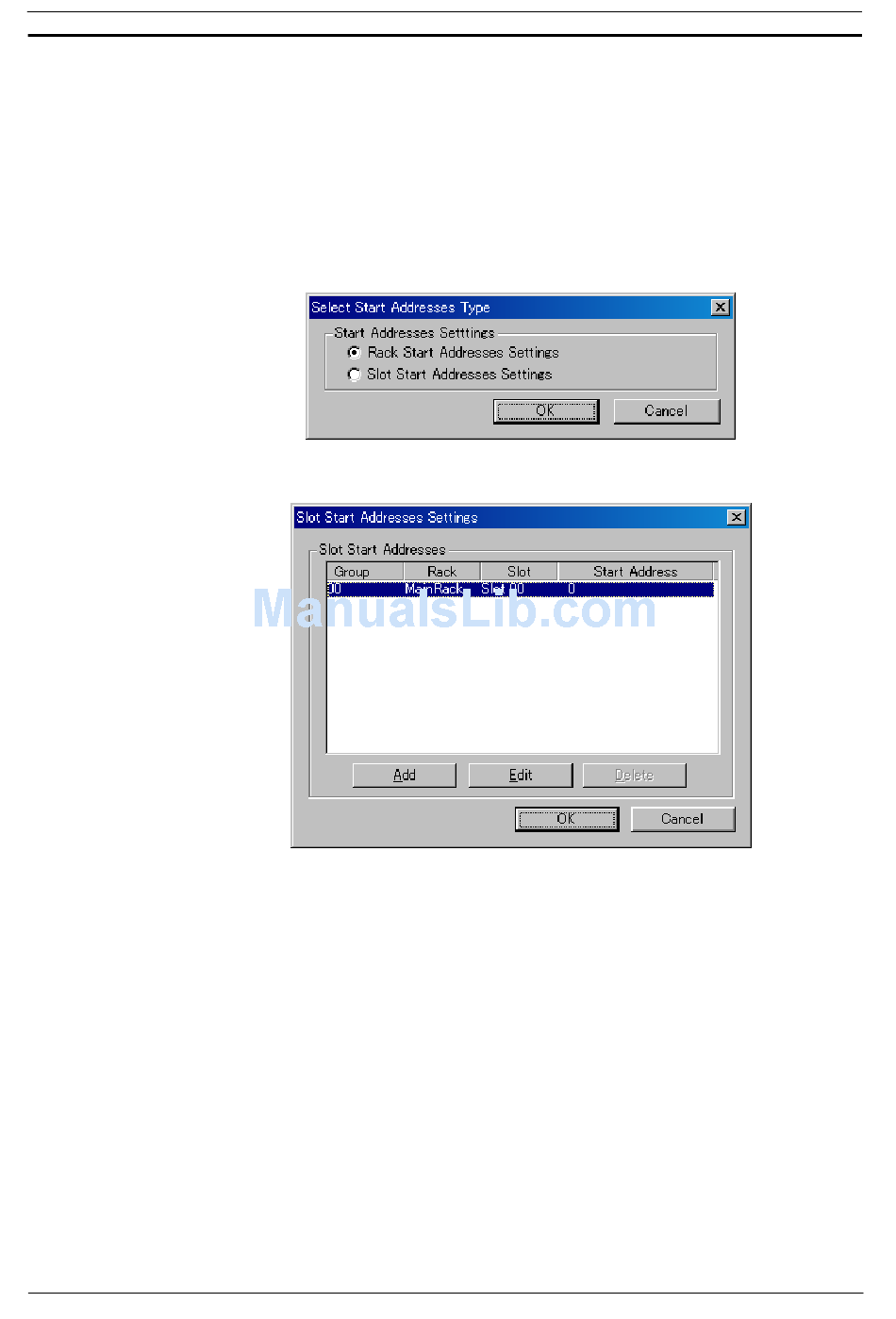

select Options | Rack/Slot Start Address and the following dialog box will appear.
Note: 2. Select Slot Start Address Settings and click the OK button. The Slot Start Addresses
Settings dialog box shown below will appear.
Note: 3. The start address for a Rack and slot number can be specified.
This can be used, for example, to allocate fixed addresses to Input Units and Output
Units. Note: The start address information set for Racks and slots can be downloaded
and uploaded for the CPU Unit.
4. For CS/CJ-series CPU Unit Ver. 2.0 or later with CX-Programmer Ver. 4.0 or later,
up to 64 sets of rack/slot numbers and start addresses can be set.
1. Highlight the PLC name and click the right-mouse button.
2. Select Unit Manufacturing Information and then either CPU Unit or Inner Board
Note: An error is displayed if the unit does not support manufacturing information. The
unit version for CS/CJ/CP-series Units can be checked in the Unit Manufacturing
Information (CX-Programmer Ver.4.0 or later only).
OMRON
