Omron CX-PROGRAMMER V9 Operation Manual page 351

PART 2: CX-Server PLC Tools
CHAPTER 10 – Data Links

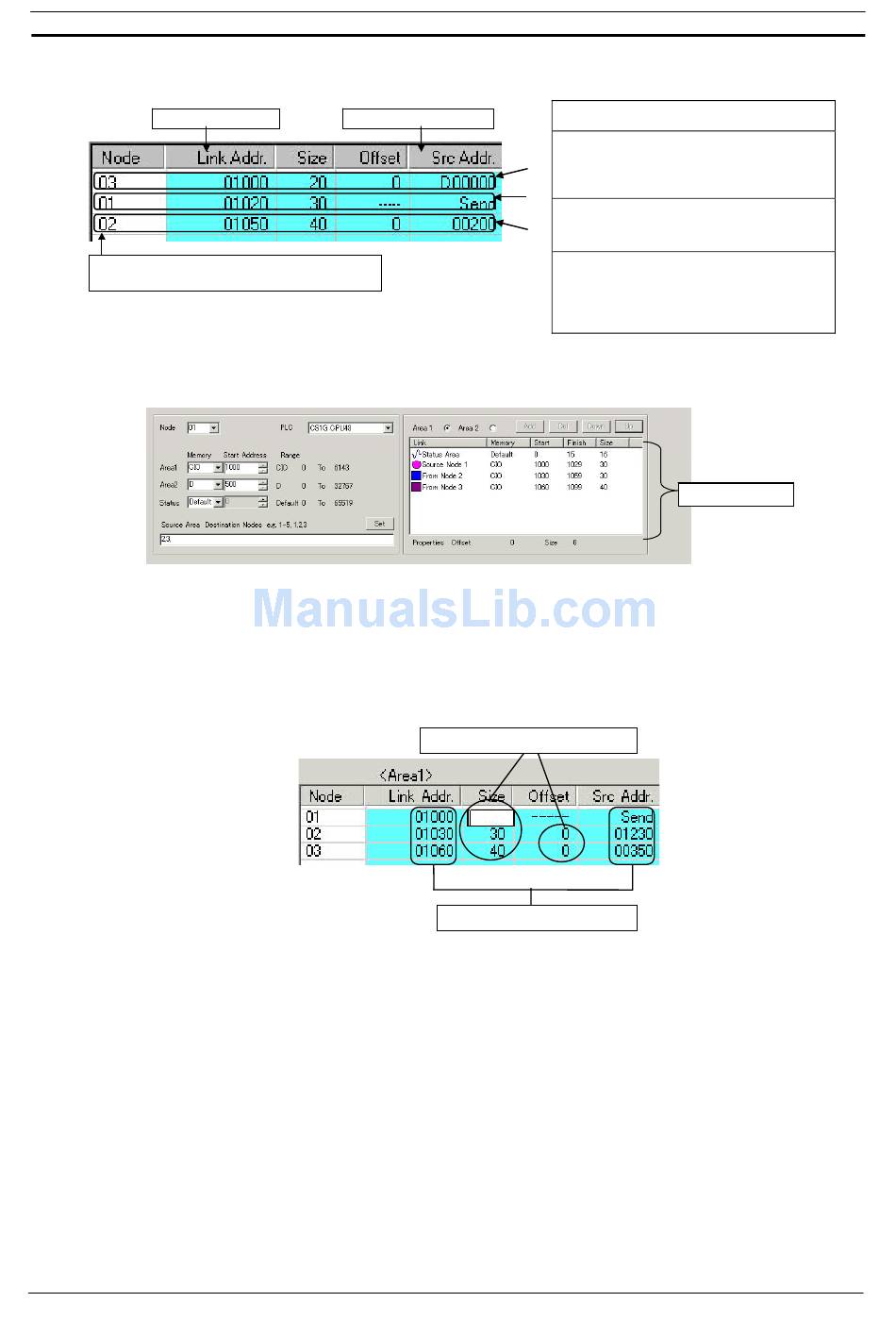

Node Editing Window (Edited Node Address: Node 01)
Address at local node
Indicates that the node refresh sequence at the local
node (node 01) is 03 to 01 (local node) to 02.
Reference: It is also possible to display the Node Editing window in list format, as before.
Setting Size (Send or Receive) and Offset
♦ The send size can be set for the local node row by double-clicking in the Size cell. (The default is the size set
by the Datalink Wizard.) For remote node rows, the receive size can be set. (The default is the entire send size
from remote nodes.)
♦ The reception offset can be set by double-clicking the Offset cell. (The default is 0.)
CX-Server PLC Tools_Page 108
Address at remote node
Select View | Show in List from the menu. The change will go into effect the next time
the window is opened.
Size and offset can be set.
(1) Indicates that 20 words (D00000 to D00019)
from a remote node (node 03) are received into
(1)
the area starting from CIO 01000 (i.e., CIO
01000 to CIO 01019) at the local node (node 01).
(2)
(2) Indicates that 30 words starting from CIO 01020
(i.e., CIO 01020 to CIO 01049) from the local
(3)
node (node 01) are sent to a remote node.
(3) Indicates that 40 words (CIO 00200 to CIO
00239) from a remote node (node 02) are
received into the area starting from CIO 01050
(i.e., CIO 01050 to CIO 01089) at the local node
(node 01).
Automatically displayed.
OMRON
Function
Node Editing window
