PART 1: CX-Programmer
CHAPTER 2 – Quick Start Guide

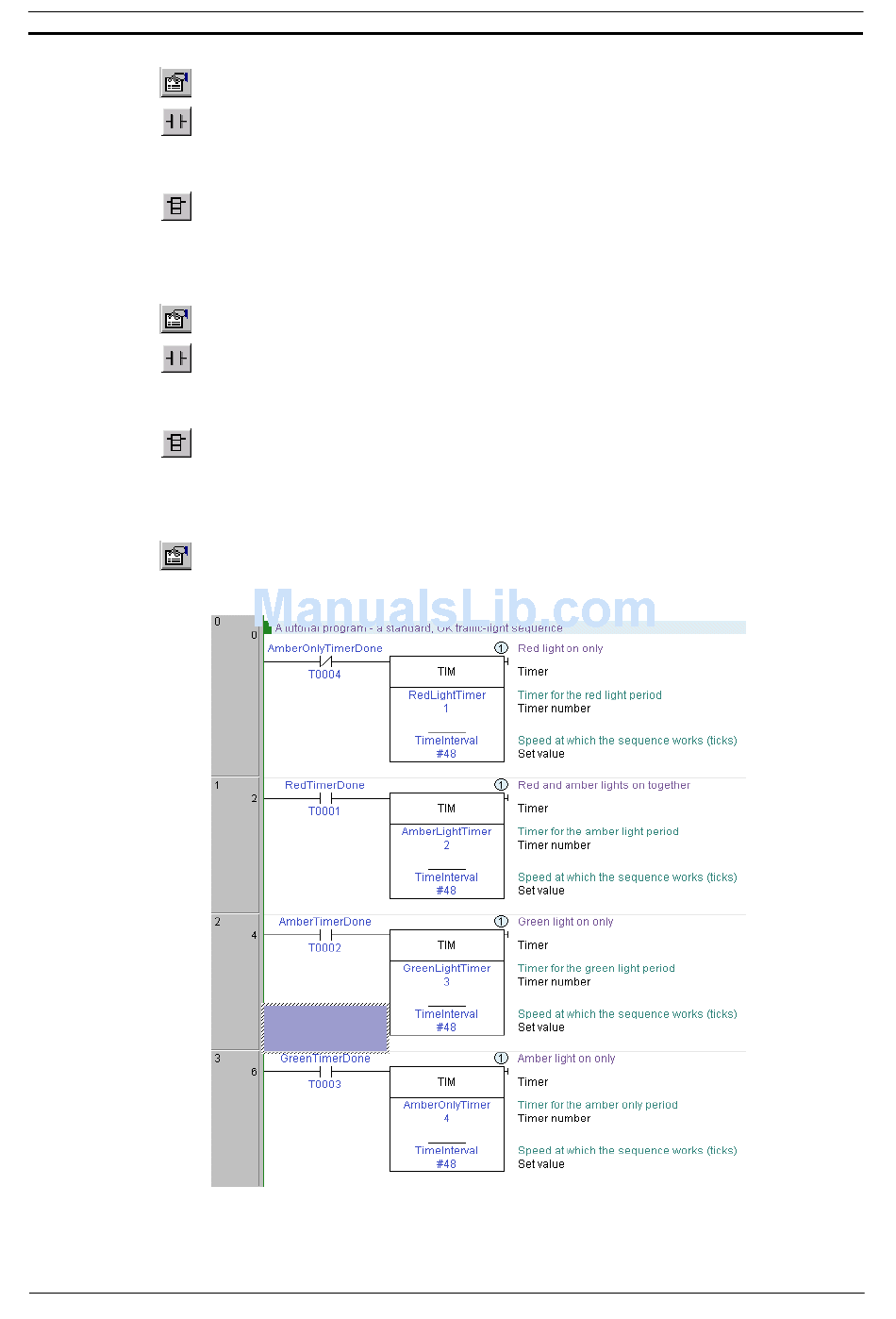

The Ladder Program should resemble that illustrated (depending upon the display options chosen).
Use the following procedure to place an output for each of the traffic lights into the program.
1, 2, 3...
CX-Programmer _Page 22
13. Give the instruction a comment of 'Red and amber lights on together'.
14. Place a New Contact at the start of the next rung to display the New Contact dialog.
15. Select 'AmberTimerDone' from the combo and select the OK pushbutton. When a
comment dialog is displayed, select the OK pushbutton again.
16. Place an instruction next to the Contact and display the New Instruction dialog. Enter the
instruction 'TIM' and the two operands 'GreenLightTimer' and 'TimeInterval' in the edit
box. When a comment dialog is displayed, select the OK pushbutton again.
17. Select the OK pushbutton to accept the settings in the New Instruction dialog. When a
comment dialog is displayed, select the OK pushbutton again.
18. Give the instruction the comment 'Green light on only'.
19. Place a New Contact at the start of the next rung to display the New Contact dialog.
20. Select 'GreenTimerDone' from the combo and select the OK pushbutton. When a
comment dialog is displayed, select the OK pushbutton again.
21. Place an instruction next to the Contact and display the New Instruction dialog. Enter the
instruction 'TIM' and the two operands 'AmberOnlyTimer' and 'TimeInterval' in the
edit box.
22. Select the OK pushbutton to accept the settings in the New Instruction dialog. When a
comment dialog is displayed, select the OK pushbutton again.
23. Give the instruction a comment of 'Amber light on only'.
1. Ensure the Ladder program is displayed in the Diagram Workspace.
