Integrated control software for F150-3
Vision Composer
Revolutionizing inspection based on image processing
Although visual sensors can be used based on simple menu settings, they have tended to lack functionality. On the other hand,
full-featured advanced image processing devices are capable of a variety of functions, but special programming is necessary.
The Vision Conposer makes it easy to achieve the optimum inspection in flowchart format.
a dialog box for item's conditions
Double-click on a box in the flow
chart to bring up a dialog box for
that particular item's conditions.
Easy operation without a manual
Operation is guided by abundant
help/guidance displays. It is not necessary
to operate it in manual one hand.
Vision Composer
"Vision Composer" control software
makes it easy to achieve the optimum
inspection in flowchart format
Features

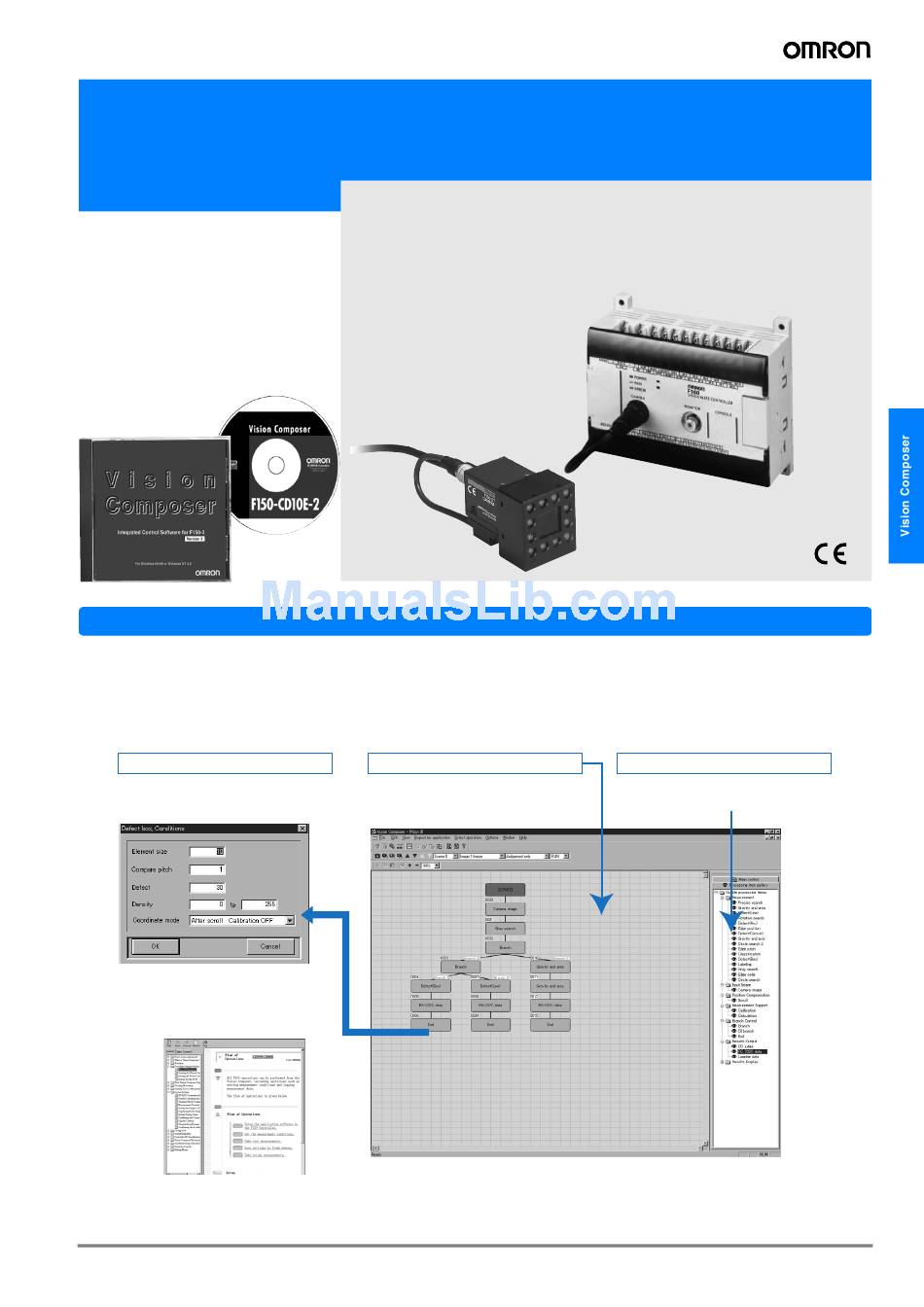

Inspection application edit window
The contents of inspection are displayed by
the flow chart. The flow of processing is
known at a glance.
B Double-Click
Processing item gallery
The list of processing items is displayed. Operators can
create flow charts by dragging and dropping items from a
library of process items.
A Drag & Drop
C-21
