Transferring Automatic Data Link Setup Parameters to the Startup Node

The automatic data link parameters that have been set are then sent to the connected startup node PLC. It is also
possible to read the automatic data link parameters that have been set for the PLC.
Transferring Data to the Startup Node PLC
1 Click the Write button in either the Automatic Datalink (Controller Link) or the Automatic Datalink Setup
dialog box.

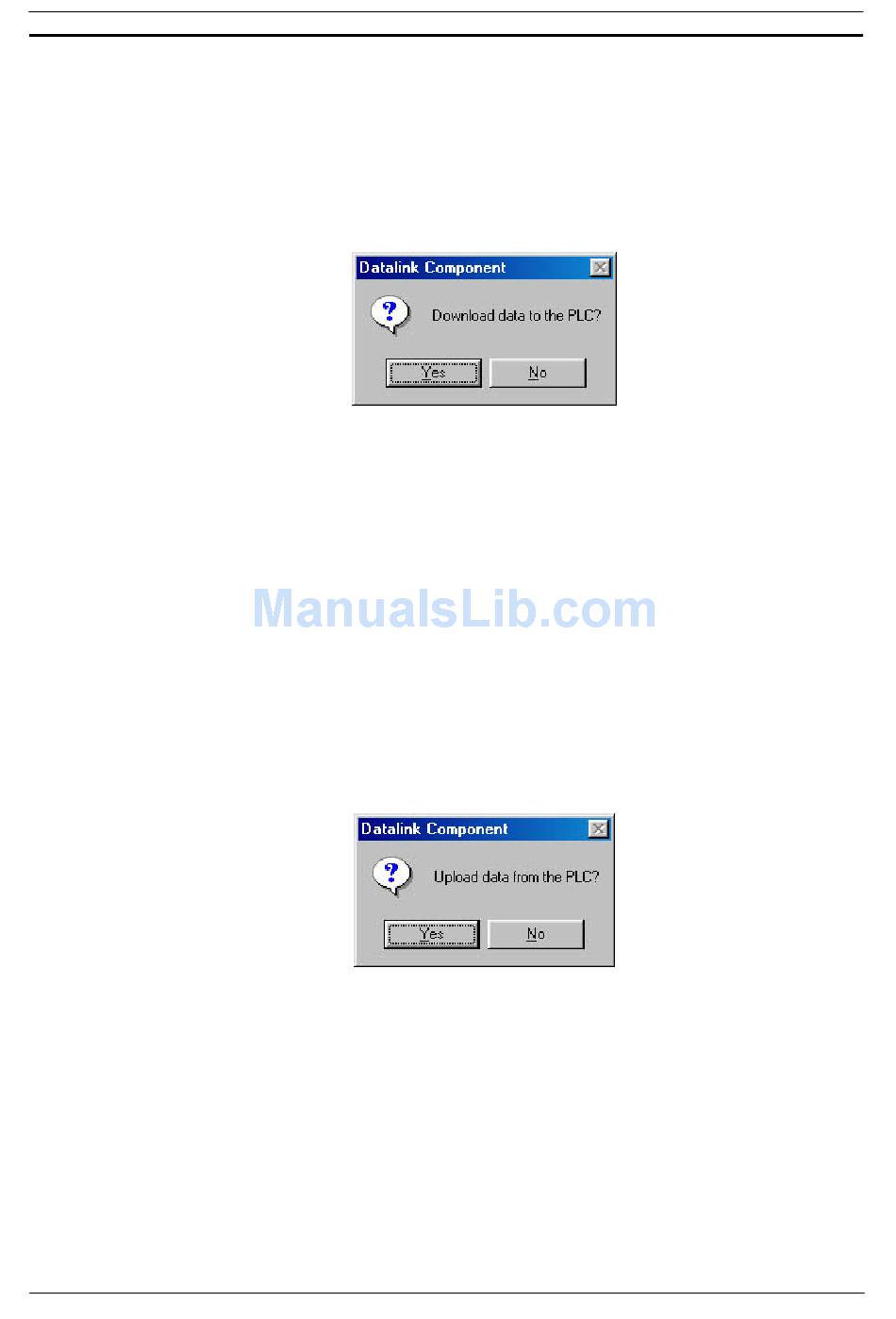

The following dialog box will be displayed for confirmation.
2 Click the Yes button.
The set data will be transferred to the startup node PLC.
Reading Data from the Startup Node
Perform this operation to check or change settings.
1 Click the Read button in either the Automatic Datalink (Controller Link) or the Automatic Datalink Setup
dialog box.
The following dialog box will be displayed for confirmation.
2 Click the Yes button.
The set data will be transferred from the PLC and displayed at the Automatic Datalink (Controller Link) or the
Automatic Datalink Setup dialog box.
Note: • The data link mode (manual/automatic) and data link operation are determined by the
data link setup at the startup node. With automatic setup, it is necessary to set, for the
startup node, the data link mode (automatic) and the number of data link words in the
Automatic Datalink Setup dialog box. If these are not set correctly, the data links will
not start.
• Before starting the data links with automatic setup, make sure that the correct automatic
data link setup parameters are set for the data link startup node. If incorrect automatic
data link setup parameters are set, it may cause the equipment to operate unpredictably.
Even when the correct parameters are set, make sure that there will be no adverse effect
on the equipment before starting or stopping the data links.
