Reference: Fast Datalink Wizard Settings
It is possible to generate a table with all nodes set for the same PLC type and the same
areas (using Fast Default Table Generation), and then to modify individual nodes in the
Node Editing window as required.
Make the settings as follows:

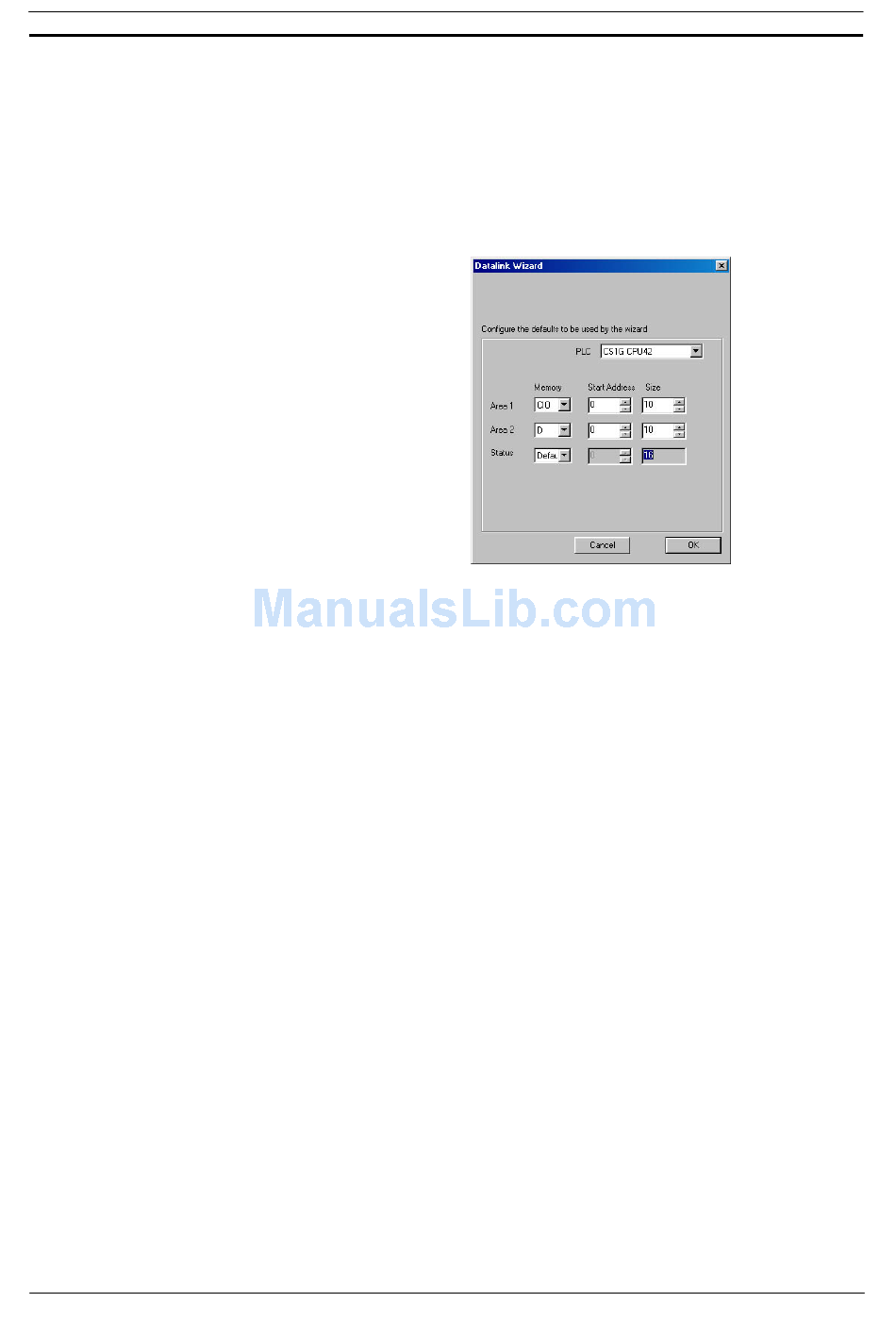

1 Click the Defaults button and then set the default values in the following
dialog box.
2 Select the Fast Default Table Generation option, and then click the Next
button or press the Enter key.
The settings for all participating nodes will be generated at the above
default values.
♦ PLC type
♦ Memory area, data link start address, communications data size
♦ Status memory area
