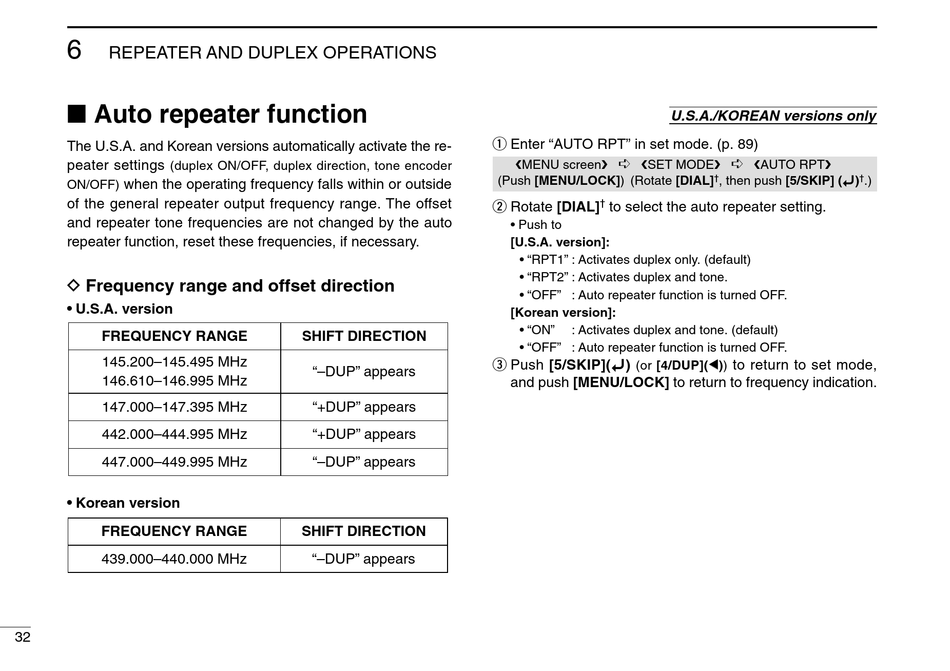

I Auto Repeater Function - Icom IC-91A Instruction Manual

6
REPEATER AND DUPLEX OPERATIONS

I Auto repeater function

The U.S.A. and Korean versions automatically activate the re-
peater settings
(duplex ON/OFF, duplex direction, tone encoder
when the operating frequency falls within or outside
ON/OFF)
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function, reset these frequencies, if necessary.
D Frequency range and offset direction
• U.S.A. version
FREQUENCY RANGE
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
• Korean version
FREQUENCY RANGE
439.000–440.000 MHz
32
SHIFT DIRECTION
"–DUP" appears
"+DUP" appears
"+DUP" appears
"–DUP" appears
SHIFT DIRECTION
"–DUP" appears
U.S.A./KOREAN versions only
q Enter "AUTO RPT" in set mode. (p. 89)
➪
MENU screen SET MODE
(Push [MENU/LOCK]) (Rotate [DIAL]
w Rotate [DIAL] †
to select the auto repeater setting.
• Push to
[U.S.A. version]:
• "RPT1" : Activates duplex only. (default)
• "RPT2" : Activates duplex and tone.
• "OFF" : Auto repeater function is turned OFF.
[Korean version]:
• "ON" : Activates duplex and tone. (default)
• "OFF" : Auto repeater function is turned OFF.
e Push [5/SKIP](ï)
(or [4/DUP](Ω Ω ))
and push [MENU/LOCK] to return to frequency indication.
➪
AUTO RPT
† †
, then push [5/SKIP] (ï) .)
to return to set mode,
