Icom IC-91A Instruction Manual page 36

6
REPEATER AND DUPLEX OPERATIONS

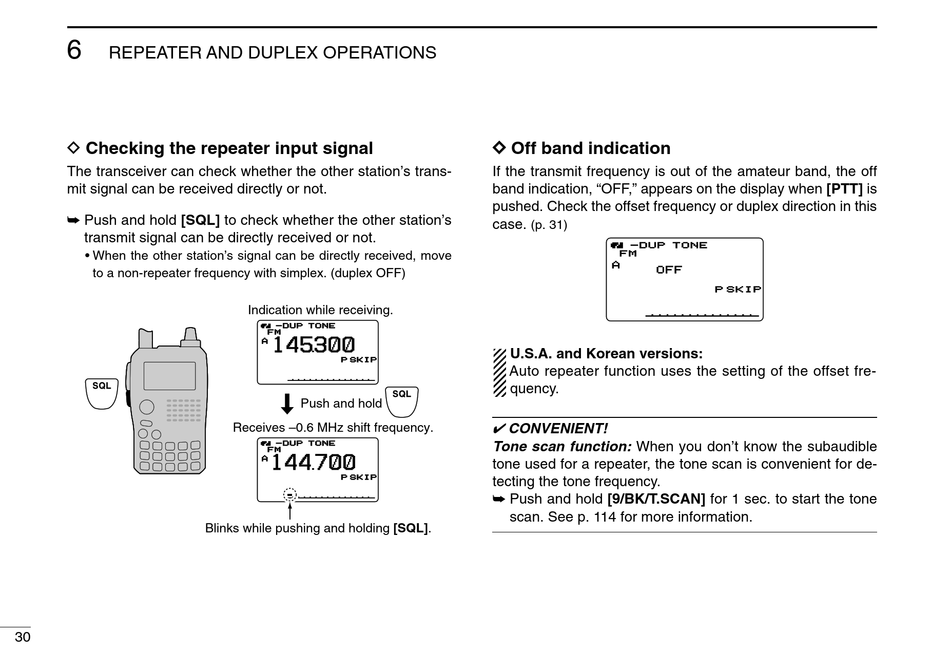

D Checking the repeater input signal
The transceiver can check whether the other station's trans-
mit signal can be received directly or not.
➥ Push and hold [SQL] to check whether the other station's
transmit signal can be directly received or not.
• When the other station's signal can be directly received, move
to a non-repeater frequency with simplex. (duplex OFF)
30
Indication while receiving.
-DUP TONE
FM
145300
A
P SKIP
Push and hold
Receives –0.6 MHz shift frequency.
-DUP TONE
FM
144 700
A
P SKIP
Blinks while pushing and holding [SQL].
D D Off band indication
If the transmit frequency is out of the amateur band, the off
band indication, "OFF," appears on the display when [PTT] is
pushed. Check the offset frequency or duplex direction in this
case.
(p. 31)
-DUP -DUP
FM FM
A
OFF OFF
U.S.A. and Korean versions:
Auto repeater function uses the setting of the offset fre-
quency.
✔ CONVENIENT!
Tone scan function: When you don't know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency.
➥ Push and hold [9/BK/T.SCAN] for 1 sec. to start the tone
scan. See p. 114 for more information.
TONE TONE
P SKIP SKIP
