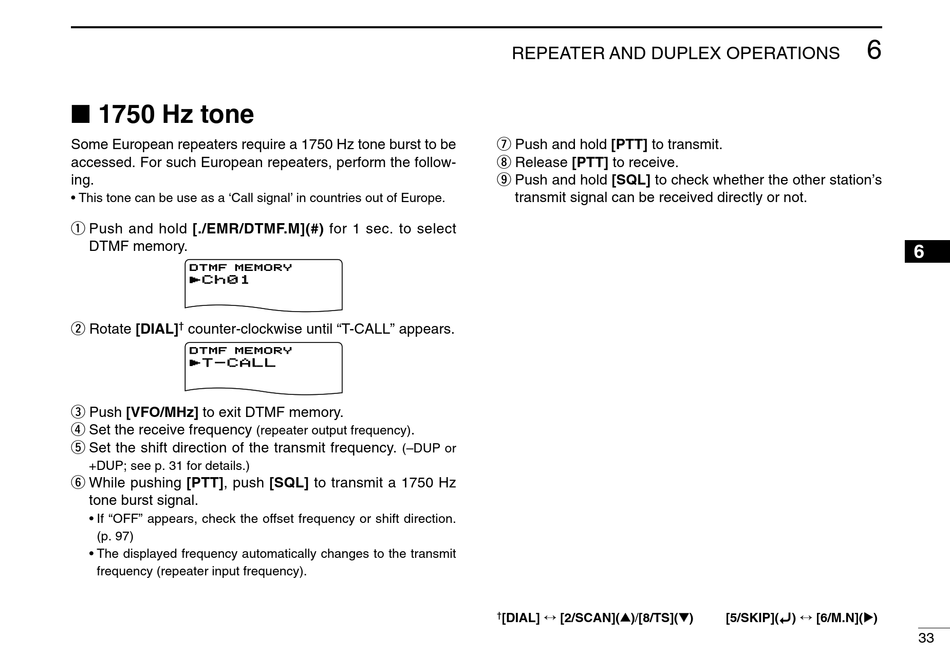

I 1750 Hz tone

Some European repeaters require a 1750 Hz tone burst to be
accessed. For such European repeaters, perform the follow-
ing.
• This tone can be use as a 'Call signal' in countries out of Europe.
q Push and hold [./EMR/DTMF.M](#) for 1 sec. to select
DTMF memory.
DTMF MEMORY
Ch01 Ch01
r
w Rotate [DIAL] †
counter-clockwise until "T-CALL" appears.
DTMF MEMORY
T-CALL T-CALL
r
e Push [VFO/MHz] to exit DTMF memory.
r Set the receive frequency
t Set the shift direction of the transmit frequency.
+DUP; see p. 31 for details.)
y While pushing [PTT], push [SQL] to transmit a 1750 Hz
tone burst signal.
• If "OFF" appears, check the offset frequency or shift direction.
(p. 97)
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
.
(repeater output frequency)
(–DUP or
REPEATER AND DUPLEX OPERATIONS
u Push and hold [PTT] to transmit.
i Release [PTT] to receive.
o Push and hold [SQL] to check whether the other station's
transmit signal can be received directly or not.
[DIAL] ↔ [2/SCAN](∫ ∫ )/[8/TS](√ √ )
†
