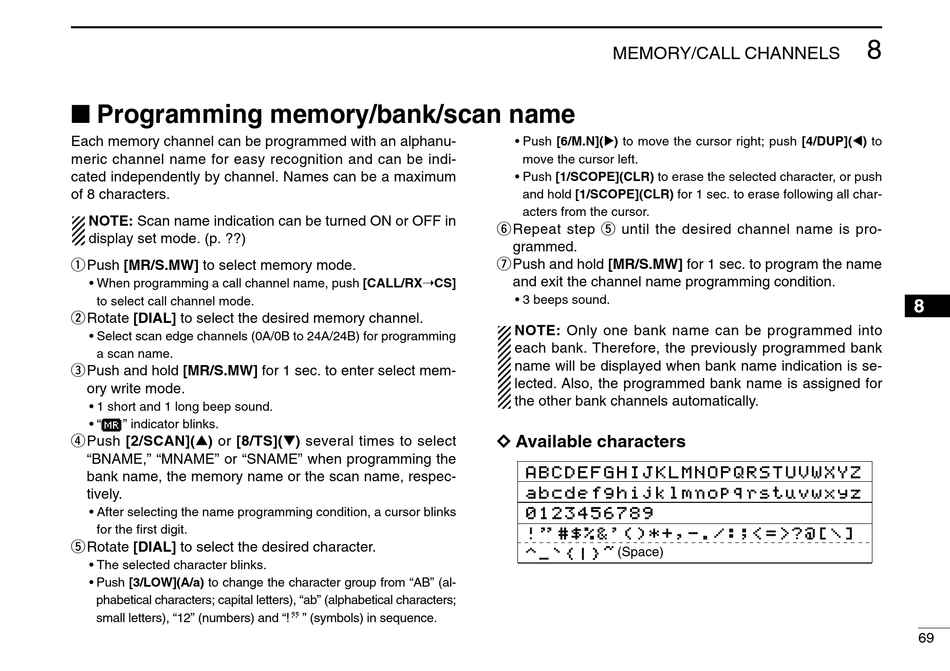

I Programming memory/bank/scan name

Each memory channel can be programmed with an alphanu-
meric channel name for easy recognition and can be indi-
cated independently by channel. Names can be a maximum
of 8 characters.
NOTE: Scan name indication can be turned ON or OFF in
display set mode. (p. ??)
q Push [MR/S.MW] to select memory mode.
• When programming a call channel name, push [CALL/RX➝CS]
to select call channel mode.
w Rotate [DIAL] to select the desired memory channel.
• Select scan edge channels (0A/0B to 24A/24B) for programming
a scan name.
ePush and hold [MR/S.MW] for 1 sec. to enter select mem-
ory write mode.
• 1 short and 1 long beep sound.
• "µ µ
" indicator blinks.
rPush [2/SCAN](∫ ∫ ) or [8/TS](√ √ ) several times to select
"BNAME," "MNAME" or "SNAME" when programming the
bank name, the memory name or the scan name, respec-
tively.
• After selecting the name programming condition, a cursor blinks
for the first digit.
tRotate [DIAL] to select the desired character.
• The selected character blinks.
• Push [3/LOW](A/a) to change the character group from "AB" (al-
phabetical characters; capital letters), "ab" (alphabetical characters;
small letters), "12" (numbers) and "!' '" (symbols) in sequence.
MEMORY/CALL CHANNELS
• Push [6/M.N](≈ ≈ ) to move the cursor right; push [4/DUP](Ω Ω ) to
move the cursor left.
• Push [1/SCOPE](CLR) to erase the selected character, or push
and hold [1/SCOPE](CLR) for 1 sec. to erase following all char-
acters from the cursor.
yRepeat step t until the desired channel name is pro-
grammed.
uPush and hold [MR/S.MW] for 1 sec. to program the name
and exit the channel name programming condition.
• 3 beeps sound.
NOTE: Only one bank name can be programmed into
each bank. Therefore, the previously programmed bank
name will be displayed when bank name indication is se-
lected. Also, the programmed bank name is assigned for
the other bank channels automatically.
D D Available characters
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m n o p q r s t u v w x y z
0 1 2 3 4 5 6 7 8 9
! ' ' # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ]
^ _ ` { | } ~ (Space)
