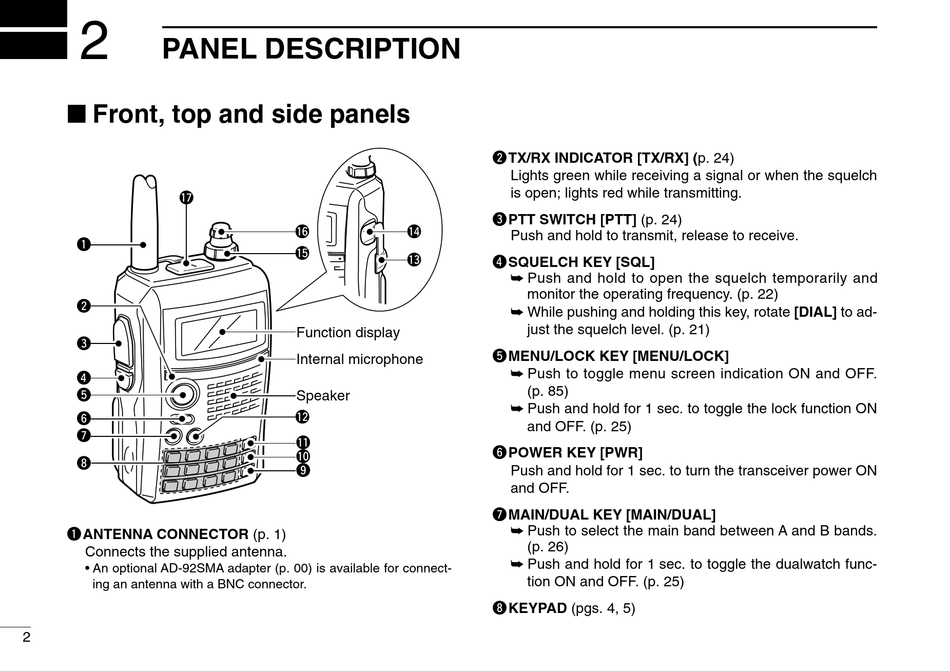

PANEL DESCRIPTION

I Front, top and side panels

!7
q
w
e
r
t
y
u
i
q ANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
• An optional AD-92SMA adapter (p. 00) is available for connect-
ing an antenna with a BNC connector.
2
!4
!6
!5
!3
Function display
Internal microphone
Speaker
!2
!1
!0
o
w TX/RX INDICATOR [TX/RX] (p. 24)
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting.
e PTT SWITCH [PTT] (p. 24)
Push and hold to transmit, release to receive.
r SQUELCH KEY [SQL]
➥ Push and hold to open the squelch temporarily and
monitor the operating frequency. (p. 22)
➥ While pushing and holding this key, rotate [DIAL] to ad-
just the squelch level. (p. 21)
t MENU/LOCK KEY [MENU/LOCK]
➥ Push to toggle menu screen indication ON and OFF.
(p. 85)
➥ Push and hold for 1 sec. to toggle the lock function ON
and OFF. (p. 25)
y POWER KEY [PWR]
Push and hold for 1 sec. to turn the transceiver power ON
and OFF.
u MAIN/DUAL KEY [MAIN/DUAL]
➥ Push to select the main band between A and B bands.
(p. 26)
➥ Push and hold for 1 sec. to toggle the dualwatch func-
tion ON and OFF. (p. 25)
i KEYPAD (pgs. 4, 5)
