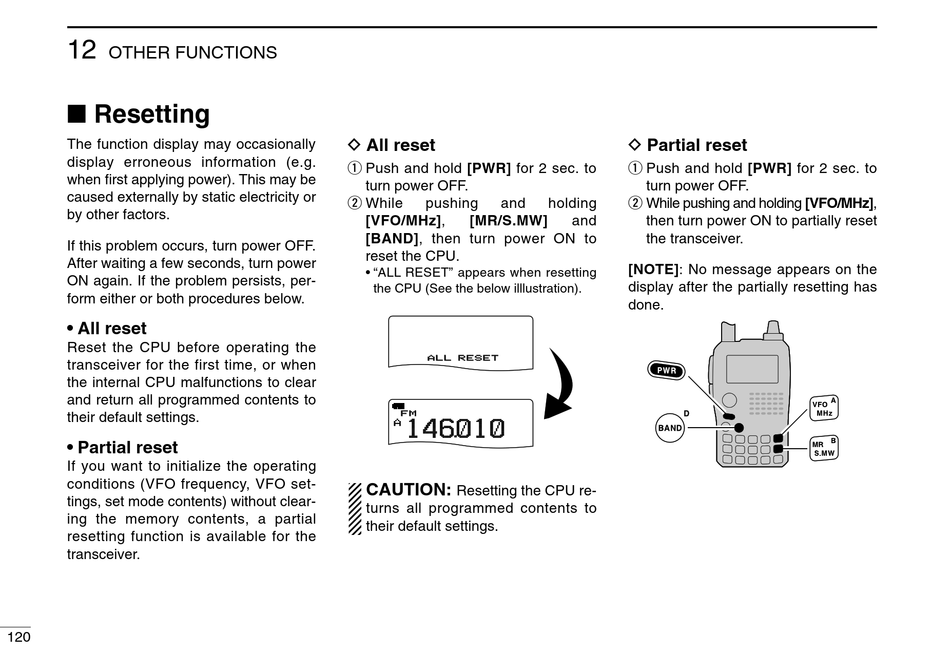

I Resetting - Icom IC-91A Instruction Manual

12
OTHER FUNCTIONS

I Resetting

The function display may occasionally
display erroneous information (e.g.
when first applying power). This may be
caused externally by static electricity or
by other factors.
If this problem occurs, turn power OFF.
After waiting a few seconds, turn power
ON again. If the problem persists, per-
form either or both procedures below.
• All reset
Reset the CPU before operating the
transceiver for the first time, or when
the internal CPU malfunctions to clear
and return all programmed contents to
their default settings.
• Partial reset
If you want to initialize the operating
conditions (VFO frequency, VFO set-
tings, set mode contents) without clear-
ing the memory contents, a partial
resetting function is available for the
transceiver.
120
D All reset
q Push and hold [PWR] for 2 sec. to
turn power OFF.
w While
pushing and
[VFO/MHz], [MR/S.MW]
[BAND], then turn power ON to
reset the CPU.
• "ALL RESET" appears when resetting
the CPU (See the below illlustration).
ALL RESET ALL RESET
+DUP +DUP DTCS DTCS
FM FM PRIO WX PRIO WX EMR EMR
146010
25
A
B
CAUTION:
Resetting the CPU re-
turns all programmed contents to
their default settings.
D Partial reset
q Push and hold [PWR] for 2 sec. to
turn power OFF.
w While pushing and holding [VFO/MHz],
holding
and then turn power ON to partially reset
the transceiver.
[NOTE]: No message appears on the
display after the partially resetting has
done.
ALL RESET
+DUP DTCS
FM PRIO WX EMR
146010
A
B
25
