4
BASIC OPERATION

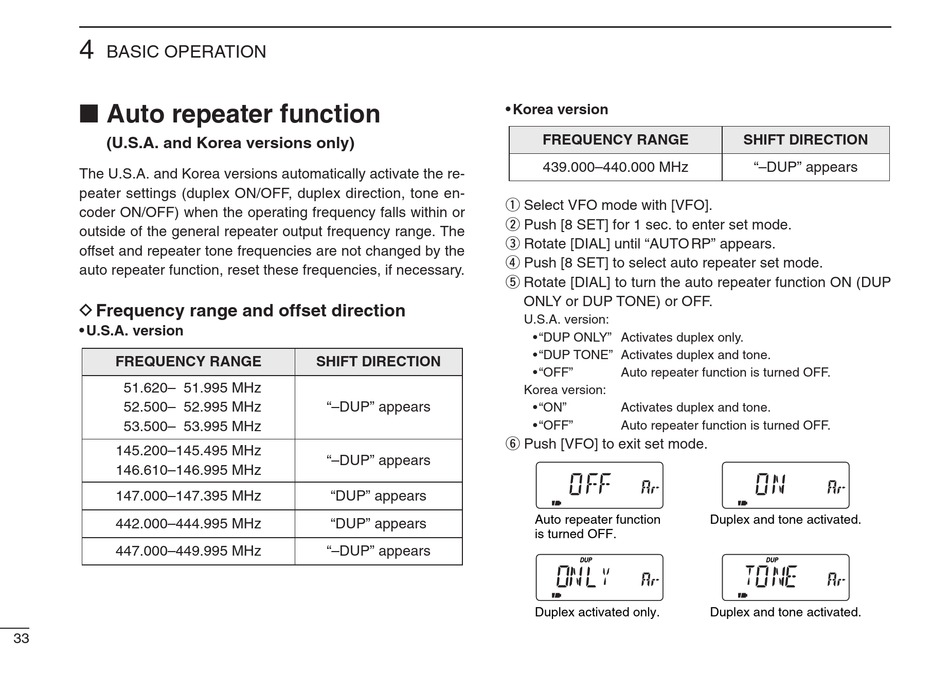

I Auto repeater function
(U.S.A. and Korea versions only)
The U.S.A. and Korea versions automatically activate the re-
peater settings (duplex ON/OFF, duplex direction, tone en-
coder ON/OFF) when the operating frequency falls within or
outside of the general repeater output frequency range. The
offset and repeater tone frequencies are not changed by the
auto repeater function, reset these frequencies, if necessary.
D Frequency range and offset direction
• U.S.A. version
FREQUENCY RANGE
151.620–151.995 MHz
152.500–152.995 MHz
153.500–153.995 MHz
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
33
SHIFT DIRECTION
"–DUP" appears
"–DUP" appears
"DUP" appears
"DUP" appears
"–DUP" appears
• Korea version
FREQUENCY RANGE
439.000–440.000 MHz
q Select VFO mode with [VFO].
w Push [8 SET] for 1 sec. to enter set mode.
e Rotate [DIAL] until "AUTO RP" appears.
r Push [8 SET] to select auto repeater set mode.
t Rotate [DIAL] to turn the auto repeater function ON (DUP
ONLY or DUP TONE) or OFF.
U.S.A. version:
• "DUP ONLY" Activates duplex only.
• "DUP TONE" Activates duplex and tone.
• "OFF"
Auto repeater function is turned OFF.
Korea version:
• "ON"
Activates duplex and tone.
• "OFF"
Auto repeater function is turned OFF.
y Push [VFO] to exit set mode.
Auto repeater function
is turned OFF.
DUP
Duplex activated only.
SHIFT DIRECTION
"–DUP" appears
Duplex and tone activated.
DUP
Duplex and tone activated.
