7

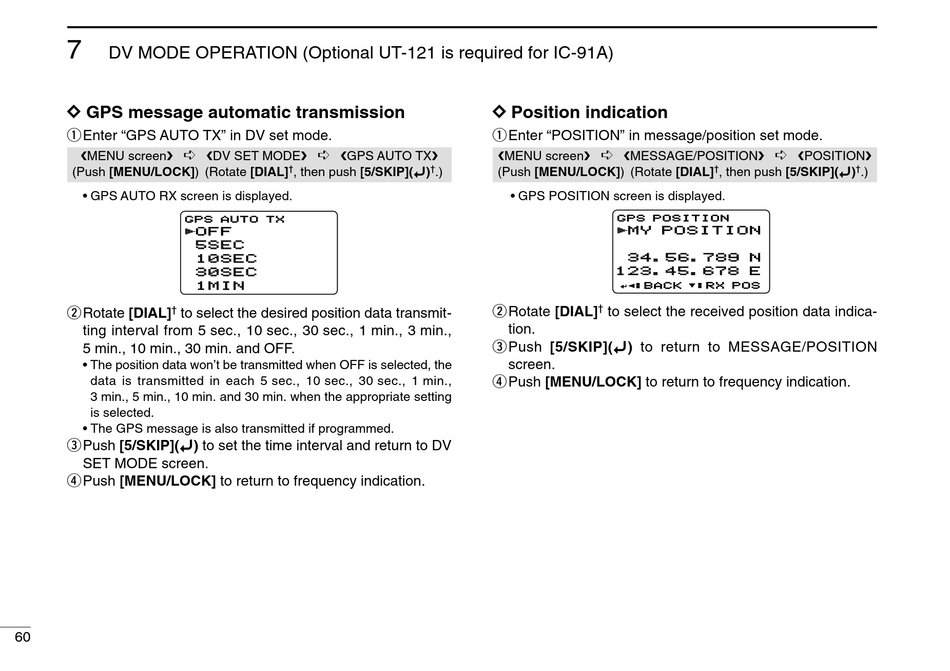

DV MODE OPERATION (Optional UT-121 is required for IC-91A)
D D GPS message automatic transmission
q Enter "GPS AUTO TX" in DV set mode.
➪
MENU screen
(Push [MENU/LOCK]) (Rotate [DIAL]
• GPS AUTO RX screen is displayed.
GPS AUTO TX GPS AUTO TX
r
wRotate [DIAL]
†
to select the desired position data transmit-
ting interval from 5 sec., 10 sec., 30 sec., 1 min., 3 min.,
5 min., 10 min., 30 min. and OFF.
• The position data won't be transmitted when OFF is selected, the
data is transmitted in each 5 sec., 10 sec., 30 sec., 1 min.,
3 min., 5 min., 10 min. and 30 min. when the appropriate setting
is selected.
• The GPS message is also transmitted if programmed.
ePush [5/SKIP](ï) to set the time interval and return to DV
SET MODE screen.
r Push [MENU/LOCK] to return to frequency indication.
60
➪
DV SET MODE GPS AUTO TX
†
, then push [5/SKIP](ï)
OFF
5SEC 5SEC
10SEC 10SEC
30SEC 30SEC
1MIN 1MIN
D D Position indication
q Enter "POSITION" in message/position set mode.
➪
MENU screen
†
.) (Push [MENU/LOCK]) (Rotate [DIAL]
• GPS POSITION screen is displayed.
wRotate [DIAL] †
to select the received position data indica-
tion.
ePush [5/SKIP](ï) to return to MESSAGE/POSITION
screen.
r Push [MENU/LOCK] to return to frequency indication.
➪
MESSAGE/POSITION
†
, then push [5/SKIP](ï)
GPS POSITION GPS POSITION
MY POSITION
r
34.56.789 N 34.56.789 N
123.45.678 E 123.45.678 E
:BACK :BACK :RX POS :RX POS
POSITION
†
.)
