I Erasing/Transferring Bank Contents - Icom IC-91A Instruction Manual

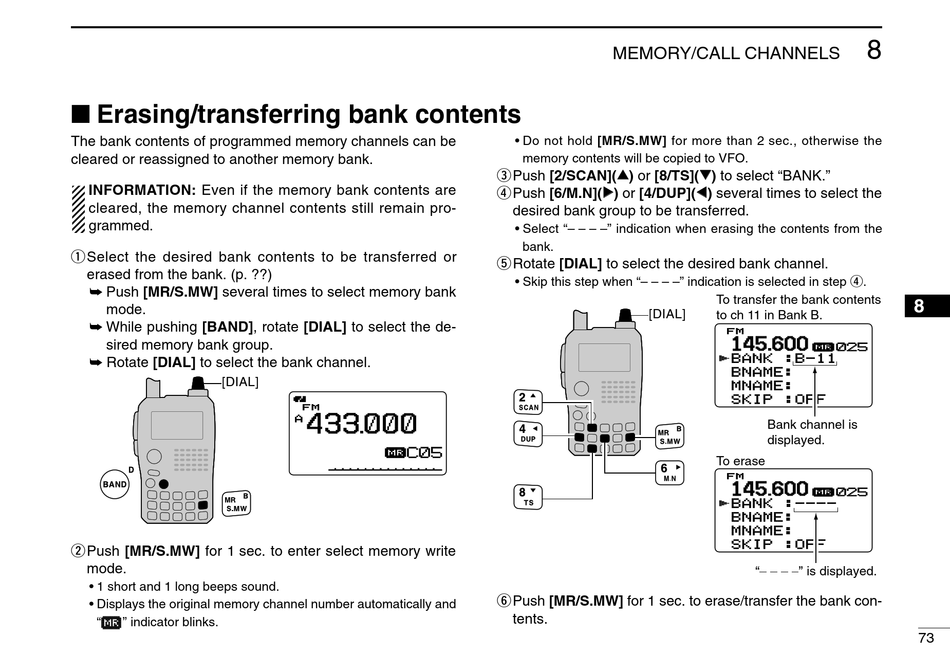

I Erasing/transferring bank contents

The bank contents of programmed memory channels can be
cleared or reassigned to another memory bank.
INFORMATION: Even if the memory bank contents are
cleared, the memory channel contents still remain pro-
grammed.
qSelect the desired bank contents to be transferred or
erased from the bank. (p. ??)
➥ Push [MR/S.MW] several times to select memory bank
mode.
➥ While pushing [BAND], rotate [DIAL] to select the de-
sired memory bank group.
➥ Rotate [DIAL] to select the bank channel.
[DIAL]
wPush [MR/S.MW] for 1 sec. to enter select memory write
mode.
• 1 short and 1 long beeps sound.
• Displays the original memory channel number automatically and
"µ µ
" indicator blinks.
FM
433 000
A
µ C05
MEMORY/CALL CHANNELS
• Do not hold [MR/S.MW] for more than 2 sec., otherwise the
memory contents will be copied to VFO.
ePush [2/SCAN](∫ ∫ ) or [8/TS](√ √ ) to select "BANK."
rPush [6/M.N](≈ ≈ ) or [4/DUP](Ω Ω ) several times to select the
desired bank group to be transferred.
• Select "– – – –" indication when erasing the contents from the
bank.
t Rotate [DIAL] to select the desired bank channel.
• Skip this step when "– – – –" indication is selected in step r.
[DIAL]
FM
433 000
A
µ 001
FM
433 000
A
µ C05
yPush [MR/S.MW] for 1 sec. to erase/transfer the bank con-
tents.
8
To transfer the bank contents
to ch 11 in Bank B.
FM
145 600
µ 025
BANK :B-11
r
BNAME:
MNAME:
SKIP :OFF
Bank channel is
displayed.
To erase
FM
145 600
µ 025
BANK :----
r
BNAME:
MNAME:
SKIP :OFF
is displayed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
73
