15
REPEATER AND DUPLEX OPERATIONS

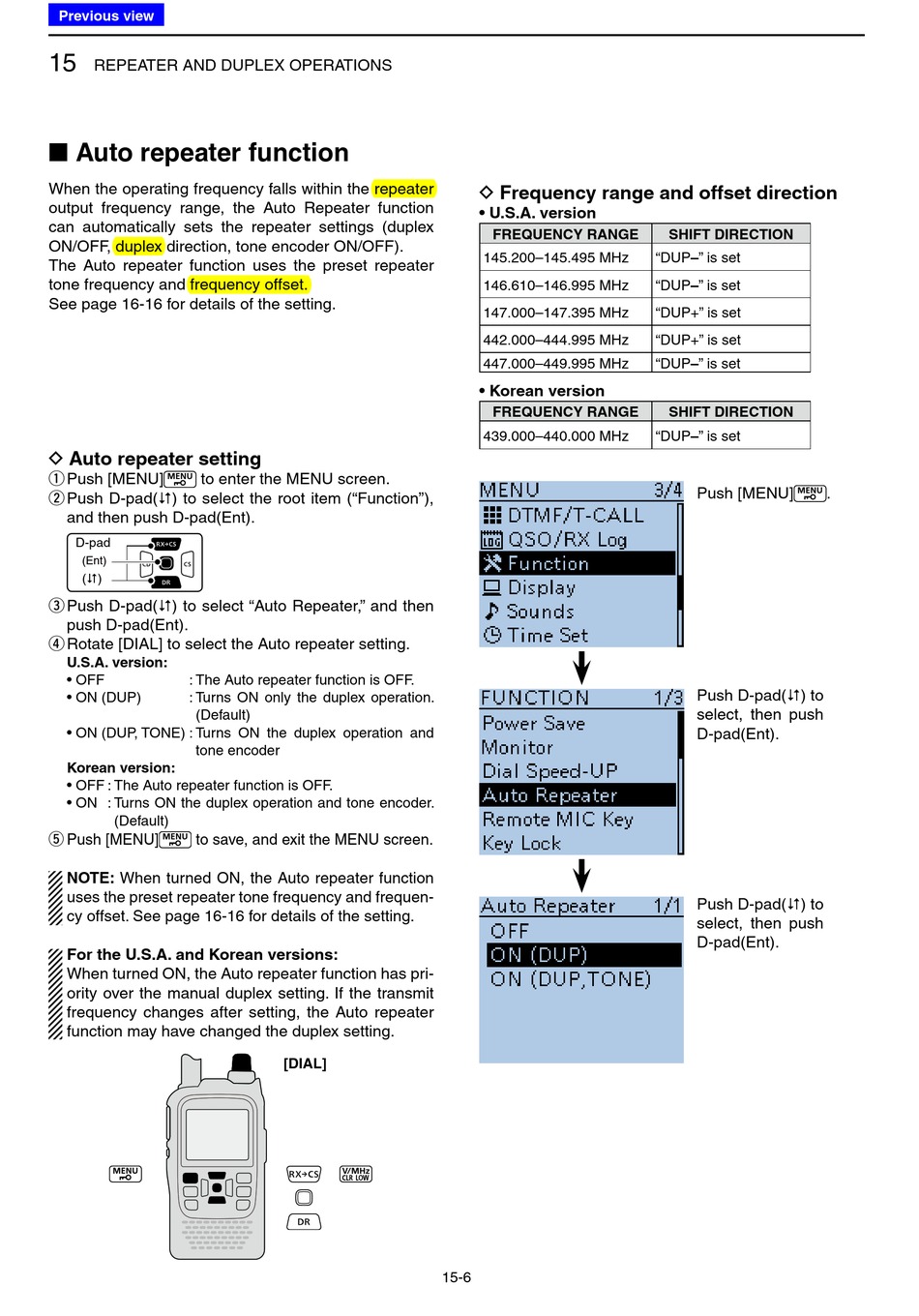

■ Auto repeater function

When the operating frequency falls within the repeater
output frequency range, the Auto Repeater function
can automatically sets the repeater settings (duplex
ON/OFF, duplex direction, tone encoder ON/OFF).
The Auto repeater function uses the preset repeater
tone frequency and frequency offset.
See page 16-16 for details of the setting.

D Auto repeater setting

Push [MENU] to enter the MENU screen.
q
Push D-pad( ) to select the root item ("Function"),
w
and then push D-pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select "Auto Repeater," and then
e
push D-pad(Ent).
Rotate [DIAL] to select the Auto repeater setting.
r
U.S.A. version:
• OFF : The Auto repeater function is OFF.
• ON (DUP) : Turns ON only the duplex operation.
(Default)
• ON (DUP, TONE) : Turns ON the duplex operation and
tone encoder
Korean version:
• OFF : The Auto repeater function is OFF.
• ON : Turns ON the duplex operation and tone encoder.
(Default)
Push [MENU] to save, and exit the MENU screen.
t
NOTE: When turned ON, the Auto repeater function
uses the preset repeater tone frequency and frequen-
cy offset. See page 16-16 for details of the setting.
For the U.S.A. and Korean versions:
When turned ON, the Auto repeater function has pri-
ority over the manual duplex setting. If the transmit
frequency changes after setting, the Auto repeater
function may have changed the duplex setting.
[DIAL]
15-6
D Frequency range and offset direction
• U.S.A. version
FREQUENCY RANGE
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
• Korean version
FREQUENCY RANGE
439.000–440.000 MHz
SHIFT DIRECTION
"DUP–" is set
"DUP–" is set
"DUP+" is set
"DUP+" is set
"DUP–" is set
SHIFT DIRECTION
"DUP–" is set
Push [MENU] .
Push D-pad() to
select, then push
D-pad(Ent).
Push D-pad() to
select, then push
D-pad(Ent).
