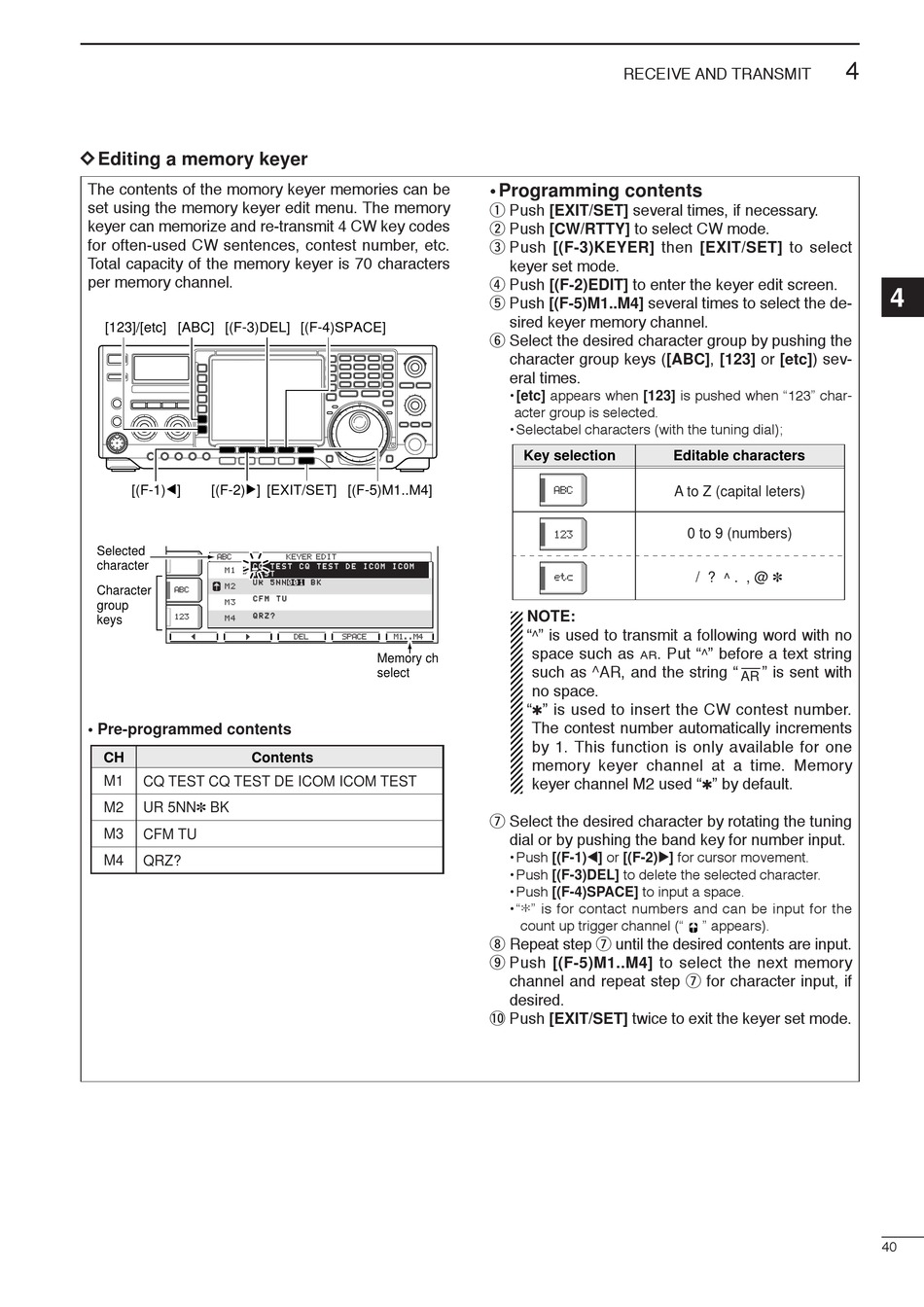

D D Editing a memory keyer
The contents of the momory keyer memories can be
set using the memory keyer edit menu. The memory
keyer can memorize and re-transmit 4 CW key codes
for often-used CW sentences, contest number, etc.
Total capacity of the memory keyer is 70 characters
per memory channel.
[123]/[etc] [ABC] [(F-3)DEL] [(F-4)SPACE]
[(F-1)Ω] [(F-2)≈]
Selected
ABC ABC
character
C Q T E S T C Q
M 1 M 1
T E S T T E S T
U R U R 5 N N
M 2 M 2
Character
ABC ABC
C F M C F M T U
M 3 M 3
group
Q R Z ? Q R Z ?
123 123
keys M 4 M 4
ç å
• Pre-programmed contents
CH Contents
M1
CQ TEST CQ TEST DE ICOM ICOM TEST
M2 UR 5NN✽ BK
M3 CFM TU
M4 QRZ?
[EXIT/SET] [(F-5)M1..M4]
K EY ER ED IT K E Y E R E D I T
T E S T C Q C Q T E S T T E S T D E D E I C O M I C O M I C O M I C O M
5 N N 0 0 1 0 0 1 B K B K
T U
DEL DEL SPACE SPACE M1..M4 M1..M4
Memory ch
select
RECEIVE AND TRANSMIT
• Programming contents
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select CW mode.
e Push [(F-3)KEYER] then [EXIT/SET] to select
keyer set mode.
r Push [(F-2)EDIT] to enter the keyer edit screen.
t Push [(F-5)M1..M4] several times to select the de-
sired keyer memory channel.
y Select the desired character group by pushing the
character group keys ([ABC], [123] or [etc]) sev-
eral times.
• [etc] appears when [123] is pushed when "123" char-
acter group is selected.
• Selectabel characters (with the tuning dial);
Key selection
ABC ABC
123 123
etc etc
NOTE:
" " is used to transmit a following word with no
^
space such as . Put "
AR
such as ^AR, and the string "
no space.
✱
" " is used to insert the CW contest number.
The contest number automatically increments
by 1. This function is only available for one
memory keyer channel at a time. Memory
keyer channel M2 used "
u Select the desired character by rotating the tuning
dial or by pushing the band key for number input.
• Push [(F-1)Ω Ω ] or [(F-2)≈ ≈ ] for cursor movement.
• Push [(F-3)DEL] to delete the selected character.
• Push [(F-4)SPACE] to input a space.
• "*" is for contact numbers and can be input for the
count up trigger channel ("
i Repeat step u until the desired contents are input.
o Push [(F-5)M1..M4] to select the next memory
channel and repeat step u for character input, if
desired.
!0 Push [EXIT/SET] twice to exit the keyer set mode.
4
Editable characters
A to Z (capital leters)
0 to 9 (numbers)
/ ? ^ . , @ ✽
" before a text string
^
" is sent with
AR
✱
" by default.
" appears).
