6
FUNCTION FOR TRANSMIT

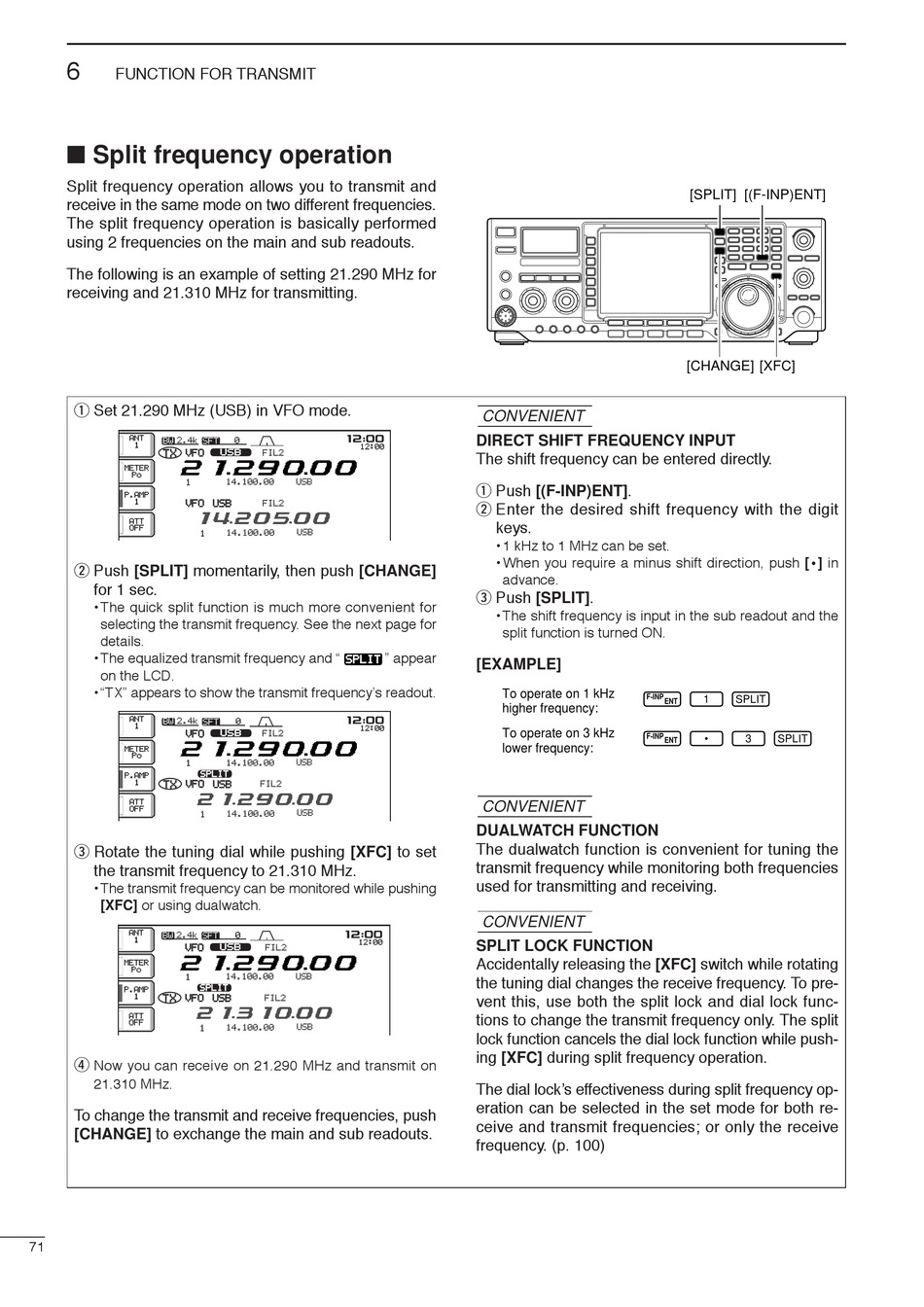

■ Split frequency operation

Split frequency operation allows you to transmit and
receive in the same mode on two different frequencies.
The split frequency operation is basically performed
using 2 frequencies on the main and sub readouts.
The following is an example of setting 21.290 MHz for
receiving and 21.310 MHz for transmitting.
q Set 21.290 MHz (USB) in VFO mode.
ANT ANT
BW BW 2.4k 2.4k SFT SFT
1
T X TX VFO VFO
wq.wop.pp
METER METER
Po Po
1
P.AMP P.AMP
1
VFO VFO
qr.wpt.pp
ATT ATT
OFF OFF
1
w Push [SPLIT] momentarily, then push [CHANGE]
for 1 sec.
• The quick split function is much more convenient for
selecting the transmit frequency. See the next page for
details.
• The equalized transmit frequency and "
on the LCD.
• "TX" appears to show the transmit frequency's readout.
ANT ANT
2.4k 2.4k
BW BW SFT SFT
1
VFO VFO
wq.wop.pp
METER METER
Po Po
1
SPLIT S P L I T
P.AMP P.AMP
1 VFO VFO
T X TX
wq.wop.pp
ATT ATT
OFF OFF
1
e Rotate the tuning dial while pushing [XFC] to set
the transmit frequency to 21.310 MHz.
• The transmit frequency can be monitored while pushing
[XFC] or using dualwatch.
ANT ANT
2.4k 2.4k
BW BW SFT SFT
1
VFO VFO
wq.wop.pp
METER METER
Po Po
1
SPLIT S P L I T
P.AMP P.AMP
1 VFO VFO
T X TX
wq.eqp.pp
ATT ATT
OFF OFF
1
r
Now you can receive on 21.290 MHz and transmit on
21.310 MHz.
To change the transmit and receive frequencies, push
[CHANGE] to exchange the main and sub readouts.
71
qw:pp
0
12:00
U S B U S B
FIL2 FIL2
USB USB
14.100.00 14.100.00
USB USB
FIL2 FIL2
USB USB
14.100.00 14.100.00
" appear
SPLIT SPLIT
qw:pp
0
12:00
U S B U S B FIL2 FIL2
14.100.00 14.100.00 USB USB
USB USB FIL2 FIL2
USB USB
14.100.00 14.100.00
qw:pp
0
12:00
U S B U S B FIL2 FIL2
14.100.00 14.100.00 USB USB
USB USB
FIL2 FIL2
USB USB
14.100.00 14.100.00
CONVENIENT
DIRECT SHIFT FREQUENCY INPUT
The shift frequency can be entered directly.
q Push [(F-INP)ENT].
w Enter the desired shift frequency with the digit
keys.
• 1 kHz to 1 MHz can be set.
• When you require a minus shift direction, push [ • ] in
advance.
e Push [SPLIT].
• The shift frequency is input in the sub readout and the
split function is turned ON.
[EXAMPLE]
To operate on 1 kHz
F-INP
higher frequency:
To operate on 3 kHz
F-INP
lower frequency:
CONVENIENT
DUALWATCH FUNCTION
The dualwatch function is convenient for tuning the
transmit frequency while monitoring both frequencies
used for transmitting and receiving.
CONVENIENT
SPLIT LOCK FUNCTION
Accidentally releasing the [XFC] switch while rotating
the tuning dial changes the receive frequency. To pre-
vent this, use both the split lock and dial lock func-
tions to change the transmit frequency only. The split
lock function cancels the dial lock function while push-
ing [XFC] during split frequency operation.
The dial lock's effectiveness during split frequency op-
eration can be selected in the set mode for both re-
ceive and transmit frequencies; or only the receive
frequency. (p. 100)
[SPLIT] [(F-INP)ENT]
[CHANGE] [XFC]
1 SPLIT
ENT
• 3 SPLIT
ENT
