Voice Recorder Functions; Digital Voice Recorder - Icom IC-756PROIII Instruction Manual

7

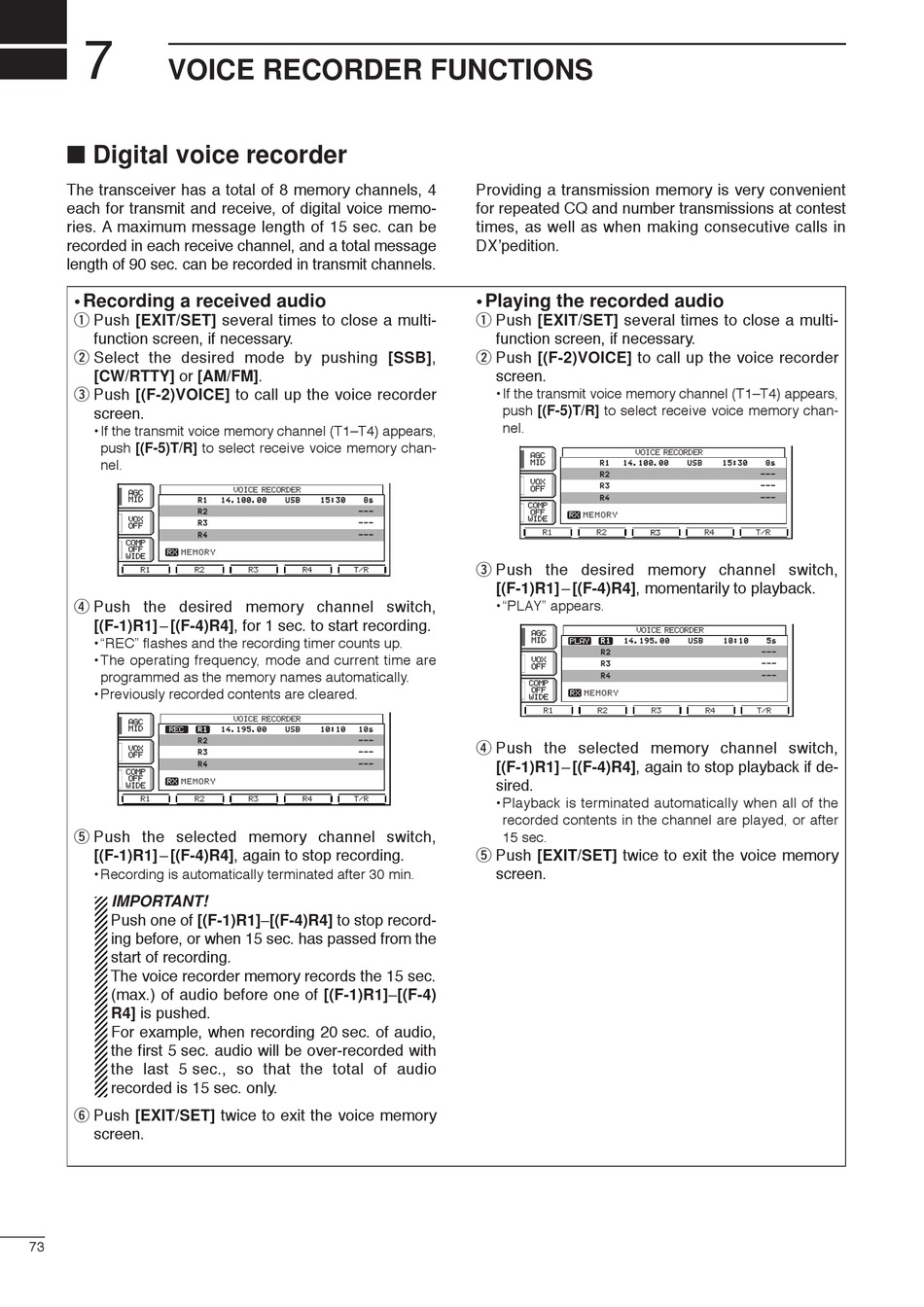

VOICE RECORDER FUNCTIONS

■ Digital voice recorder

The transceiver has a total of 8 memory channels, 4
each for transmit and receive, of digital voice memo-
ries. A maximum message length of 15 sec. can be
recorded in each receive channel, and a total message
length of 90 sec. can be recorded in transmit channels.
• Recording a received audio
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select the desired mode by pushing [SSB],
[CW/RTTY] or [AM/FM].
e Push [(F-2)VOICE] to call up the voice recorder
screen.
• If the transmit voice memory channel (T1–T4) appears,
push [(F-5)T/R] to select receive voice memory chan-
nel.
AGC AGC
MID MID R 1 R1
R 2 R2
VOX VOX
R3 R 3
OFF OFF
R4 R 4
COMP COMP
OFF OFF
R X RX M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2
r Push the desired memory channel switch,
[(F-1)R1] – [(F-4)R4], for 1 sec. to start recording.
• "REC" flashes and the recording timer counts up.
• The operating frequency, mode and current time are
programmed as the memory names automatically.
• Previously recorded contents are cleared.
AGC AGC
MID MID REC REC R1 R 1
R2 R 2
VOX VOX
R 3 R3
OFF OFF
R4 R 4
COMP COMP
OFF OFF
RX R X M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2
t Push the selected memory channel switch,
[(F-1)R1] – [(F-4)R4], again to stop recording.
• Recording is automatically terminated after 30 min.
IMPORTANT!
Push one of [(F-1)R1]–[(F-4)R4] to stop record-
ing before, or when 15 sec. has passed from the
start of recording.
The voice recorder memory records the 15 sec.
(max.) of audio before one of [(F-1)R1]–[(F-4)
R4] is pushed.
For example, when recording 20 sec. of audio,
the first 5 sec. audio will be over-recorded with
the last 5 sec., so that the total of audio
recorded is 15 sec. only.
y Push [EXIT/SET] twice to exit the voice memory
screen.
73
VOICE RECORDER VOICE RECORDER
14.100.00 1 4 . 1 0 0 . 0 0 USB U S B 1 5 : 3 0 15:30 8 s 8s
- - - ---
- - - ---
--- - - -
R3 R3 R4 R4 T/R T/R
VOICE RECORDER VOICE RECORDER
1 4 . 1 9 5 . 0 0 14.195.00 U S B USB 10:10 1 0 : 1 0 1 0 s 10s
--- - - -
- - - ---
--- - - -
R3 R3 R4 R4 T/R T/R
Providing a transmission memory is very convenient
for repeated CQ and number transmissions at contest
times, as well as when making consecutive calls in
DX'pedition.
• Playing the recorded audio
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [(F-2)VOICE] to call up the voice recorder
screen.
• If the transmit voice memory channel (T1–T4) appears,
push [(F-5)T/R] to select receive voice memory chan-
nel.
VOICE RECORDER VOICE RECORDER
AGC AGC
MID MID R1 R 1 1 4 . 1 0 0 . 0 0 14.100.00
R2 R 2
VOX VOX
R3 R 3
OFF OFF
R4 R 4
COMP COMP
OFF OFF
R X RX M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2
e Push the desired memory channel switch,
[(F-1)R1] – [(F-4)R4], momentarily to playback.
• "PLAY" appears.
VOICE RECORDER VOICE RECORDER
AGC AGC
MID MID PLAY PLAY R 1 R1 14.195.00 1 4 . 1 9 5 . 0 0
R 2 R2
VOX VOX
R 3 R3
OFF OFF
R 4 R4
COMP COMP
OFF OFF
RX R X M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2
r Push the selected memory channel switch,
[(F-1)R1] – [(F-4)R4], again to stop playback if de-
sired.
• Playback is terminated automatically when all of the
recorded contents in the channel are played, or after
15 sec.
t Push [EXIT/SET] twice to exit the voice memory
screen.
USB U S B 15:30 1 5 : 3 0 8 s 8s
--- - - -
--- - - -
- - - ---
R3 R4 R4 T/R T/R
U S B USB 10:10 1 0 : 1 0 5 s 5s
--- - - -
--- - - -
--- - - -
R3 R3 R4 R4 T/R T/R
