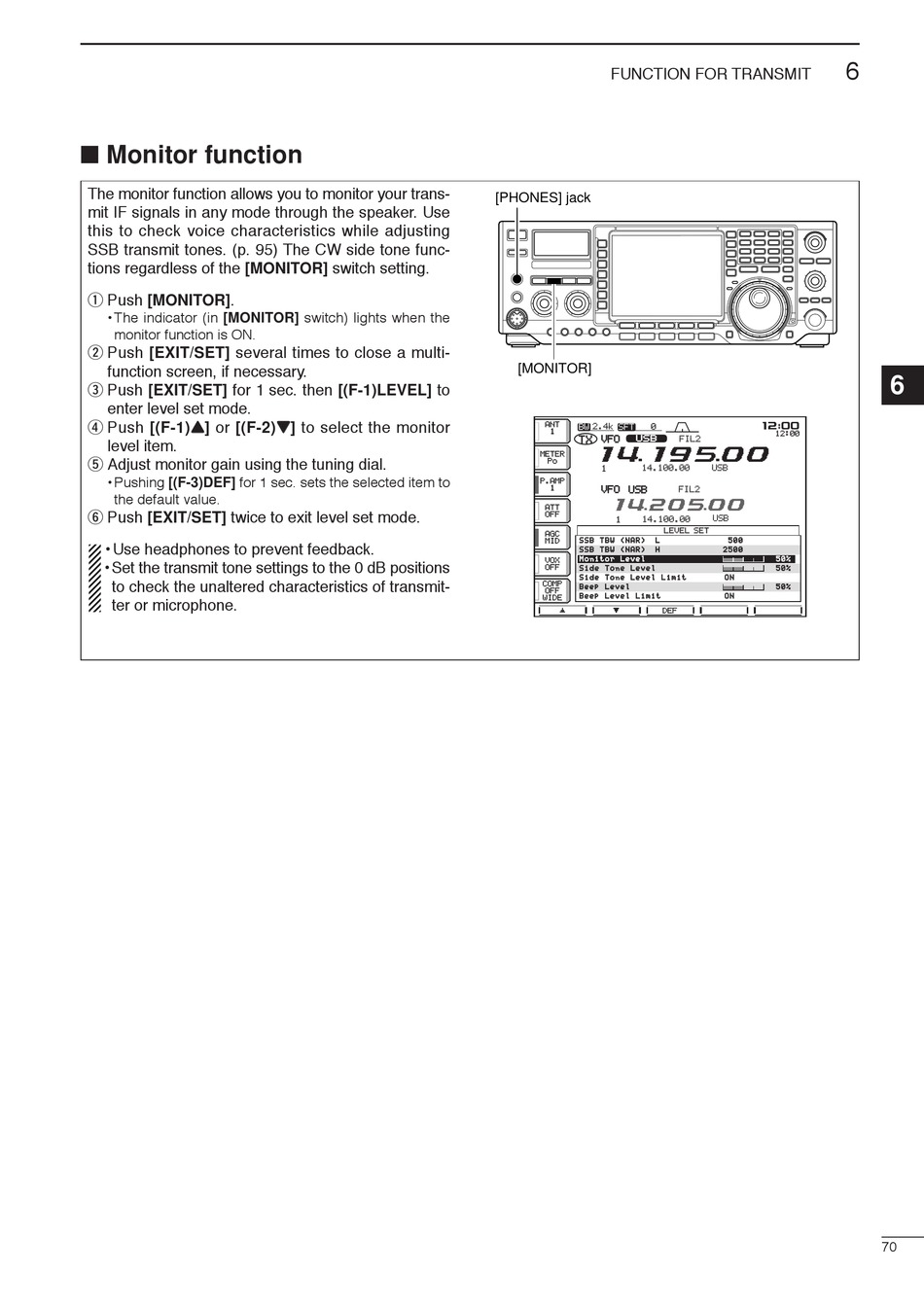

■ Monitor function

The monitor function allows you to monitor your trans-
mit IF signals in any mode through the speaker. Use
this to check voice characteristics while adjusting
SSB transmit tones. (p. 95) The CW side tone func-
tions regardless of the [MONITOR] switch setting.
q Push [MONITOR].
• The indicator (in [MONITOR] switch) lights when the
monitor function is ON.
w Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
e Push [EXIT/SET] for 1 sec. then [(F-1)LEVEL] to
enter level set mode.
r Push [(F-1)Y Y ] or [(F-2)Z Z ] to select the monitor
level item.
t Adjust monitor gain using the tuning dial.
• Pushing [(F-3)DEF] for 1 sec. sets the selected item to
the default value.
y Push [EXIT/SET] twice to exit level set mode.
• Use headphones to prevent feedback.
• Set the transmit tone settings to the 0 dB positions
to check the unaltered characteristics of transmit-
ter or microphone.
FUNCTION FOR TRANSMIT
[PHONES] jack
[MONITOR]
ANT ANT
2.4k 2.4k
BW BW SFT SFT 0
1
T X TX VFO VFO U S B U S B
qr.qot.pp
METER METER
Po Po
14.100.00 14.100.00
1
P.AMP P.AMP
1 VFO VFO
USB USB
qr.wpt.pp
ATT ATT
OFF OFF
1 14.100.00 14.100.00
LE VE L SE T
AGC AGC
SS B T BW ( NAR) L
MID MID
SS B T BW ( NAR) H
Mo nito r L evel
VOX VOX
OFF OFF Si de Tone Le vel
Si de Tone Le vel Lim it
COMP COMP
Be ep Leve l
OFF OFF
Be ep Leve l L imit
WIDE WIDE
é è
DEF
6
qw:pp
12:00
FIL2 FIL2
USB USB
FIL2 FIL2
USB USB
500
25 00
50%
50%
ON
50%
ON
6
70
