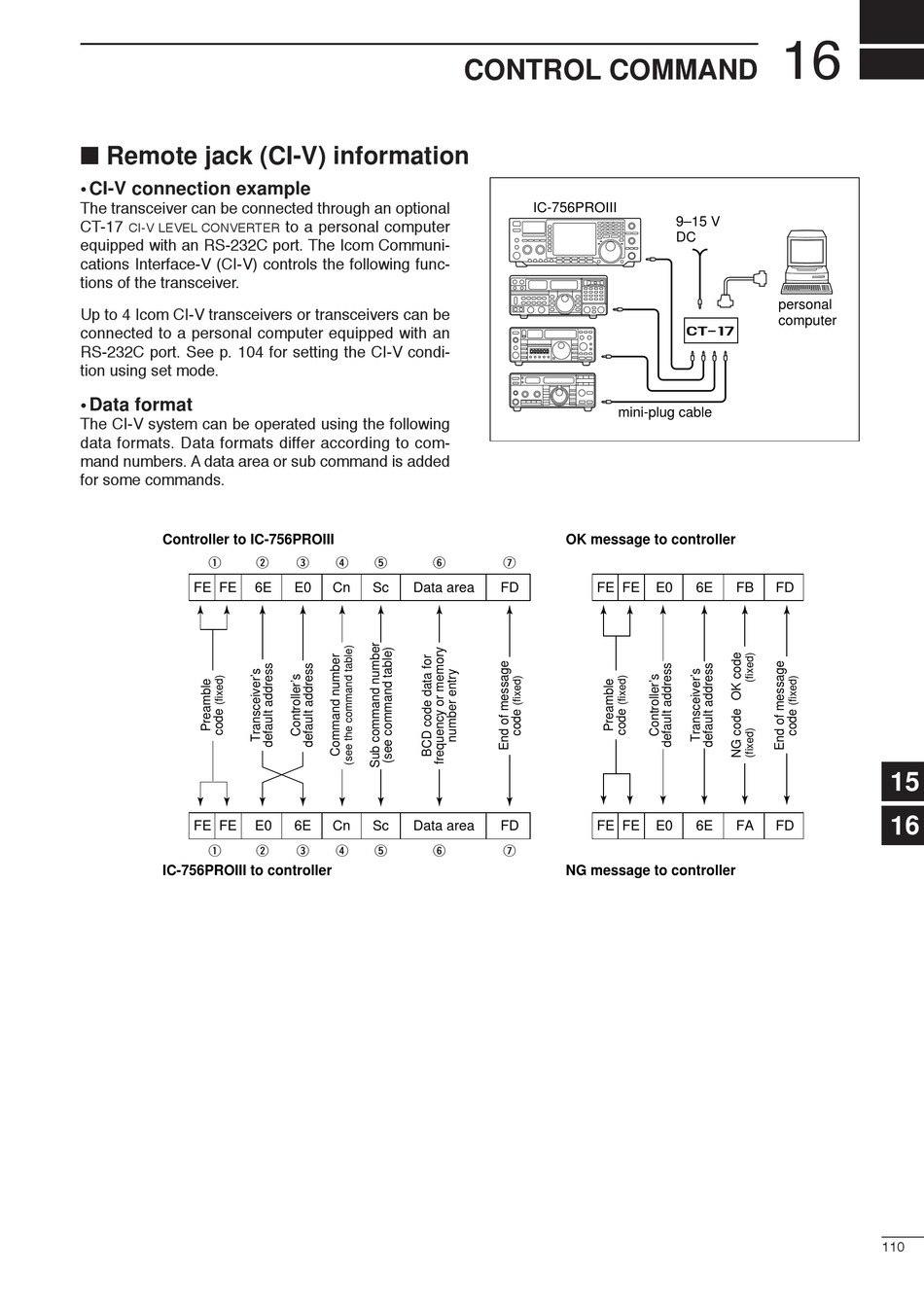

■ Remote jack (CI-V) information

• CI-V connection example
The transceiver can be connected through an optional
CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or transceivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 104 for setting the CI-V condi-
tion using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
Controller to IC-756PROIII
q
FE FE
FE FE
q
IC-756PROIII to controller
to a personal computer
w e r t
6E E0 Cn Sc Data area
E0 6E Cn Sc Data area
w e r t

CONTROL COMMAND

IC-756PROIII
OK message to controller
y u
FD FE FE
FD FE FE
y u
NG message to controller
16
9–15 V
DC
personal
computer
ct- 17
mini-plug cable
E0 6E FB FD
E0 6E FA FD
15
16
110
