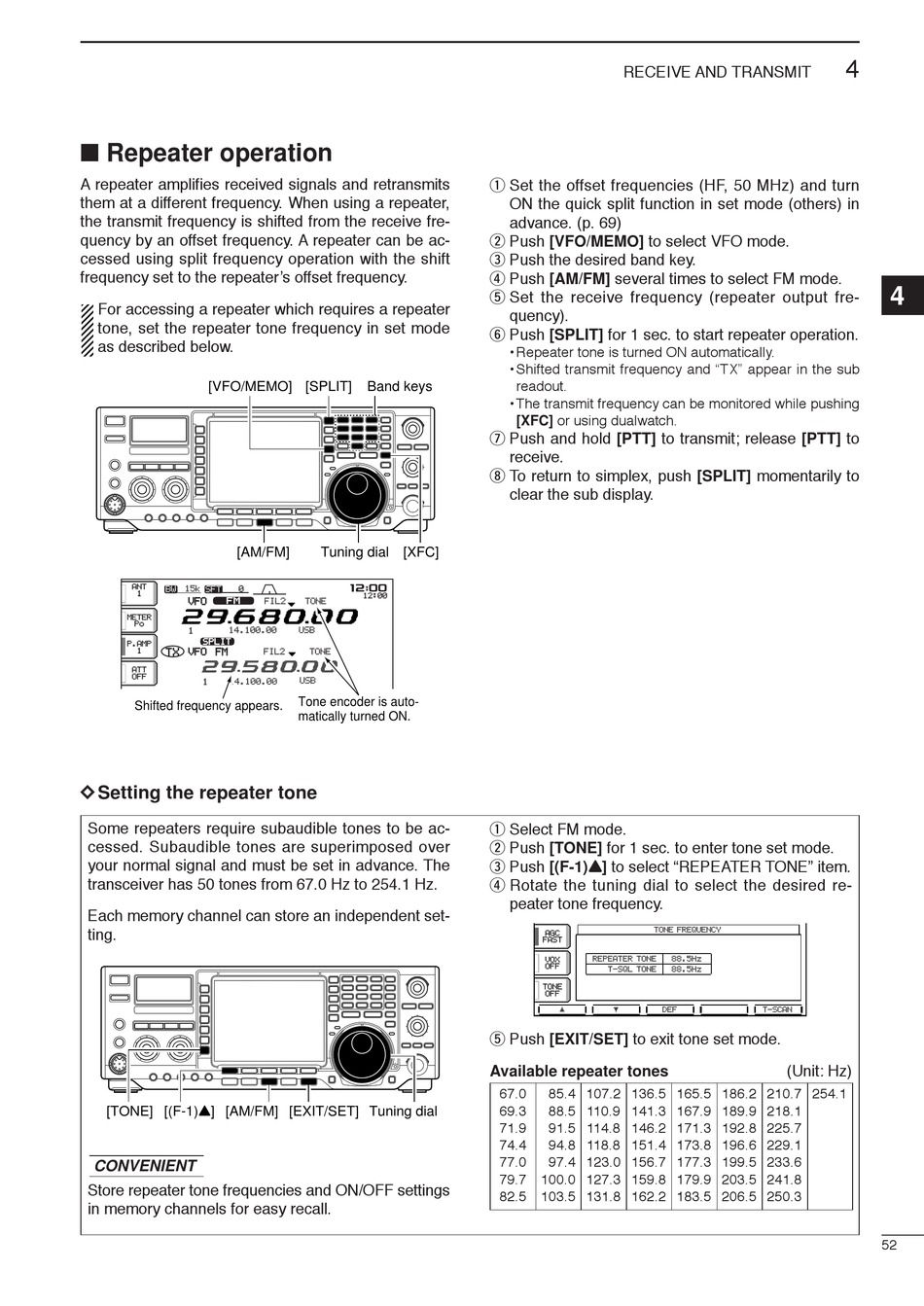

■ Repeater operation

A repeater amplifies received signals and retransmits
them at a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by an offset frequency. A repeater can be ac-
cessed using split frequency operation with the shift
frequency set to the repeater's offset frequency.
For accessing a repeater which requires a repeater
tone, set the repeater tone frequency in set mode
as described below.
[VFO/MEMO] [SPLIT]
[AM/FM]
ANT ANT
15k 15k 0
BW BW SFT SFT
1
VFO VFO F M F M
wo.yip.pp
METER METER
Po Po
1 14.100.00 14.100.00
S P L I T SPLIT
P.AMP P.AMP
1 VFO VFO FM FM
TX T X
wo.tip.pp
ATT ATT
OFF OFF
1 14.100.00 14.100.00
Shifted frequency appears.
D D Setting the repeater tone
Some repeaters require subaudible tones to be ac-
cessed. Subaudible tones are superimposed over
your normal signal and must be set in advance. The
transceiver has 50 tones from 67.0 Hz to 254.1 Hz.
Each memory channel can store an independent set-
ting.
[TONE] [(F-1)Y] [AM/FM]
CONVENIENT
Store repeater tone frequencies and ON/OFF settings
in memory channels for easy recall.
Band keys
Tuning dial [XFC]
qw:pp
12:00
FIL2 FIL2 TONE TONE
USB USB
FIL2 FIL2 TONE TONE
USB USB
Tone encoder is auto-
matically turned ON.
[EXIT/SET] Tuning dial
RECEIVE AND TRANSMIT
q Set the offset frequencies (HF, 50 MHz) and turn
ON the quick split function in set mode (others) in
advance. (p. 69)
w Push [VFO/MEMO] to select VFO mode.
e Push the desired band key.
r Push [AM/FM] several times to select FM mode.
t Set the receive frequency (repeater output fre-
quency).
y Push [SPLIT] for 1 sec. to start repeater operation.
• Repeater tone is turned ON automatically.
• Shifted transmit frequency and "TX" appear in the sub
readout.
• The transmit frequency can be monitored while pushing
[XFC] or using dualwatch.
u Push and hold [PTT] to transmit; release [PTT] to
receive.
i To return to simplex, push [SPLIT] momentarily to
clear the sub display.
q Select FM mode.
w Push [TONE] for 1 sec. to enter tone set mode.
e Push [(F-1)Y Y ] to select "REPEATER TONE" item.
r Rotate the tuning dial to select the desired re-
peater tone frequency.
TONE FREQUENCY TONE FREQUENCY
AGC AGC
FAST FAST
REPEATER TONE REPEATER TONE
VOX VOX
OFF OFF
T-SQL TONE T-SQL TONE
TONE TONE
OFF OFF
é è DEF DEF
t Push [EXIT/SET] to exit tone set mode.
Available repeater tones
67.0 085.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
4
88.5Hz 88.5Hz
88.5Hz 88.5Hz
T-SCAN T-SCAN
(Unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
4
52
