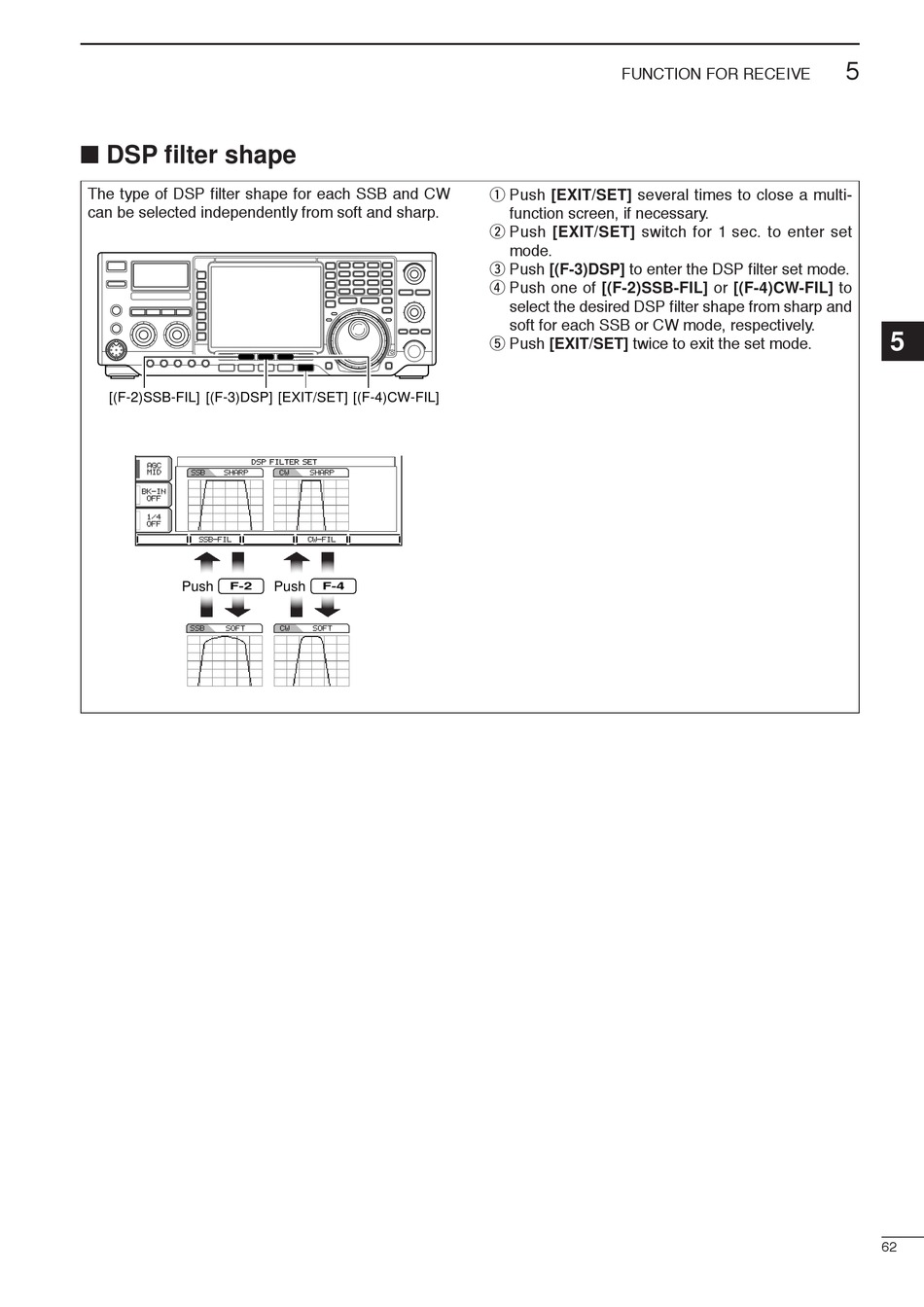

■ DSP filter shape
The type of DSP filter shape for each SSB and CW
can be selected independently from soft and sharp.
[(F-2)SSB-FIL] [(F-3)DSP]
DSP FILTER SET
AGC AGC
MID MID SSB SSB SHARP SHARP
BK-IN BK-IN
OFF OFF
1/4 1/4
OFF OFF
SSB-FIL SSB-FIL
Push
F-2
SSB SSB SOFT SOFT
[EXIT/SET] [(F-4)CW-FIL]
CW CW SHARP SHARP
CW-FIL CW-FIL
Push
F-4
CW CW SOFT SOFT
FUNCTION FOR RECEIVE
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [EXIT/SET] switch for 1 sec. to enter set
mode.
e Push [(F-3)DSP] to enter the DSP filter set mode.
r Push one of [(F-2)SSB-FIL] or [(F-4)CW-FIL] to
select the desired DSP filter shape from sharp and
soft for each SSB or CW mode, respectively.
t Push [EXIT/SET] twice to exit the set mode.
5
5
62
