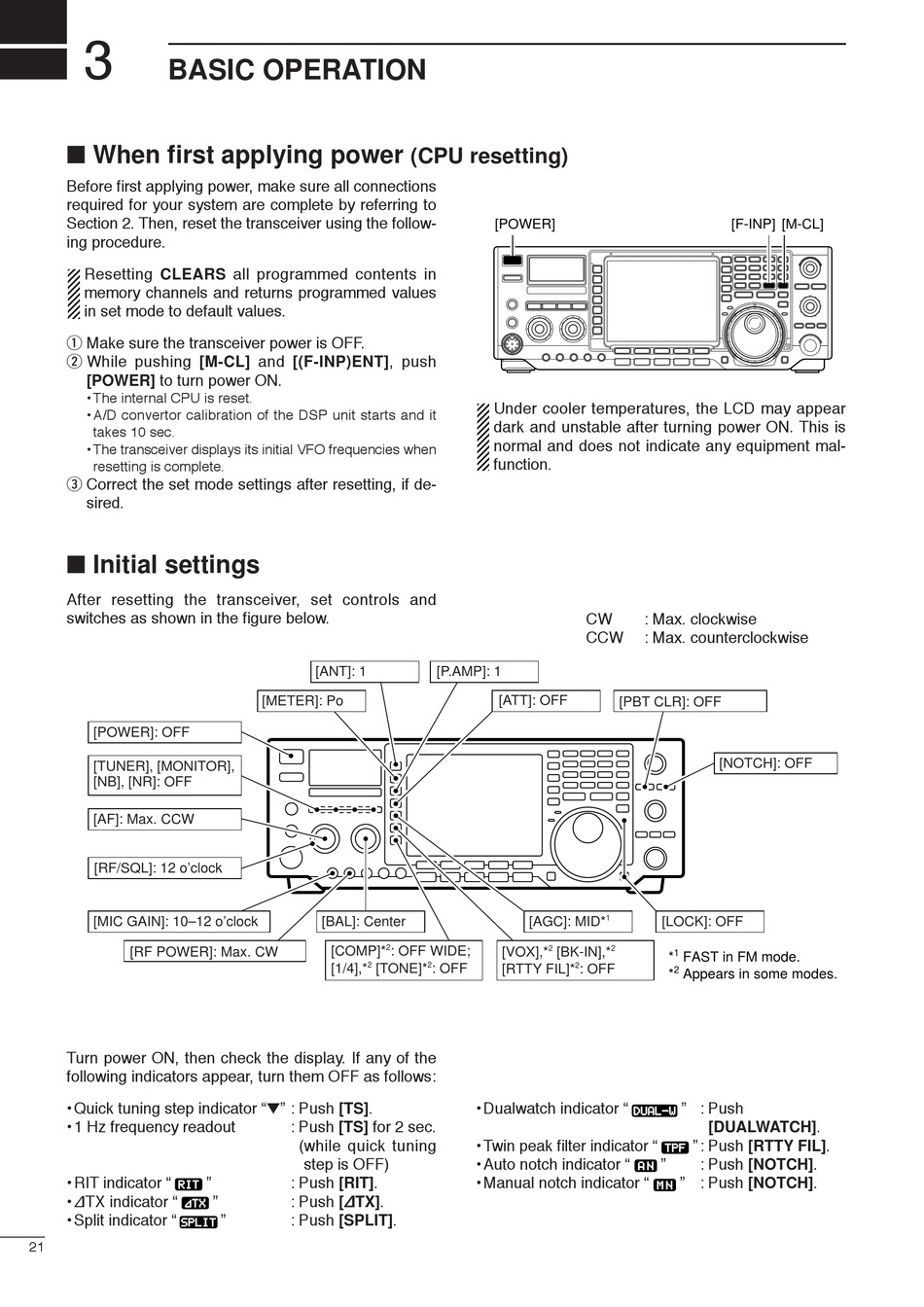

BASIC OPERATION

■ When first applying power
Before first applying power, make sure all connections
required for your system are complete by referring to
Section 2. Then, reset the transceiver using the follow-
ing procedure.
Resetting CLEARS all programmed contents in
memory channels and returns programmed values
in set mode to default values.
q Make sure the transceiver power is OFF.
w While pushing [M-CL] and [(F-INP)ENT], push
[POWER] to turn power ON.
• The internal CPU is reset.
• A/D convertor calibration of the DSP unit starts and it
takes 10 sec.
• The transceiver displays its initial VFO frequencies when
resetting is complete.
e Correct the set mode settings after resetting, if de-
sired.

■ Initial settings

After resetting the transceiver, set controls and
switches as shown in the figure below.
[POWER]: OFF
[TUNER], [MONITOR],
[NB], [NR]: OFF
[AF]: Max. CCW
[RF/SQL]: 12 o'clock
[MIC GAIN]: 10–12 o'clock
[RF POWER]: Max. CW
Turn power ON, then check the display. If any of the
following indicators appear, turn them OFF as follows:
• Quick tuning step indicator "▼" : Push [TS].
• 1 Hz frequency readout
• RIT indicator "
RIT RIT
• ∂TX indicator "
∂TX TX
• Split indicator "
SPLIT SPLIT
21
[ANT]: 1
[METER]: Po
[BAL]: Center
[COMP]*
2
[1/4],* [TONE]*
: Push [TS] for 2 sec.
(while quick tuning
step is OFF)
" : Push [RIT].
" : Push [∂ ∂ TX].
" : Push [SPLIT].

(CPU resetting)

[POWER]
