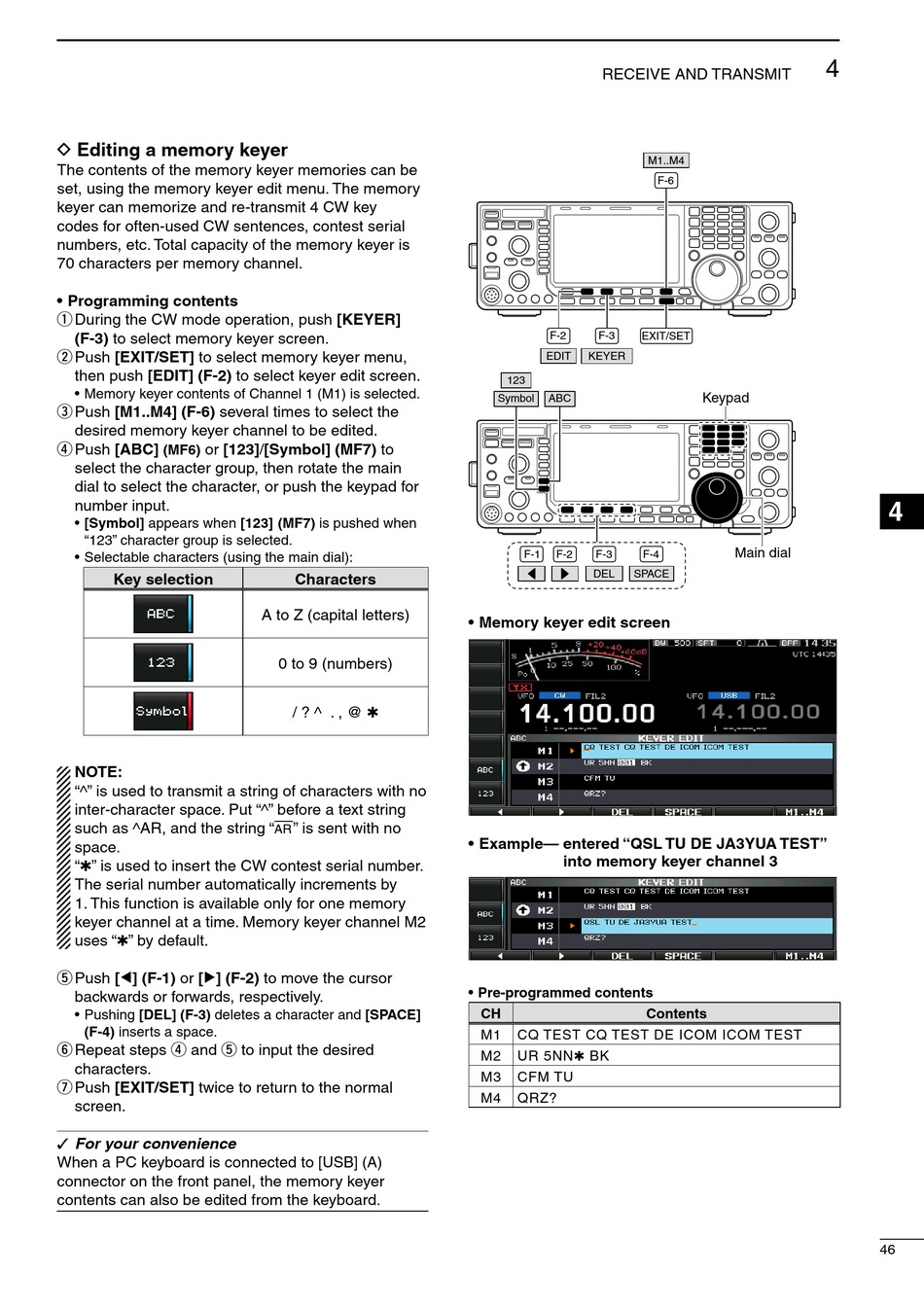

D Editing a memory keyer
The contents of the memory keyer memories can be
set, using the memory keyer edit menu. The memory
keyer can memorize and re-transmit 4 CW key
codes for often-used CW sentences, contest serial
numbers, etc. Total capacity of the memory keyer is
70 characters per memory channel.
• Programming contents
q During the CW mode operation, push [KEYER]
(F-3) to select memory keyer screen.
w Push [EXIT/SET] to select memory keyer menu,
then push [EDIT] (F-2) to select keyer edit screen.
• Memory keyer contents of Channel 1 (M1) is selected.
e Push [M1..M4] (F-6) several times to select the
desired memory keyer channel to be edited.
r Push [ABC] or [123]/[Symbol] (MF7) to
(MF6)
select the character group, then rotate the main
dial to select the character, or push the keypad for
number input.
• [Symbol] appears when [123] (MF7) is pushed when
"123" character group is selected.
• Selectable characters (using the main dial):
Key selection
NOTE:
"^" is used to transmit a string of characters with no
inter-character space. Put "^" before a text string
such as ^AR, and the string "
space.
"✱" is used to insert the CW contest serial number.
The serial number automatically increments by
1. This function is available only for one memory
keyer channel at a time. Memory keyer channel M2
uses "✱" by default.
t Push [Ω] (F-1) or [≈] (F-2) to move the cursor
backwards or forwards, respectively.
• Pushing [DEL] (F-3) deletes a character and [SPACE]
(F-4) inserts a space.
y Repeat steps r and t to input the desired
characters.
u Push [EXIT/SET] twice to return to the normal
screen.
For your convenience
✓
When a PC keyboard is connected to [USB] (A)
connector on the front panel, the memory keyer
contents can also be edited from the keyboard.
Characters
A to Z (capital letters)
0 to 9 (numbers)
/ ? ^ . , @ ✱
" is sent with no
ar
RECEIVE AND TRANSMIT
F-2 F-3
EXIT/SET
EDIT KEYER
123
Symbol ABC
F-1 F-2 F-3 F-4
DEL SPACE
• Memory keyer edit screen
• Example— entered "QSL TU DE JA3YUA TEST"
into memory keyer channel 3
• Pre-programmed contents
CH
M1 CQ TEST CQ TEST DE ICOM ICOM TEST
M2 UR 5NN✱ BK
M3 CFM TU
M4 QRZ?
M1..M4
F-6
Keypad
Main dial
Contents
