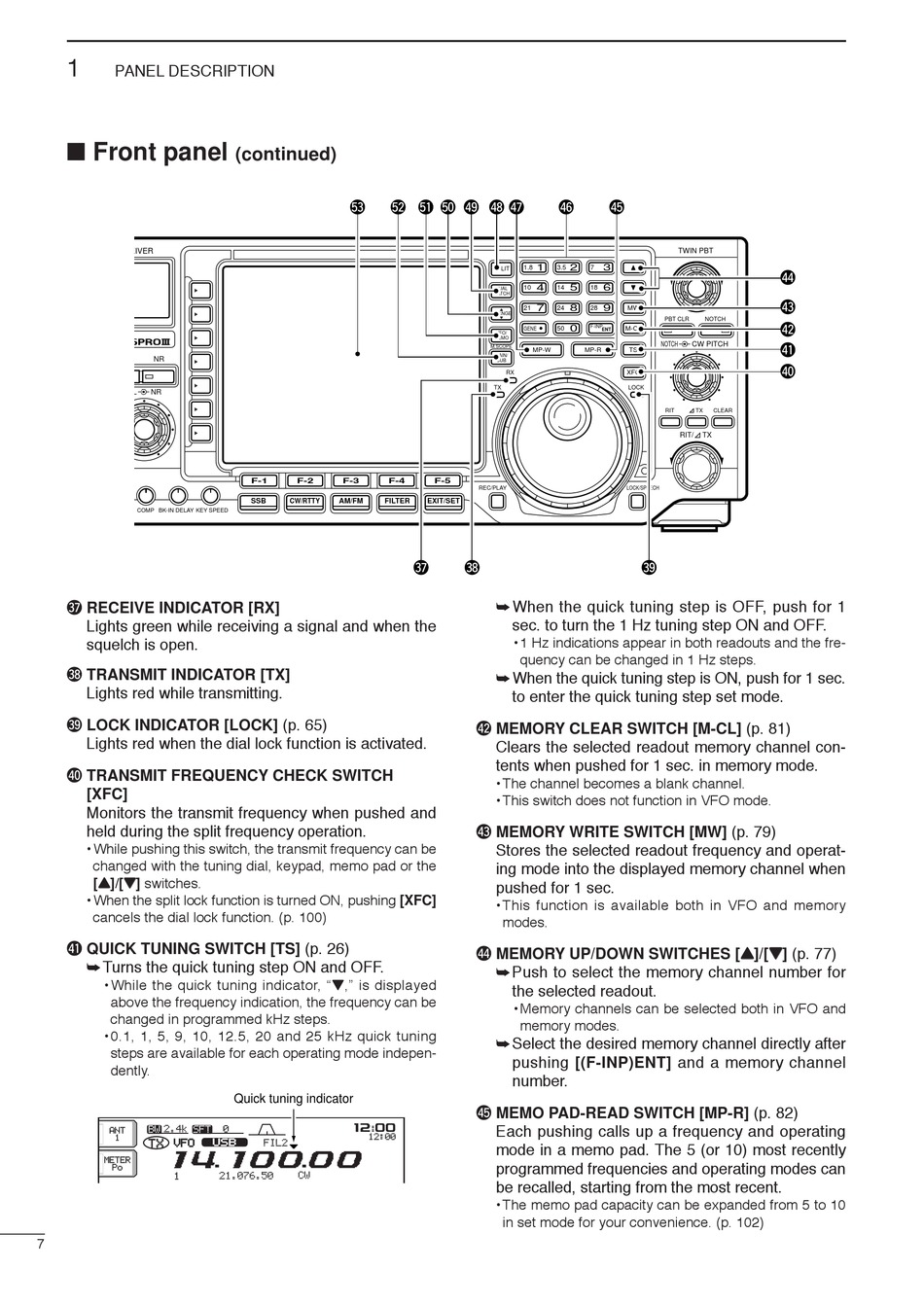

Icom IC-756PROIII Instruction Manual page 12

1
PANEL DESCRIPTION
■ Front panel
CEIVER
NB NR
BAL NR
COMP BK-IN DELAY KEY SPEED
#7 RECEIVE INDICATOR [RX]
Lights green while receiving a signal and when the
squelch is open.
#8 TRANSMIT INDICATOR [TX]
Lights red while transmitting.
#9 LOCK INDICATOR [LOCK] (p. 65)
Lights red when the dial lock function is activated.
$0 TRANSMIT FREQUENCY CHECK SWITCH
[XFC]
Monitors the transmit frequency when pushed and
held during the split frequency operation.
• While pushing this switch, the transmit frequency can be
changed with the tuning dial, keypad, memo pad or the
[Y Y ]/[Z Z ] switches.
• When the split lock function is turned ON, pushing [XFC]
cancels the dial lock function. (p. 100)
$1 QUICK TUNING SWITCH [TS] (p. 26)
➥ Turns the quick tuning step ON and OFF.
• While the quick tuning indicator, "Z," is displayed
above the frequency indication, the frequency can be
changed in programmed kHz steps.
• 0.1, 1, 5, 9, 10, 12.5, 20 and 25 kHz quick tuning
steps are available for each operating mode indepen-
dently.
2.4k 2.4k
BW BW SFT SFT
ANT
1
T X T X VFO VFO
qr.qpp.pp
METER
Po
1
7
(continued)
%3
F-1 F-2 F-3
SSB CW/RTTY AM/FM FILTER
Quick tuning indicator
qw:pp
0
12:00 12:00
U S B U S B
FIL2 FIL2
21.076.50 21.076.50 CW CW
%2 %1 %0 $9 $8 $7 $6
1
1.8 3.5
SPLIT
4
10 14
DUAL
WATCH
7
21 24
CHANGE
GENE 50
VFO/
MEMO
M.SCOPE
MP-W
MAIN/
SUB
RX
TX
F-4 F-5
REC/PLAY
EXIT/SET
#7 #8
➥ When the quick tuning step is OFF, push for 1
sec. to turn the 1 Hz tuning step ON and OFF.
• 1 Hz indications appear in both readouts and the fre-
quency can be changed in 1 Hz steps.
➥ When the quick tuning step is ON, push for 1 sec.
to enter the quick tuning step set mode.
$2 MEMORY CLEAR SWITCH [M-CL] (p. 81)
Clears the selected readout memory channel con-
tents when pushed for 1 sec. in memory mode.
• The channel becomes a blank channel.
• This switch does not function in VFO mode.
$3 MEMORY WRITE SWITCH [MW] (p. 79)
Stores the selected readout frequency and operat-
ing mode into the displayed memory channel when
pushed for 1 sec.
• This function is available both in VFO and memory
modes.
$4 MEMORY UP/DOWN SWITCHES [Y Y ]/[Z Z ] (p. 77)
➥ Push to select the memory channel number for
the selected readout.
• Memory channels can be selected both in VFO and
memory modes.
➥ Select the desired memory channel directly after
pushing [(F-INP)ENT] and a memory channel
number.
$5 MEMO PAD-READ SWITCH [MP-R] (p. 82)
Each pushing calls up a frequency and operating
mode in a memo pad. The 5 (or 10) most recently
programmed frequencies and operating modes can
be recalled, starting from the most recent.
• The memo pad capacity can be expanded from 5 to 10
in set mode for your convenience. (p. 102)
$5
TWIN PBT
2 3
7 Y
5 6
18 Z
8 9
28 MW
PBT CLR NOTCH
F-INP
0
M-CL
ENT
NOTCH CW PITCH
MP-R TS
XFC
LOCK
RIT TX CLEAR
RIT/ TX
LOCK/SPEECH
#9
$4
$3
$2
$1
$0
