Figure 14. Using The Set Media Size Command To Specify The Physical Medium - Printronix S828 Programmer's Manual

Programmer Manual
Refer to your printer's Administrators Manual for information on setting operator media size input.

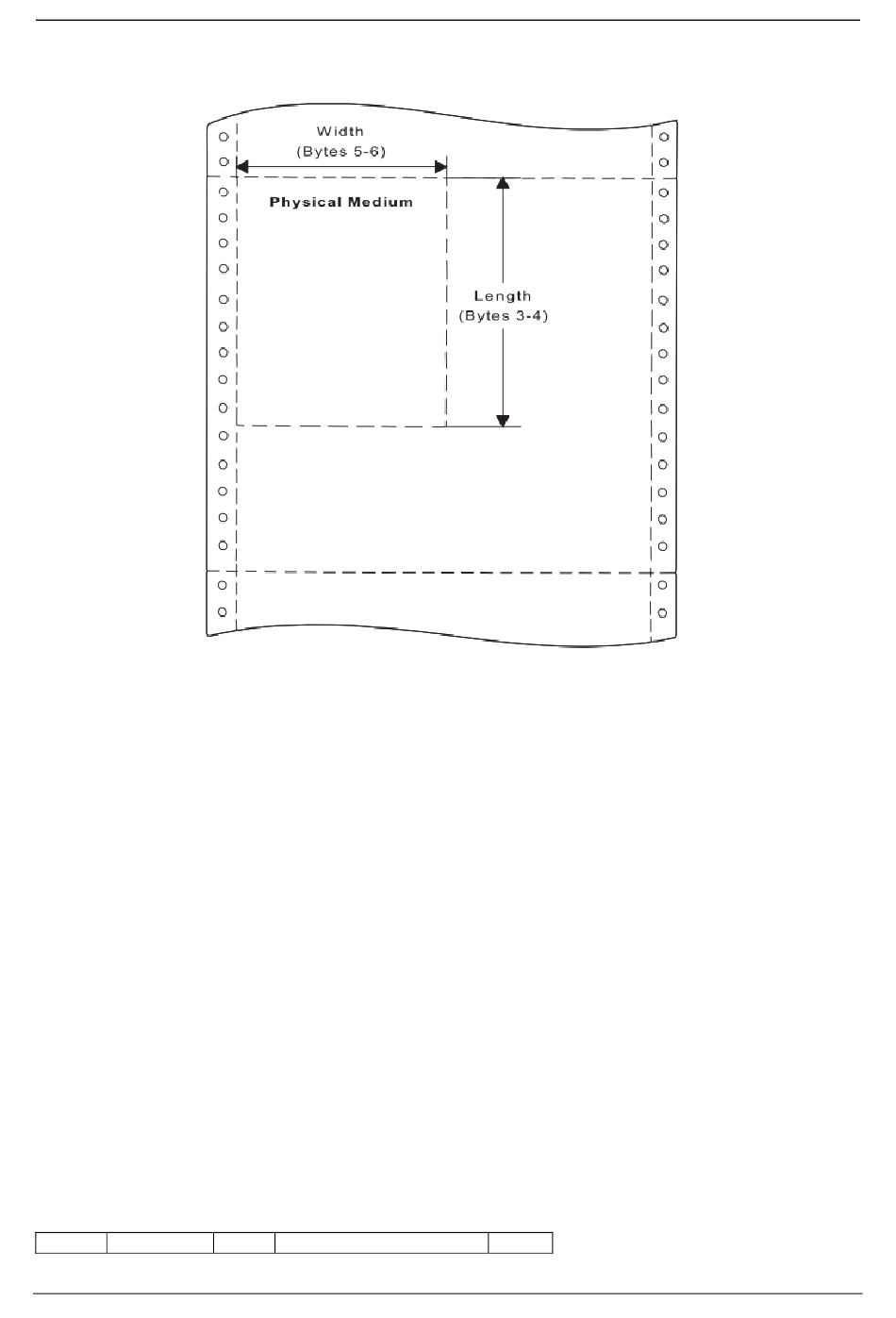

Figure 14. Using the Set Media Size Command to Specify the Physical Medium

The data field for the Set Media Size subcommand has the following format:
Decimal Hex
0 0
1-2 1-2
3-4 3-4
5-6 5-6
Obtain Printer Characteristics (OPC)
This subcommand is a host request for information about the current printer environment characteristics.
The printer responds by placing the requested information in the Special Data (SD)area of a subsequent
Acknowledge Reply. The printer reply is a series of self-defining fields describing the printer
characteristics. The OPC data is returned in more than one response buffer. The self-defining fields
contain specific information about the printer characteristics. If the ARQ flag was not set on for the XOH
command containing this order, then this order is equivalent to a No Operation.
Acknowledge Reply for Obtain Printer Characteristics:
Length D6FF
Chapter 5 IPDS Programming Information
Value
00
01
5A0-7FFF
1626-7FFF
000A-4A40
FFF
000A-7FFF
FFFF
Flag Correlation ID (Optional)
Description
Unit Base (10 in.)
Unit Base (10 cm.)
Units per Base Value (per 10 in.)
Units per Base Value (per 10 cm)
X-Extent of the Physical Medium in Units
Use Current MPP
Y-Extent of the Physical Medium in Units
Use Current MPL
